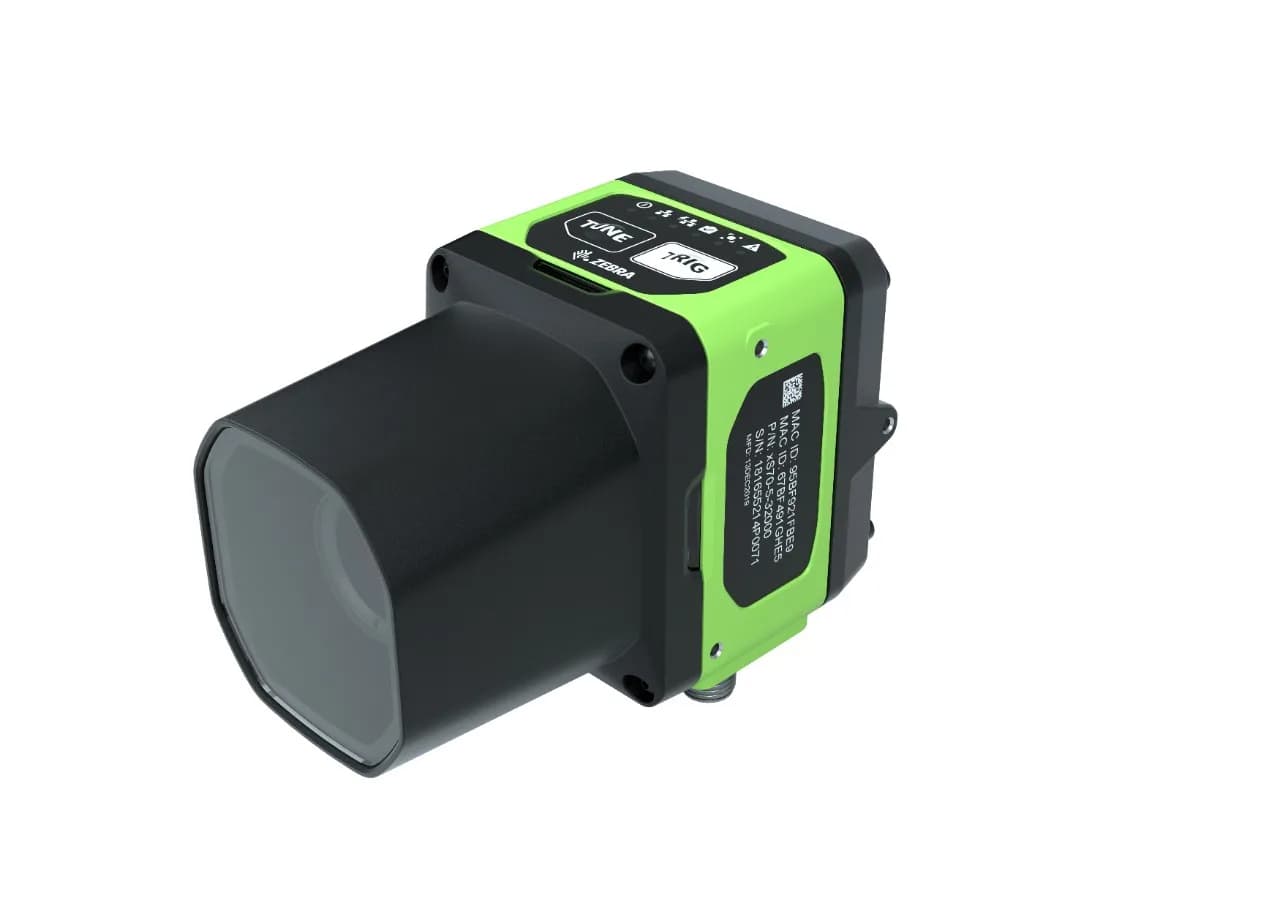

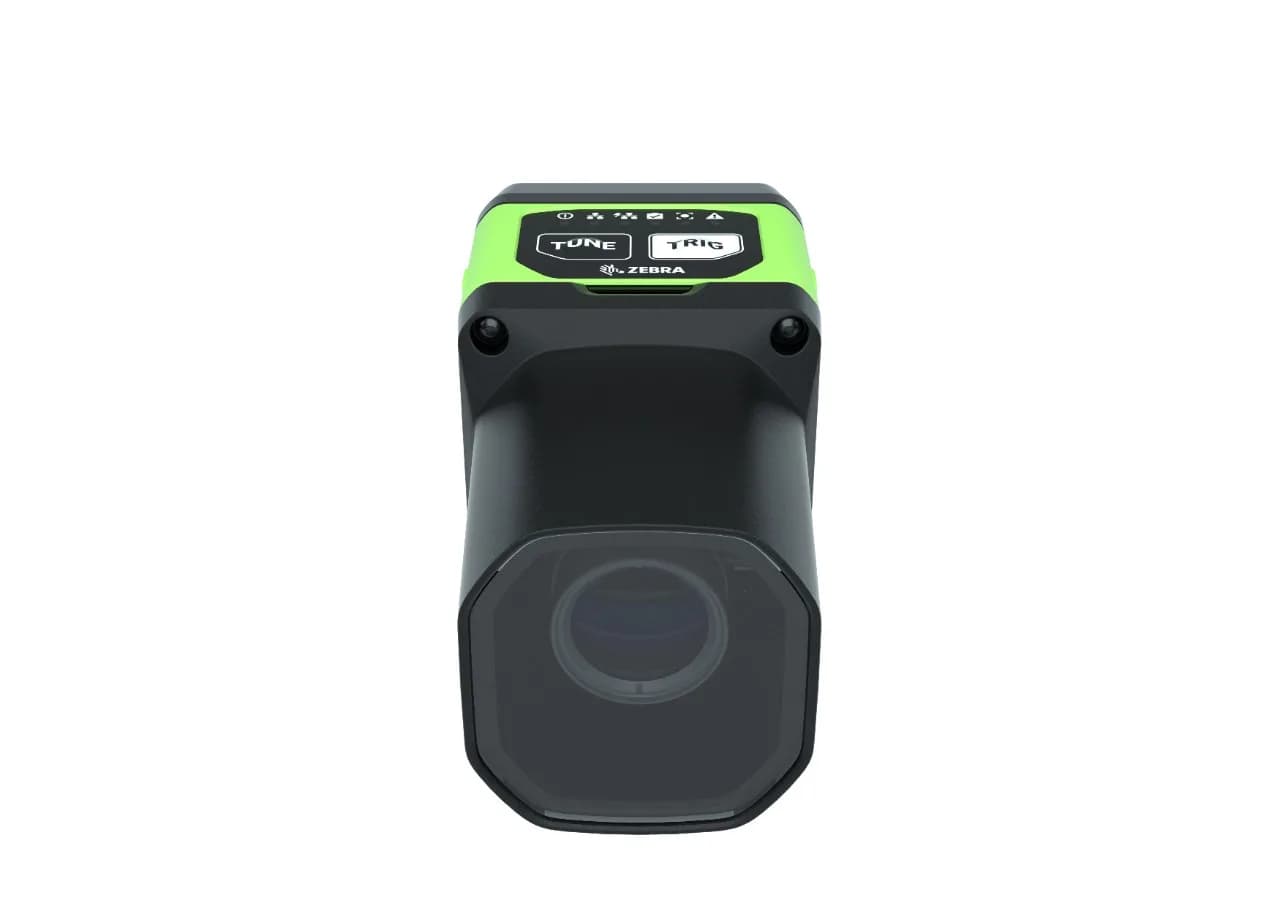

Zebra VS series · Mid range
VS70
C-mount machine vision smart camera with Sensor, Standard or Advanced toolsets that uses external lens and lighting for precise inspection.
VS70 is a machine vision smart camera that uses an external lens and lighting for precision; with Sensor, Standard or Advanced toolsets it handles inspection and PLC-controlled track-and-trace reading. It can be fully customized to specific quality inspection needs and supports any standard C-mount lens, filter and external lighting. It offers dual Ethernet, ImagePerfect+ and Auto-Tune, and is set up with Zebra Aurora.
Variants
- Sensor: 2.3 MP or 5.1 MP
- Ethernet: single or dual port
- Machine vision toolset by SKU: Sensor, Standard or Advanced
- Sensor
- 2.3 MP global shutter, up to 60 fps, or 5.1 MP rolling shutter, up to 30 fps; monochrome
- Resolution
- 2.3 MP: 1920 x 1200; 5.1 MP: 2592 x 1952
- Optics
- C-mount; field of view depends on lens selection
- Illumination
- Supports many standard external lighting systems on 24 V DC
- Inspection features
- All toolsets: locate object, pixel counter, brightness, contrast, edge, distance; Standard and Advanced: advanced pattern, blob, OCV, circle find, diameter measurement, filters, 1D/2D/DPM reading; Advanced only: DL-OCR; DL-OCR with license
- Interfaces

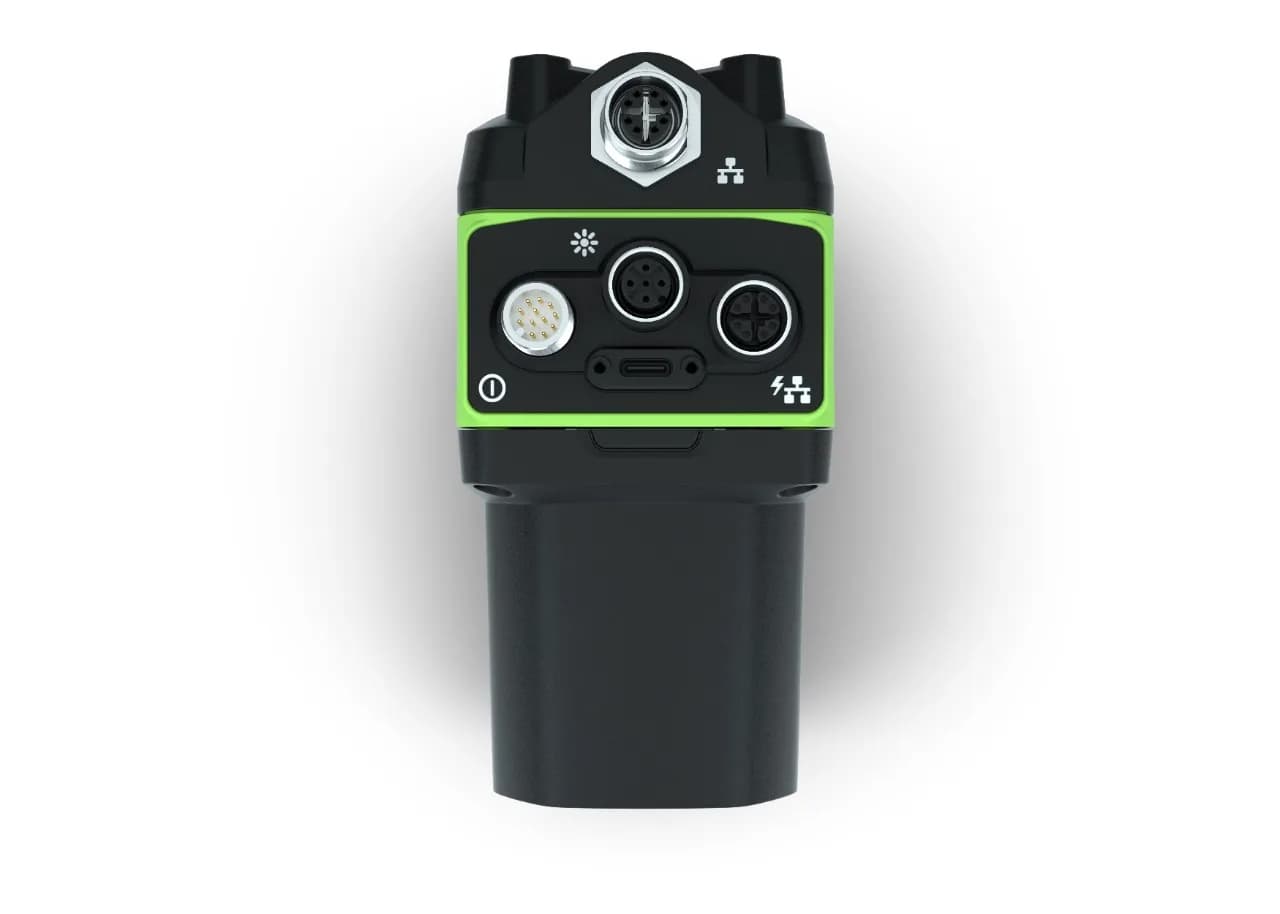

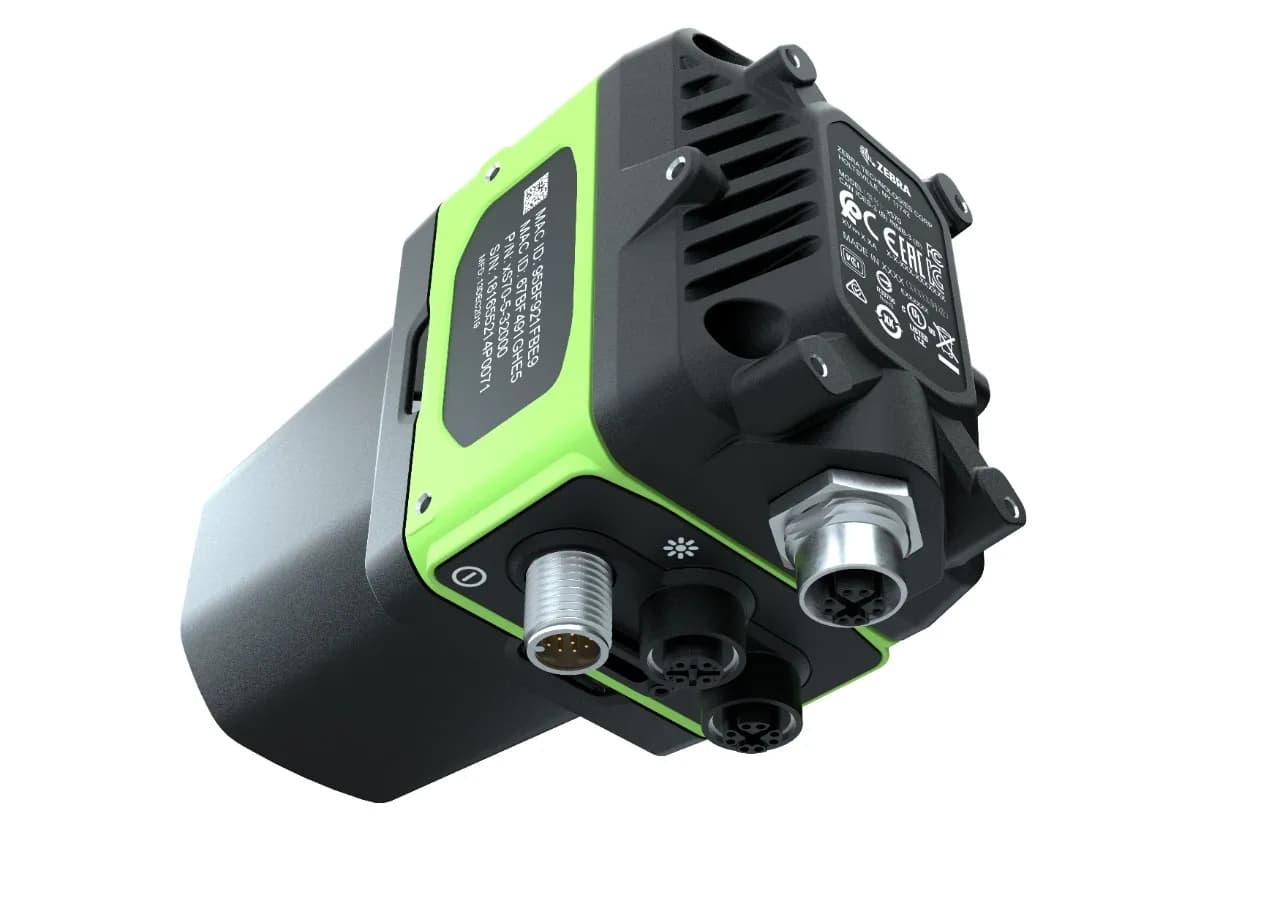

- 1 or 2 M12 X-coded Ethernet; M12 12-pin power/GPIO/RS-232; M12 5-pin external light/GPIO; USB 3.0 Type-C; Ethernet/IP, PROFINET, Modbus TCP, TCP/IP, RS-232; GPIO: 4 opto-isolated + 5 non-isolated
- Software
- Zebra Aurora
- Protection
- IP65 and IP67
- Operating temperature
- 0 °C to 45 °C (external power)
- Dimensions and weight
- 63 x 95 x 65 mm; 650 g
- Warranty
- 2 years
- Accessories
- C-mount lenses and filters, lens covers, external lighting, brackets, cables, power supplies
More views
Pricing
For enterprise hardware, price depends on quantity, configuration and service package. Add it to your quote list and we'll price it the same business day.
Use cases
- Custom quality inspections
- Applications that need wide-angle, zoom or special lenses
- PLC-controlled track and trace
- 1D/2D/DPM code reading
Not the right fit for
- Not suited to use without adding a lens and lighting; a C-mount lens and external lighting are required.
- The 5.1 MP model is not suited to fast-moving objects; it uses a rolling shutter and captures up to 30 fps.
- Not suited to environments below 0 °C or above 45 °C.
