Zebra FS series · Premium

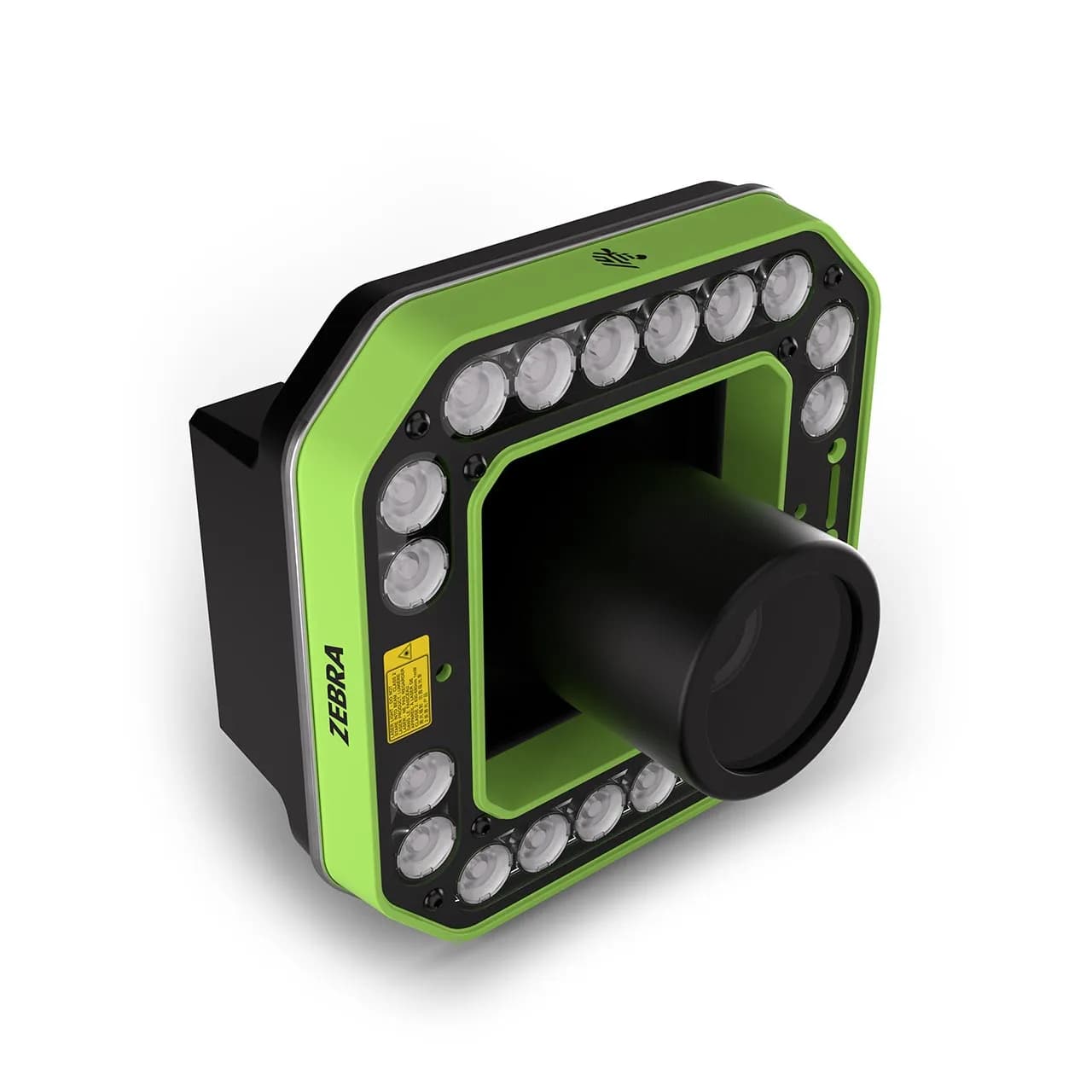

FS80
Fixed industrial scanner with high-resolution sensors and powerful integrated LED lighting that quickly captures any barcode over wide areas and long distances.
FS80 is a fixed industrial scanner that captures barcodes of every type, size and quality quickly and accurately across wide areas and long distances. It is designed for logistics, warehouse and distribution center operations as well as manufacturing traceability. Its multi-function integrated LED light (MFIL) can replace several standard cameras. It features an IP67 housing, M12 connectors and C-mount lenses with dust- and liquid-tight covers.
Variants
- 5 MP: 5.3 MP, up to 42 fps
- 9 MP: 8.8 MP, up to 40 fps
- 12 MP: 12.6 MP, up to 28 fps
- 16 MP: up to 22 fps
- Sensor
- 5, 9, 12 or 16 MP global shutter, 3.2 x 3.2 µm pixel, monochrome; 22–42 fps (by model)
- Optics
- C-mount lens; polarizer cover
- Illumination
- Zebra integrated multi-function light (accessory) or external lighting
- Symbologies
- 1D/2D symbologies (same list as FS series); SKU-dependent DL-OCR; machine vision tools with license
- Interfaces
- M12 X-coded 1 GbE; M12-A 12-pin power and GPIO; M12-A 12-pin VGA/USB (service); TCP/IP (Ethernet/IP, PROFINET and Modbus TCP coming soon); 3 opto-coupled inputs (incremental encoder support), 1 trigger input, 3 opto-coupled outputs
- Power
- 15 W (625 mA at 24 V DC)
- Software
- Zebra Aurora Focus, JavaScript; decoder packs: Standard (5 fps), Fast and DPM (sensor's max fps); 32 GB eMMC
- Protection
- IP67
- Operating temperature
- 0 °C to 45 °C; humidity up to 99% (non-condensing)
- Dimensions and weight
- With lens cover 75 x 120 x 75 mm, 504 g; without cover 75 x 57 x 75 mm, 407 g
- Warranty
- 2 years
- Accessories
- Zebra integrated multi-function light, external lighting, polarizer cover, C-mount lenses, lens filters, brackets, cables, power supplies
Pricing
For enterprise hardware, price depends on quantity, configuration and service package. Add it to your quote list and we'll price it the same business day.
Use cases
- Scan tunnels
- Dock door reading
- Forklift reading
- Product picking
- Print-and-apply verification
- Distribution center operations
- Manufacturing traceability
Not the right fit for
- Not suited to PLC integrations that need Ethernet/IP or PROFINET today; these protocols are announced as coming soon.
- Not suited to applications that need color images; FS80 sensors are monochrome.
- Not suited to environments below 0 °C or above 45 °C.
