Zebra FS series · Mid range

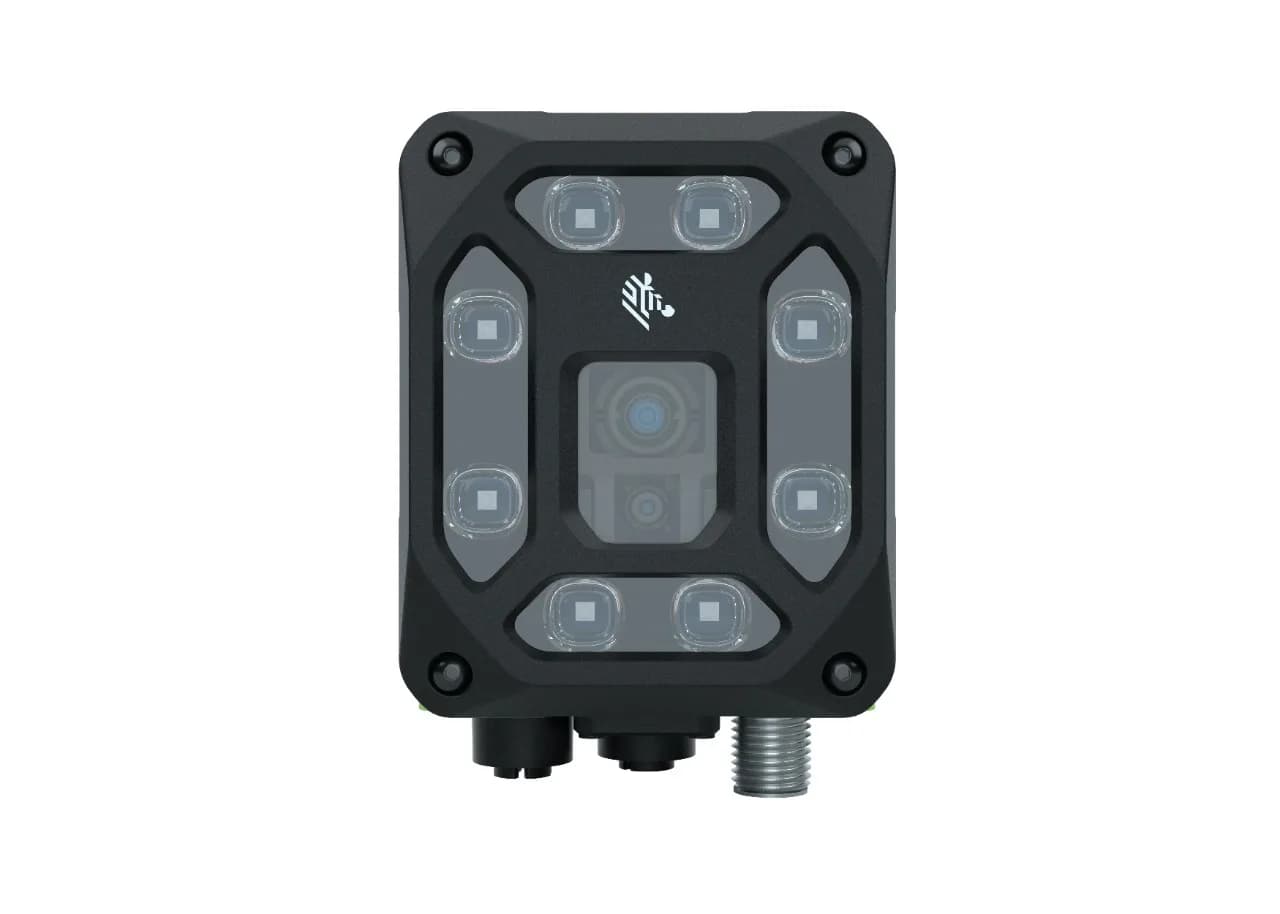

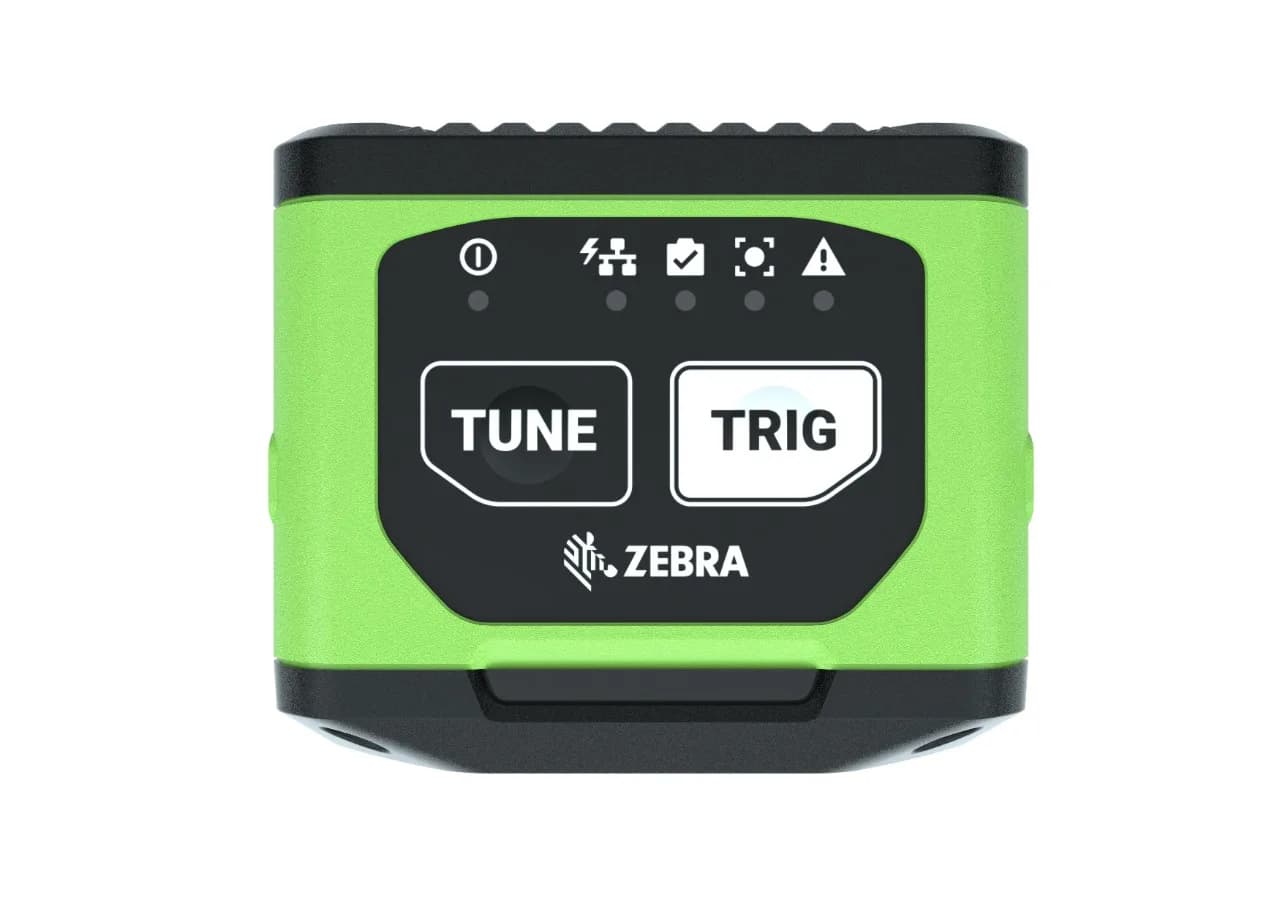

FS40
Fixed industrial scanner for PLC-controlled track and trace with powerful built-in lighting, power for peripherals and an upgrade path to machine vision.
FS40 is a fixed industrial scanner that delivers comprehensive industrial data capture in a single device. Auto-Tune sets it up at the push of a button, and ImagePerfect+ captures up to 16 images with different settings. It can be expanded via PoE and USB-C. With a software license it converts into the VS40 machine vision smart camera.
Variants
- SR lens: 10.8 mm Liquid Lens, 30° x 19°
- WA lens: 6.8 mm Liquid Lens, 46° x 29°
- Sensor: 2.3 MP or 5.1 MP
- Ethernet: single or dual port
- Sensor
- 2.3 MP global shutter, up to 60 fps, or 5.1 MP rolling shutter, up to 30 fps; monochrome
- Resolution
- 2.3 MP: 1920 x 1200; 5.1 MP: 2592 x 1952
- Optics
- SR (10.8 mm Liquid Lens, 30° x 19°) or WA (6.8 mm Liquid Lens, 46° x 29°)
- Illumination
- Field-replaceable modules: 8 x 660 nm red, 8 x 470 nm blue, 8 x 850 nm IR, 8 x 2700 K white or mixed; red Class II laser aimer (8-dot pattern)
- Symbologies
- 1D/2D symbologies (same list as FS10); DL-OCR with license
- Read range
- SR, 20 mil Code 128: 8–234 cm
- Machine vision
- Sensor, Standard and Advanced tools (with license)
- Interfaces
- 1 or 2 M12 X-coded 10/100/1000 Ethernet; M12 12-pin power/GPIO/RS-232; M12 5-pin external light/GPIO; USB 3.0 Type-C (DisplayPort Alt Mode); Ethernet/IP, PROFINET, Modbus TCP, TCP/IP, RS-232; GPIO: 4 opto-isolated + 5 non-isolated
- Power
- 10–30 V DC (max. 36 W), PoE+ Class 4 (25.5 W), PoE Class 3 (13 W)
- Software
- Zebra Aurora; decoder packs 5 or 60 FPS
- Protection
- IP65 and IP67
- Operating temperature
- 0 °C to 45 °C (external power); 0 °C to 40 °C (PoE)
- Dimensions and weight
- 54 x 64 x 91.4 mm; 400 g
- Warranty
- 2 years
- Accessories
- Internal and external lighting, internal filters, brackets, cables, power supplies

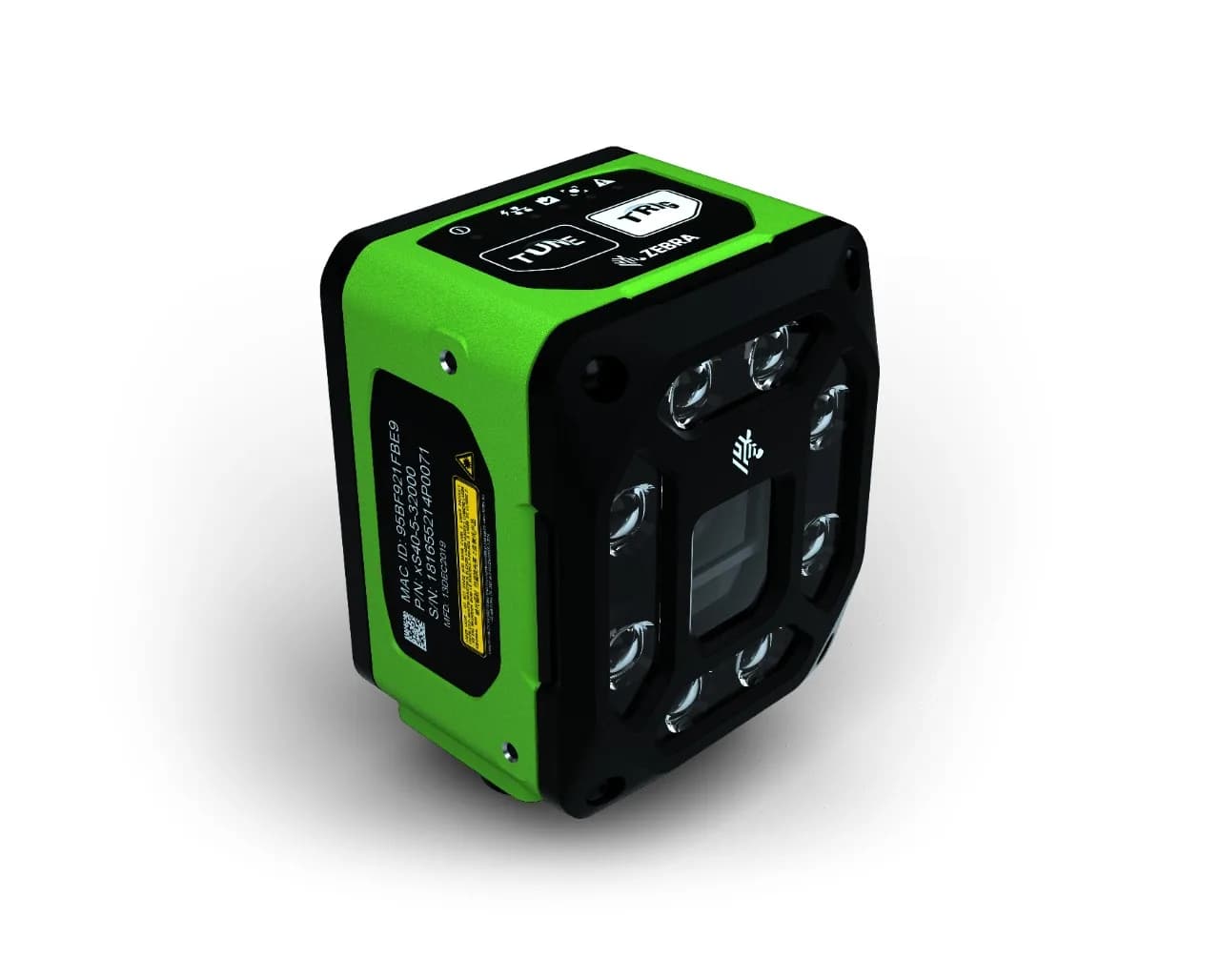

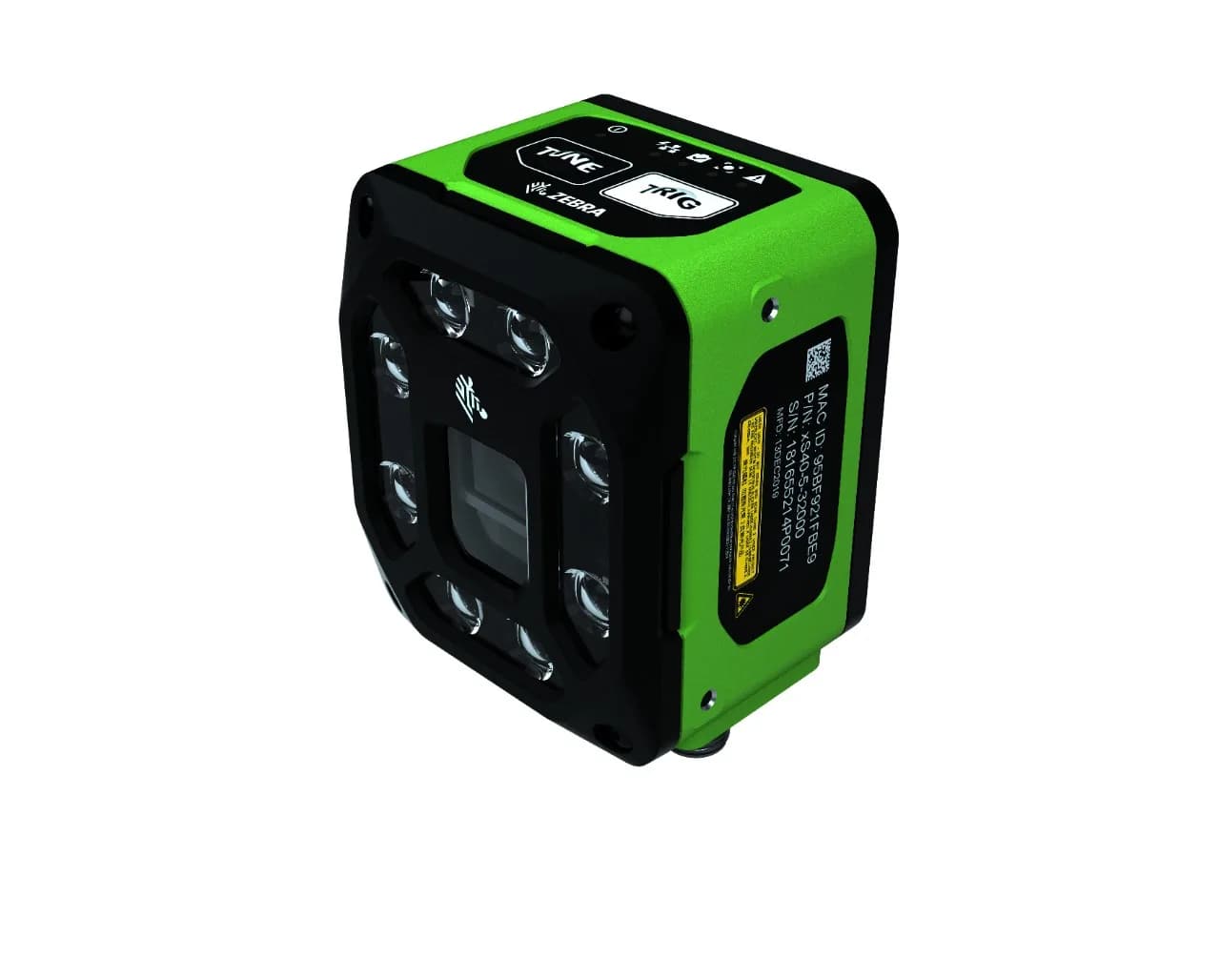

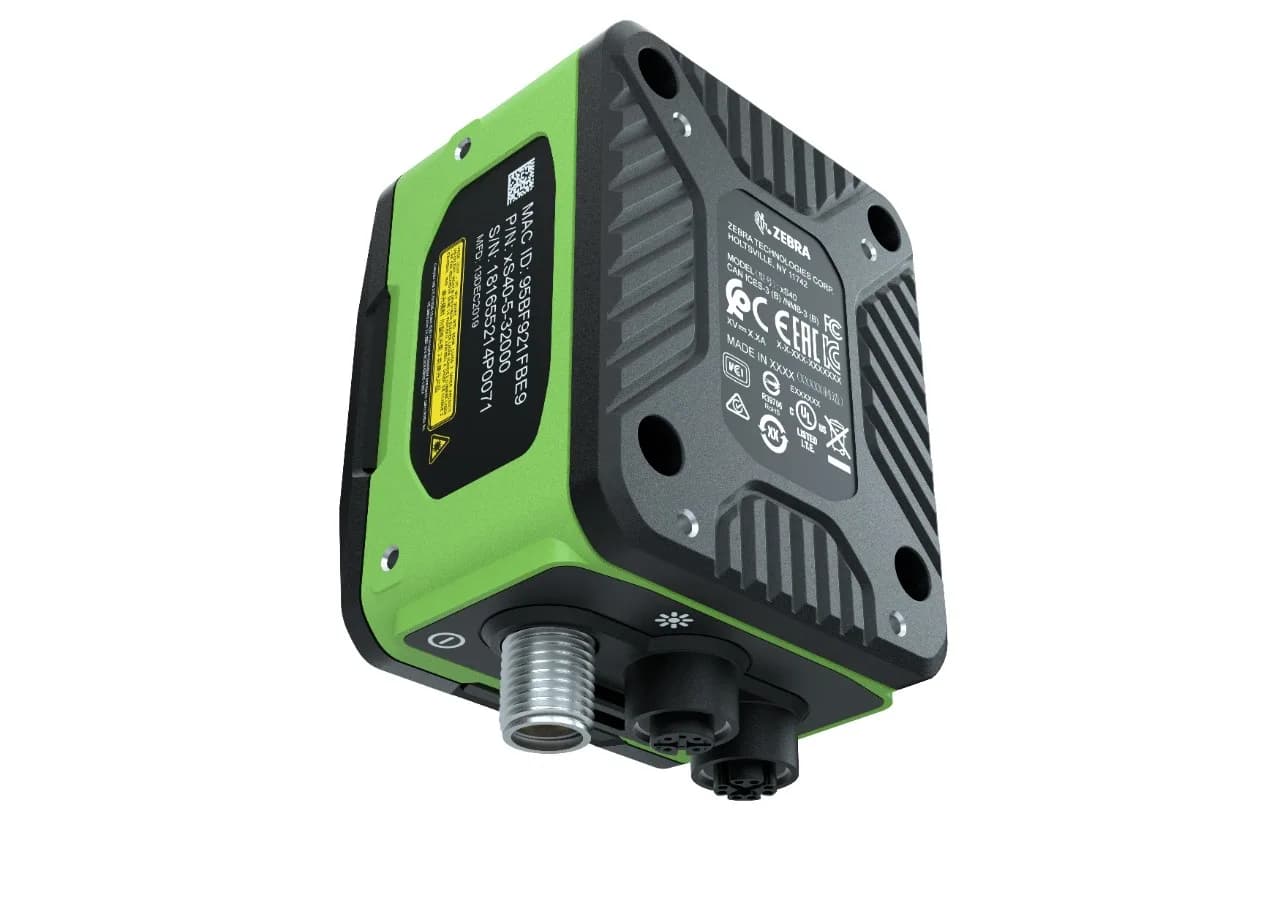

More views
Pricing
For enterprise hardware, price depends on quantity, configuration and service package. Add it to your quote list and we'll price it the same business day.
Use cases
- PLC-controlled track and trace
- 1D/2D barcode reading on conveyors
- DPM reading on curved and reflective surfaces
- Production line traceability
- Upgrade to machine vision inspection via license
Not the right fit for
- Not suited to applications that need an interchangeable C-mount lens; FS40 has a fixed Liquid Lens, choose FS70 for C-mount.
- Not suited to environments below 0 °C or above 45 °C.
- The 5.1 MP model is not suited to fast-moving objects; it uses a rolling shutter and captures up to 30 fps.
