Zebra FS series · Mid range

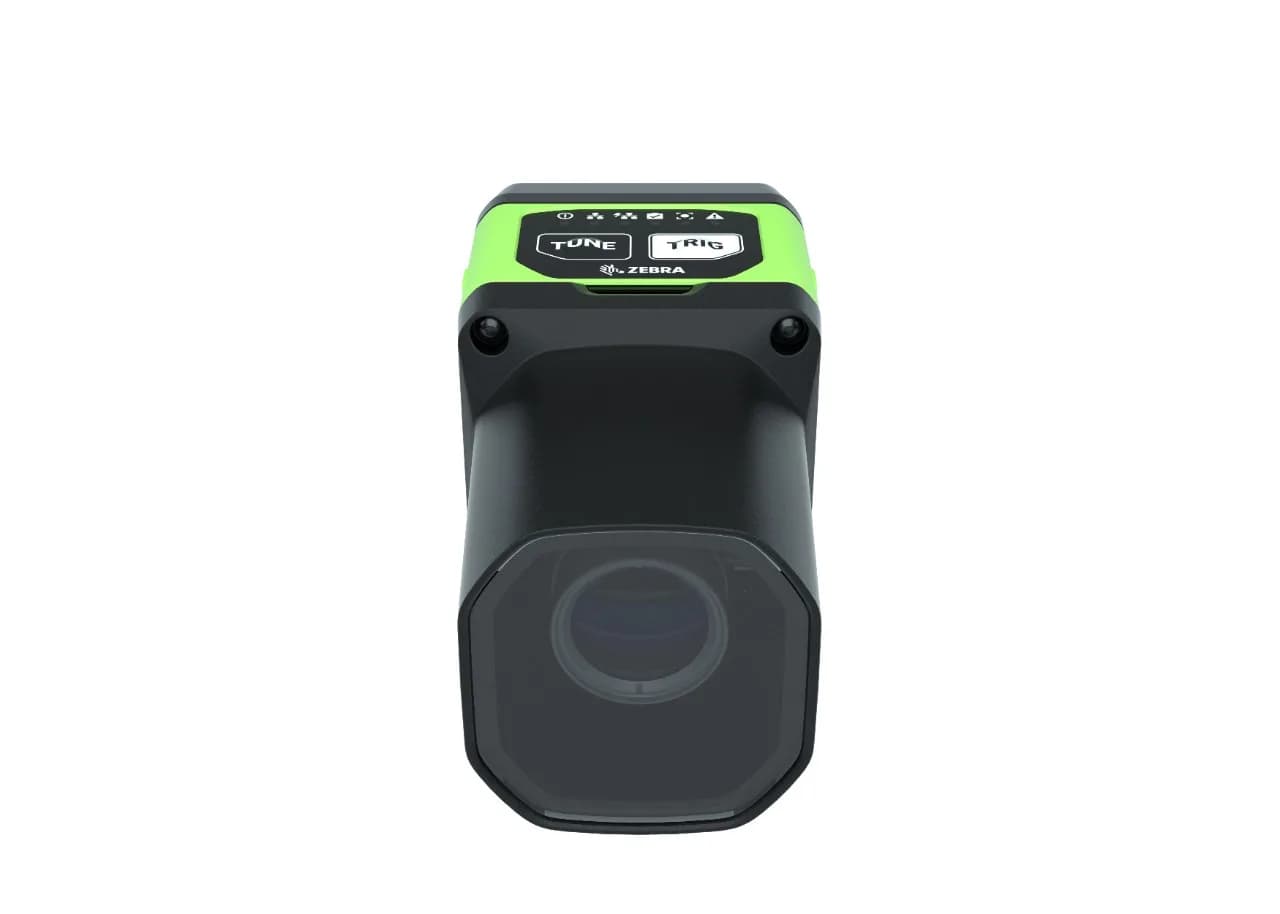

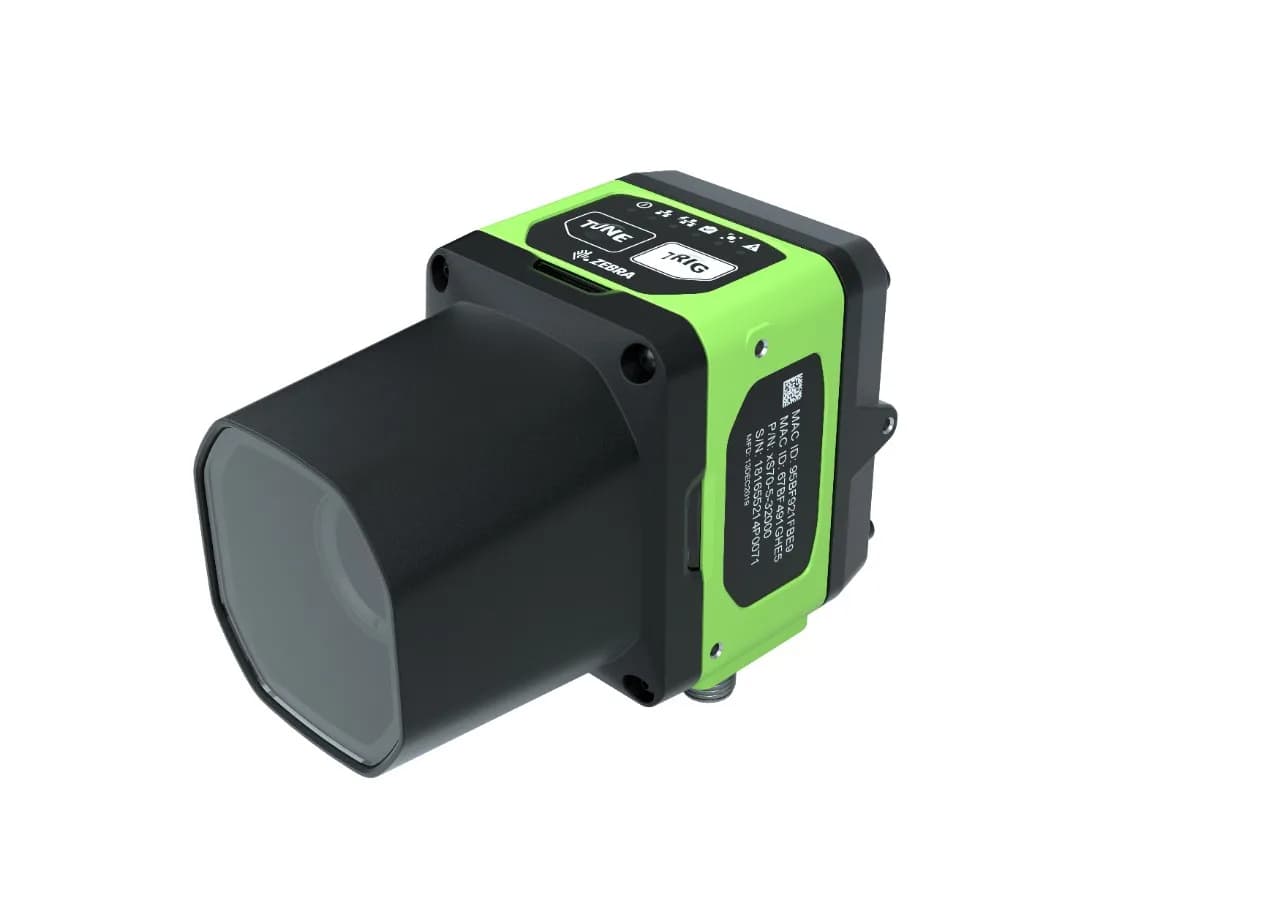

FS70
Fixed industrial scanner with full control via C-mount lens and external lighting, power for peripherals and an upgrade path to machine vision.
FS70 is a fixed industrial scanner that can be fully customized to unique reading needs. A C-mount lens and external lighting give you complete control over data capture. Dual Ethernet lets you isolate the inspection network. With a software license it converts into the VS70 machine vision smart camera.
Variants
- Sensor: 2.3 MP or 5.1 MP
- Ethernet: single or dual port
- Lens: depends on the C-mount lens chosen
- Sensor
- 2.3 MP global shutter, up to 60 fps, or 5.1 MP rolling shutter, up to 30 fps; monochrome
- Resolution
- 2.3 MP: 1920 x 1200; 5.1 MP: 2592 x 1952
- Optics
- C-mount lens; field of view depends on lens selection
- Illumination
- No internal lighting; supports many standard external lighting systems on 24 V DC
- Symbologies
- 1D/2D symbologies; DL-OCR with license
- Machine vision
- Sensor, Standard and Advanced tools (with license)

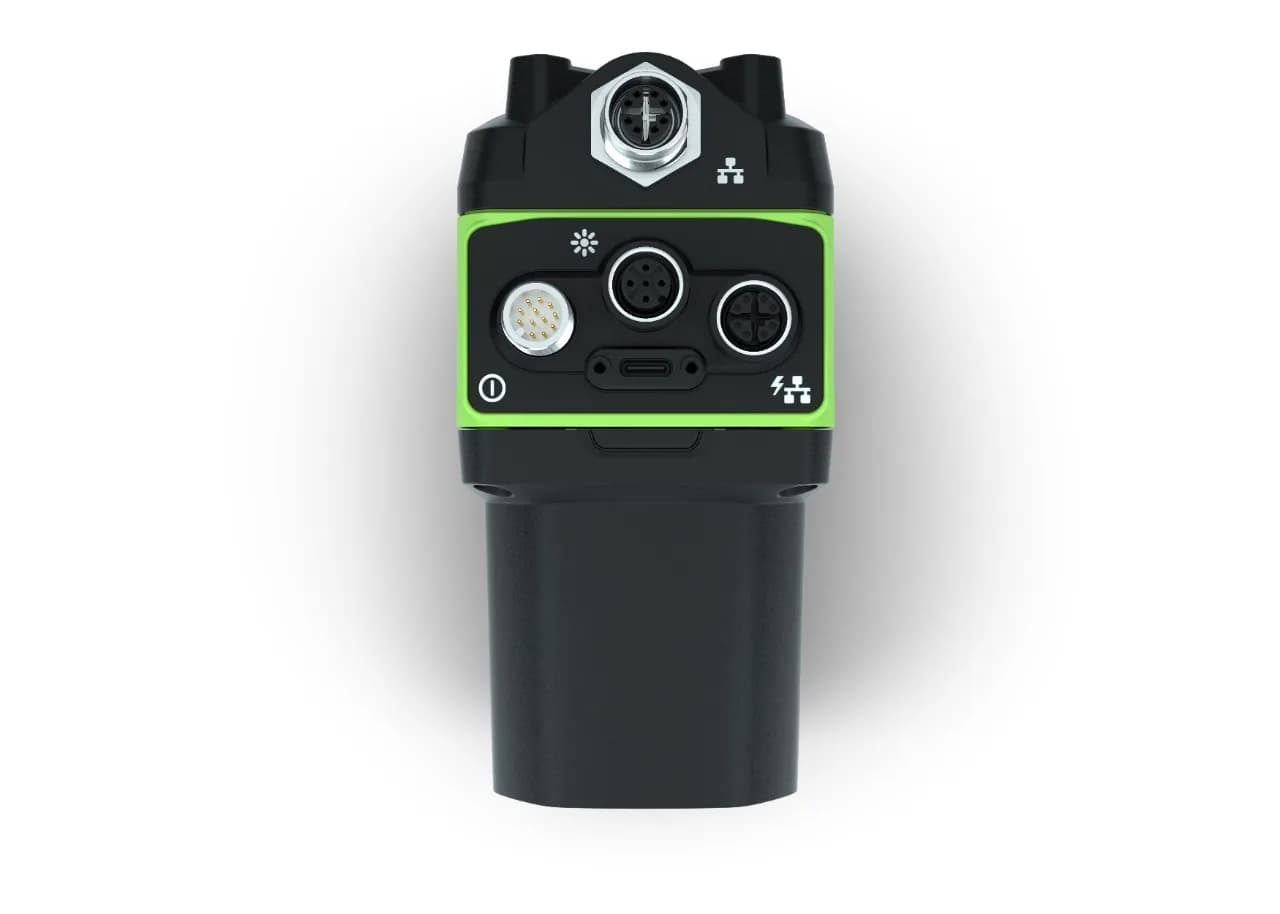

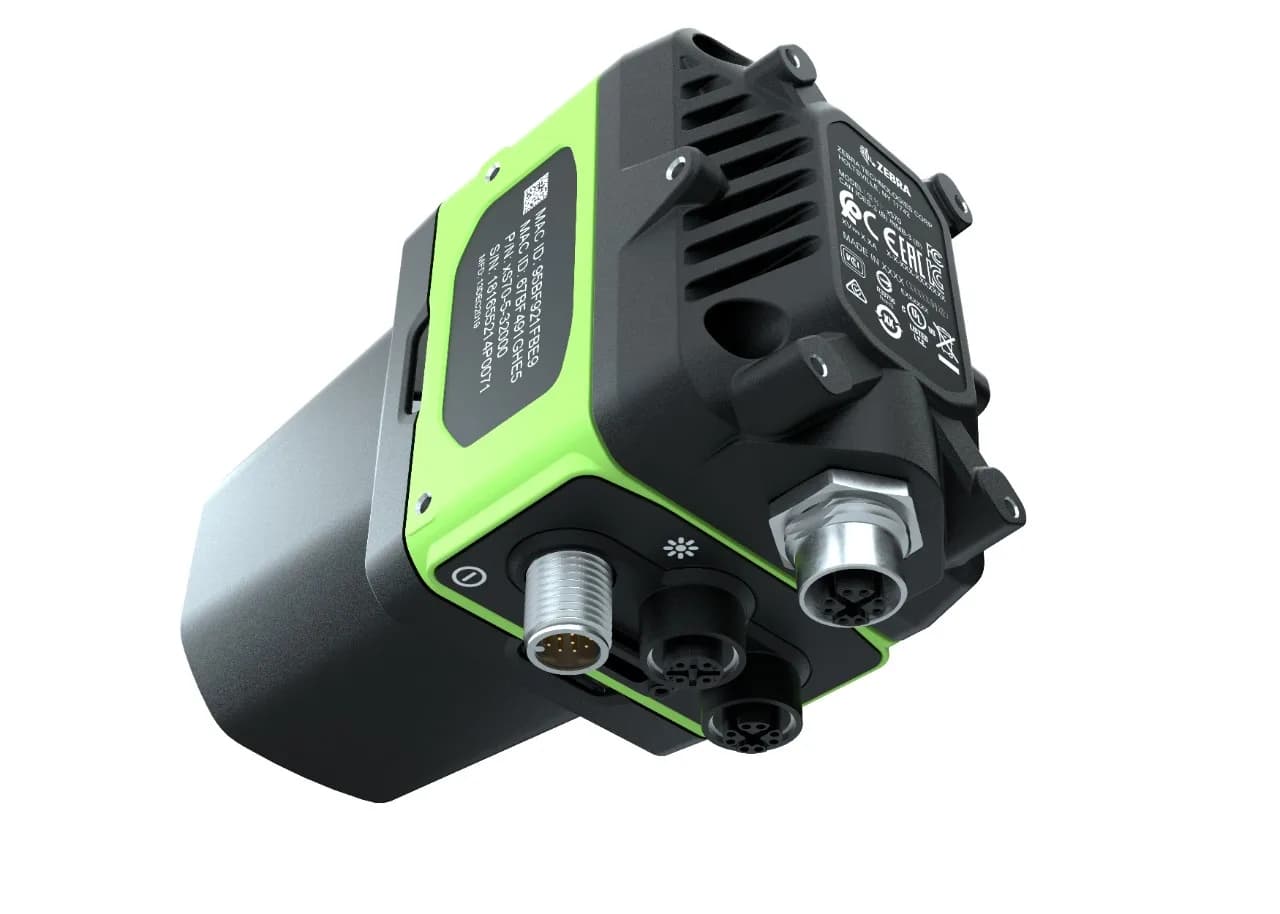

- Interfaces
- 1 or 2 M12 X-coded 10/100/1000 Ethernet; M12 12-pin power/GPIO/RS-232; M12 5-pin external light/GPIO; USB 3.0 Type-C (DP Alt Mode); Ethernet/IP, PROFINET, Modbus TCP, TCP/IP, RS-232; GPIO: 4 opto-isolated + 5 non-isolated
- Power
- 10–30 V DC (36 W), PoE+ (25.5 W), PoE (13 W)
- Software
- Zebra Aurora; decoder packs 5 or 60 FPS
- Protection
- IP65 and IP67
- Operating temperature
- 0 °C to 45 °C (external power); 0 °C to 40 °C (PoE)
- Dimensions and weight
- 63 x 95 x 65 mm; 650 g
- Warranty
- 2 years
- Accessories
- C-mount lenses, C-mount filters, lens covers, external lighting, brackets, cables, power supplies
More views
Pricing
For enterprise hardware, price depends on quantity, configuration and service package. Add it to your quote list and we'll price it the same business day.
Use cases
- PLC-controlled track and trace
- Precision reading with external lens and lighting
- Lines that need a custom reading distance and field of view
- Installations that need an isolated inspection network
- Upgrade to machine vision inspection via license
Not the right fit for
- Not suited to out-of-the-box use; a C-mount lens and external lighting must be added.
- Not suited to environments below 0 °C or above 45 °C.
- The 5.1 MP model is not suited to fast-moving objects; it uses a rolling shutter and captures up to 30 fps.
