Zebra VS series · Mid range

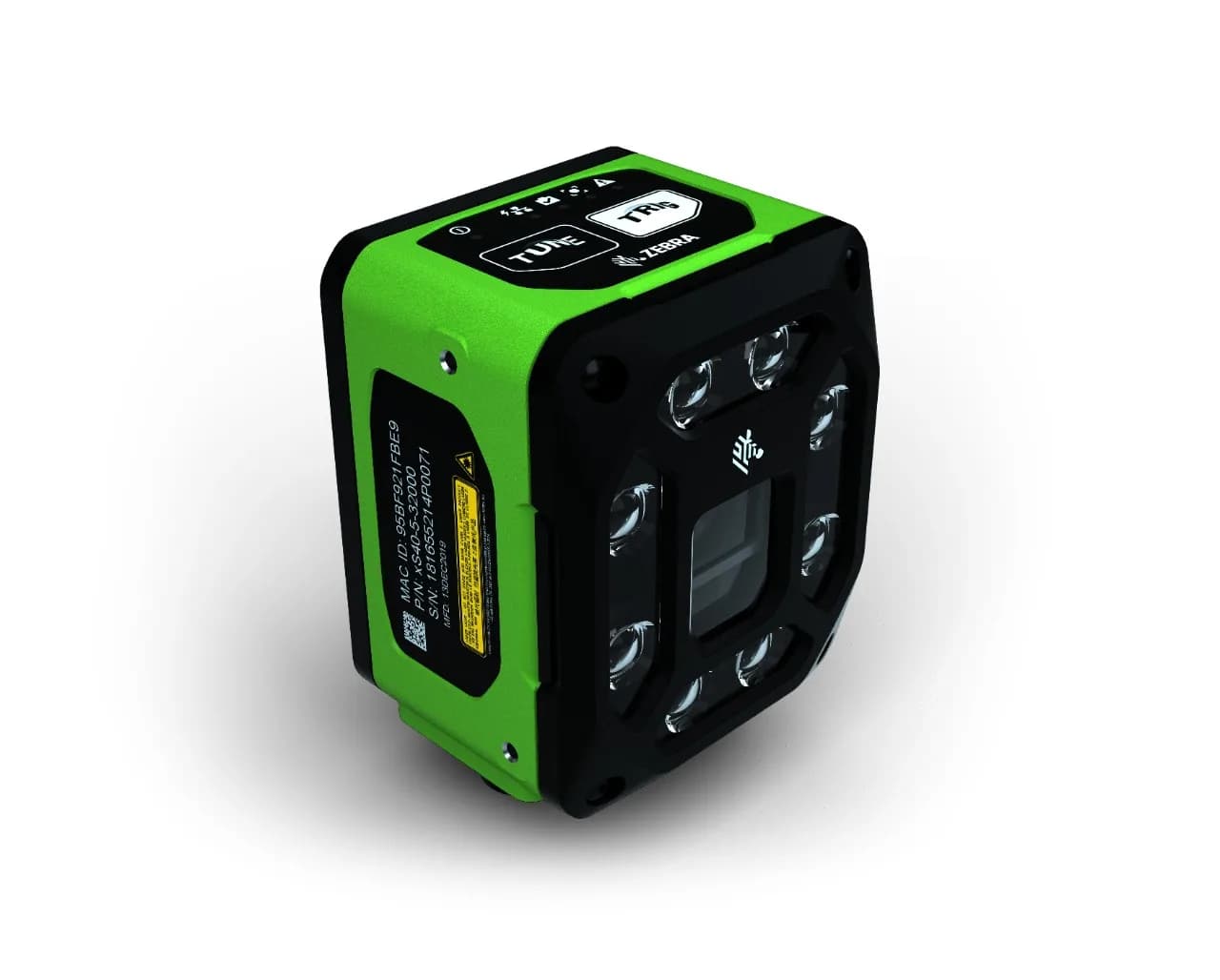

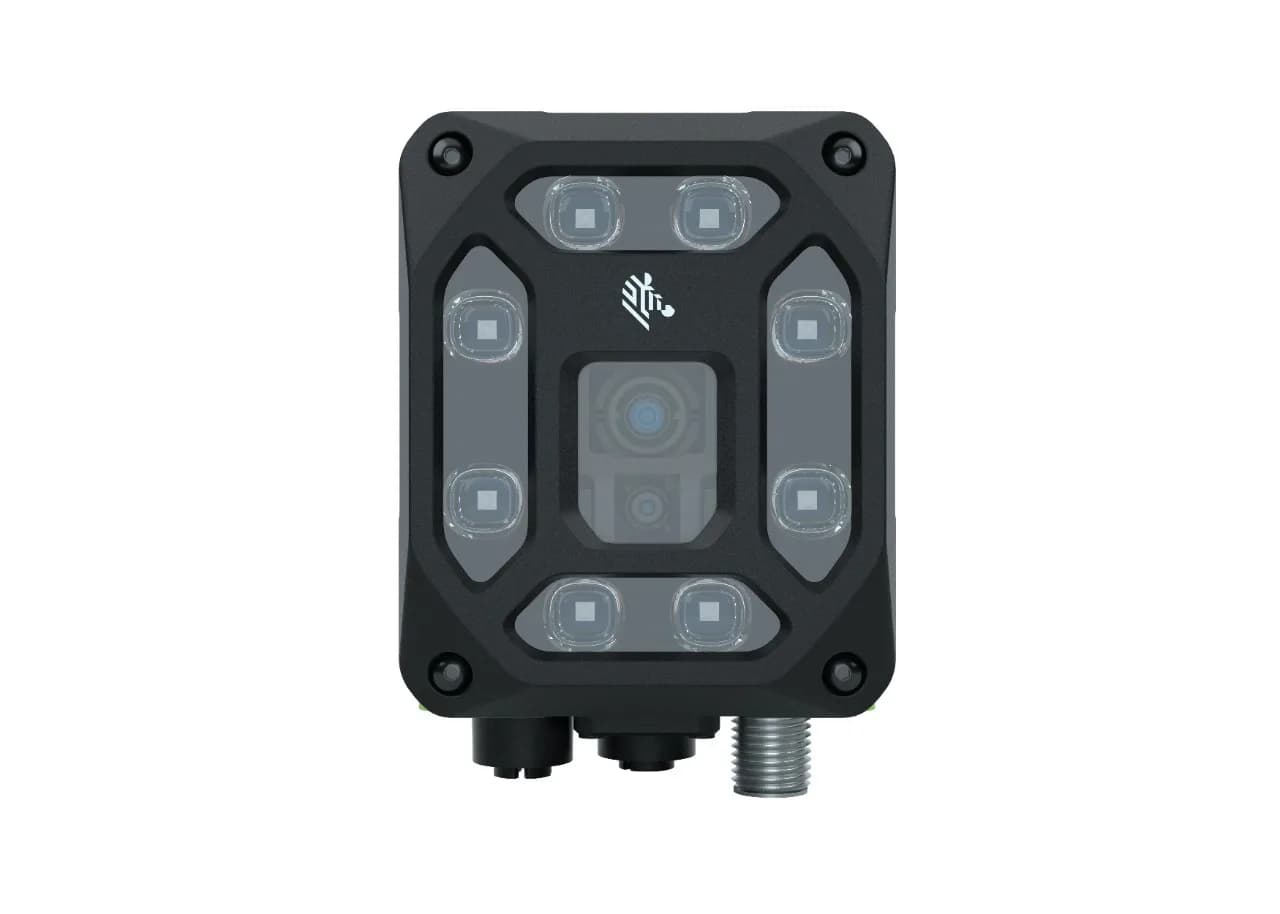

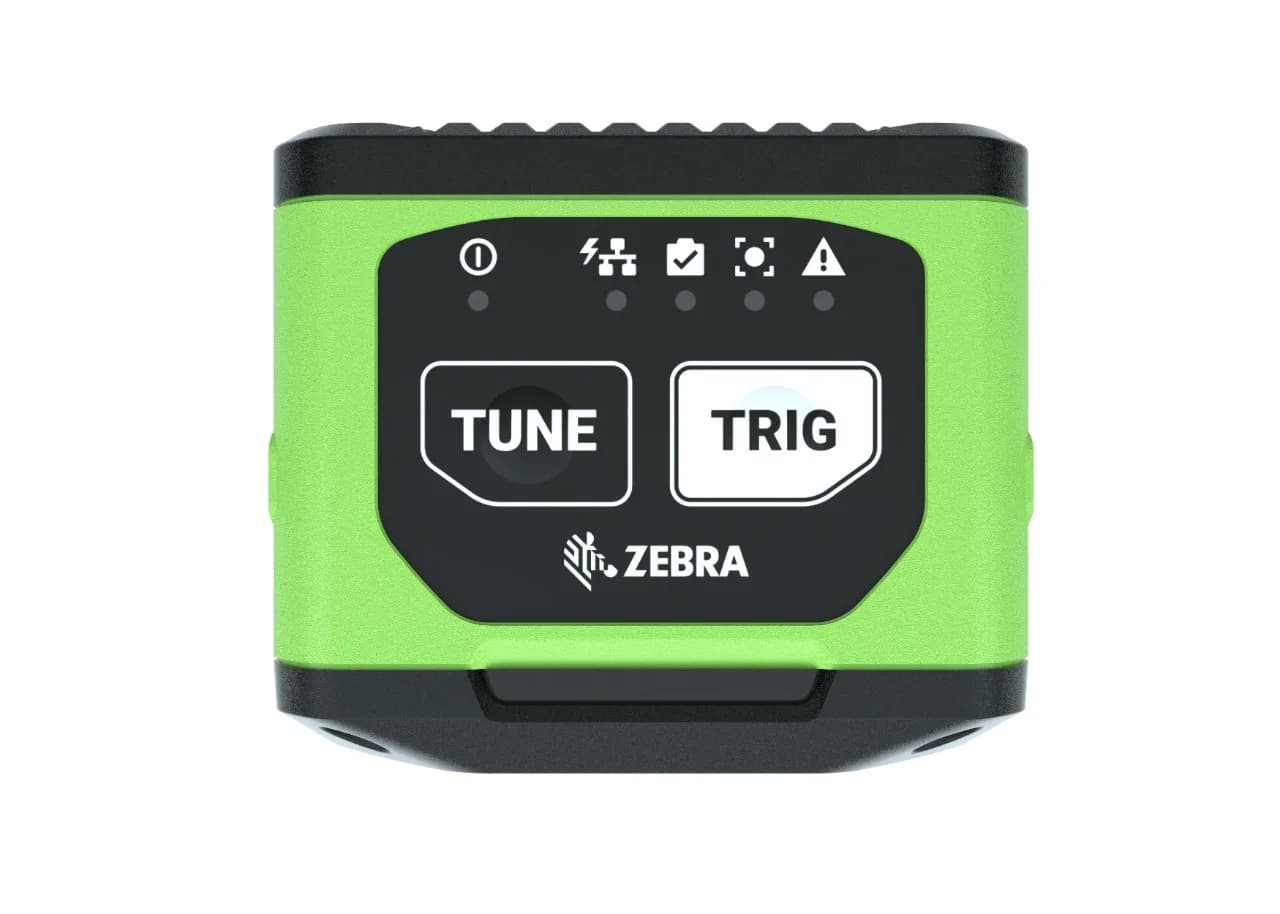

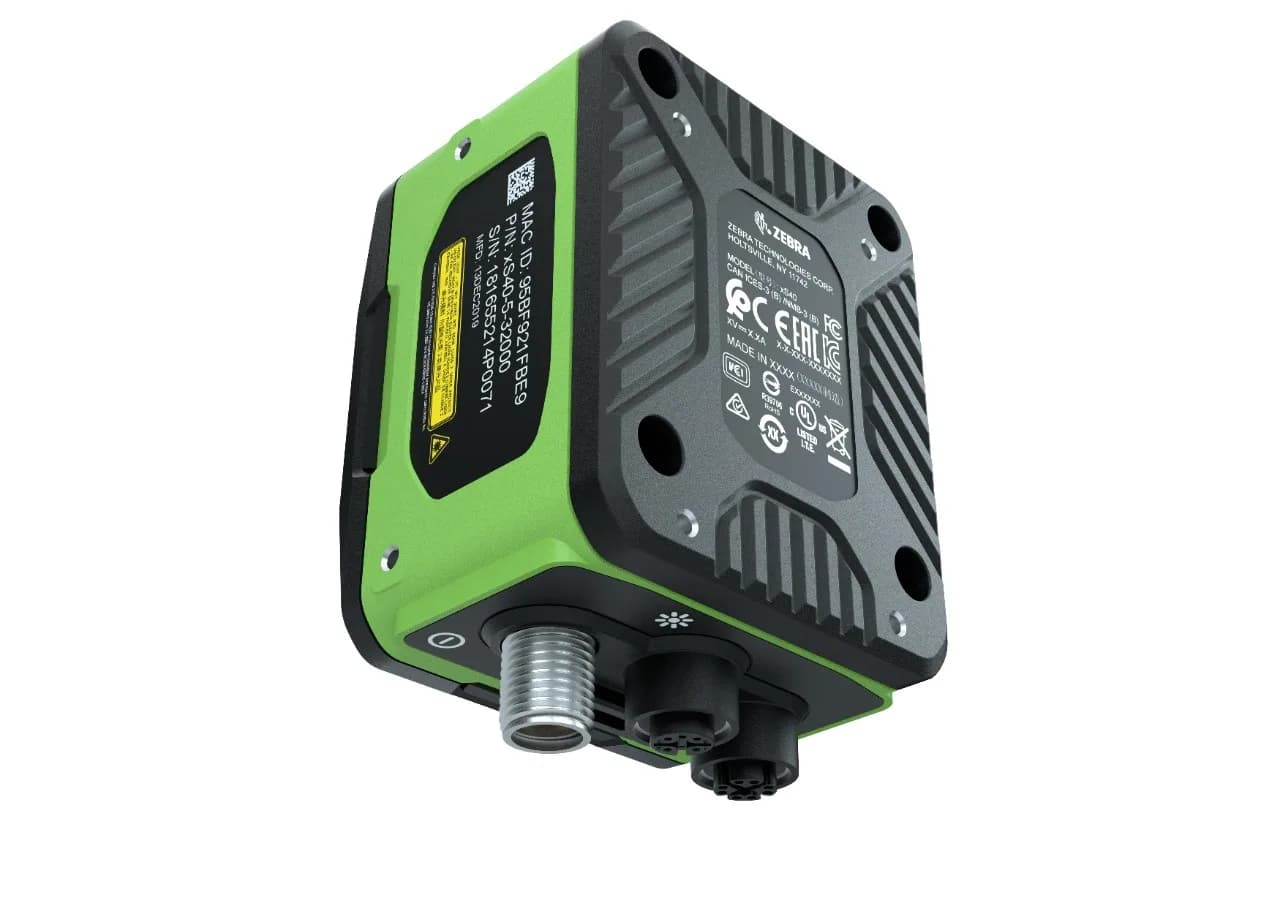

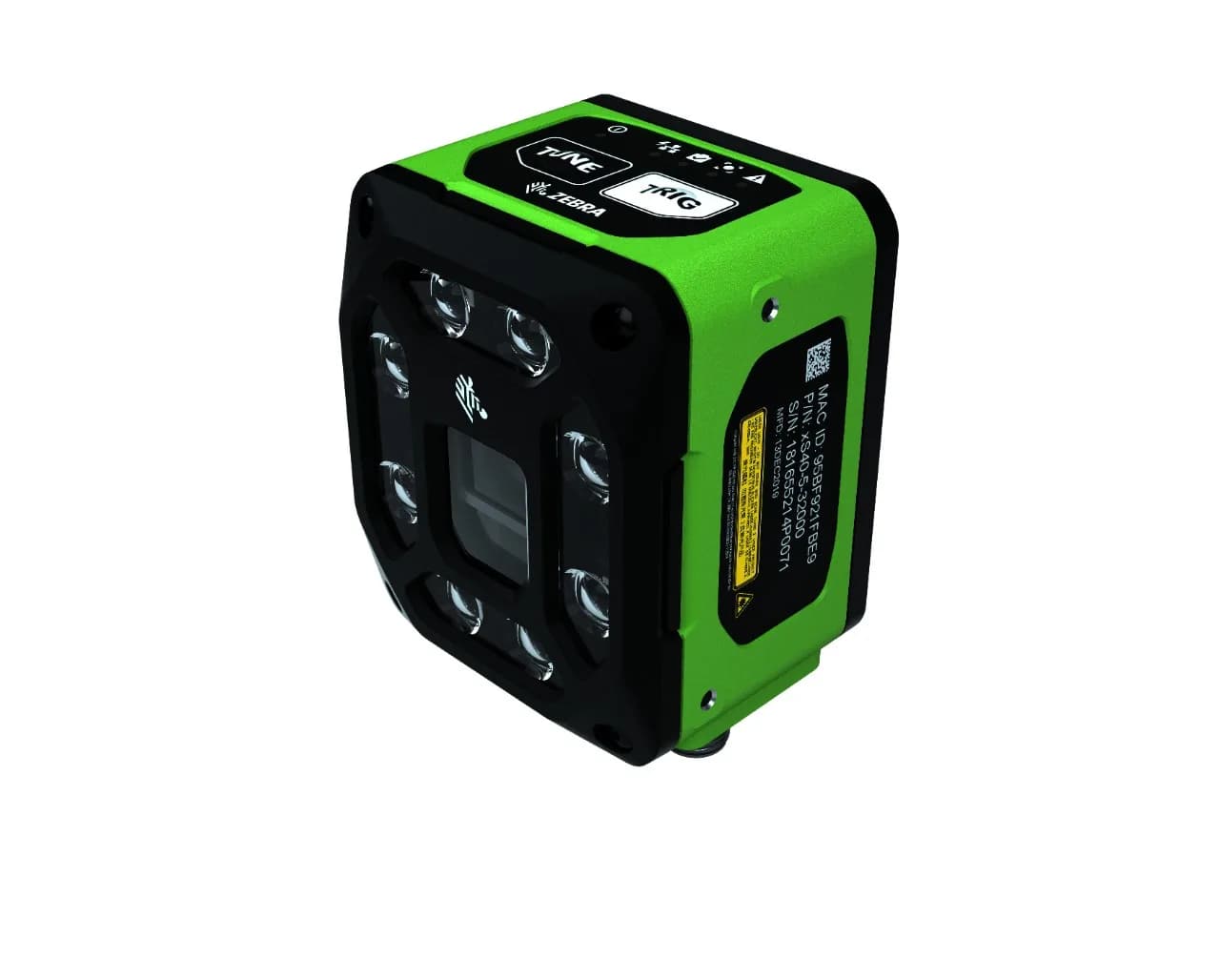

VS40
Machine vision smart camera with Sensor, Standard or Advanced toolsets for inspection and PLC-controlled track and trace, with internal and external lighting.
VS40 is a machine vision smart camera that handles a wide range of inspection applications and PLC-controlled track-and-trace reading, with internal and external lighting options. It packs comprehensive machine vision features into one device and supports Sensor, Standard or Advanced toolsets. New features can be added by upgrade as business needs change. Zebra Aurora makes setup and operation easy.
Variants
- Sensor: 2.3 MP or 5.1 MP
- Lens: SR (30°) or WA (46°)
- Ethernet: single or dual port
- Machine vision toolset by SKU: Sensor, Standard or Advanced
- Sensor
- 2.3 MP global shutter, up to 60 fps, or 5.1 MP rolling shutter, up to 30 fps; monochrome
- Resolution
- 2.3 MP: 1920 x 1200; 5.1 MP: 2592 x 1952
- Optics
- SR 10.8 mm or WA 6.8 mm liquid lens
- Illumination
- Field-replaceable red, blue, IR, white or mixed LED modules; external lighting; red Class II laser aimer
- Inspection features
- All toolsets: locate object, pixel counter, brightness, contrast, edge, distance; Standard and Advanced: advanced pattern, blob, OCV, circle find, diameter measurement, filters, 1D/2D/DPM reading; Advanced only: DL-OCR
- Interfaces
- 1 or 2 M12 X-coded Ethernet; M12 12-pin power/GPIO/RS-232; M12 5-pin external light/GPIO; USB 3.0 Type-C (DP Alt Mode); Ethernet/IP, PROFINET, Modbus TCP, TCP/IP, RS-232; GPIO: 4 opto-isolated + 5 non-isolated
- Power
- 10–30 V DC (36 W), PoE+ (25.5 W), PoE (13 W)
- Software
- Zebra Aurora
- Protection
- IP65 and IP67
- Operating temperature
- 0 °C to 45 °C (external power); 0 °C to 40 °C (PoE)
- Dimensions and weight
- 54 x 64 x 91.4 mm; 400 g
- Warranty
- 2 years
- Accessories
- Internal and external lighting, internal and external filters, brackets, cables, power supplies
More views
Pricing
For enterprise hardware, price depends on quantity, configuration and service package. Add it to your quote list and we'll price it the same business day.
Use cases
- Machine vision inspection applications
- PLC-controlled track-and-trace reading
- Locate object, edge and distance checks
- Measurement and diameter checks
- Character verification with OCV and DL-OCR
- 1D/2D/DPM code reading
Not the right fit for
- Not suited to advanced inspections such as OCV, blob or diameter measurement on a Sensor-toolset SKU; these tools are in the Standard and Advanced sets.
- Not suited to applications that need an interchangeable C-mount lens; choose VS70 for C-mount.
- Not suited to environments below 0 °C or above 45 °C.
