Zebra VS series · Entry level

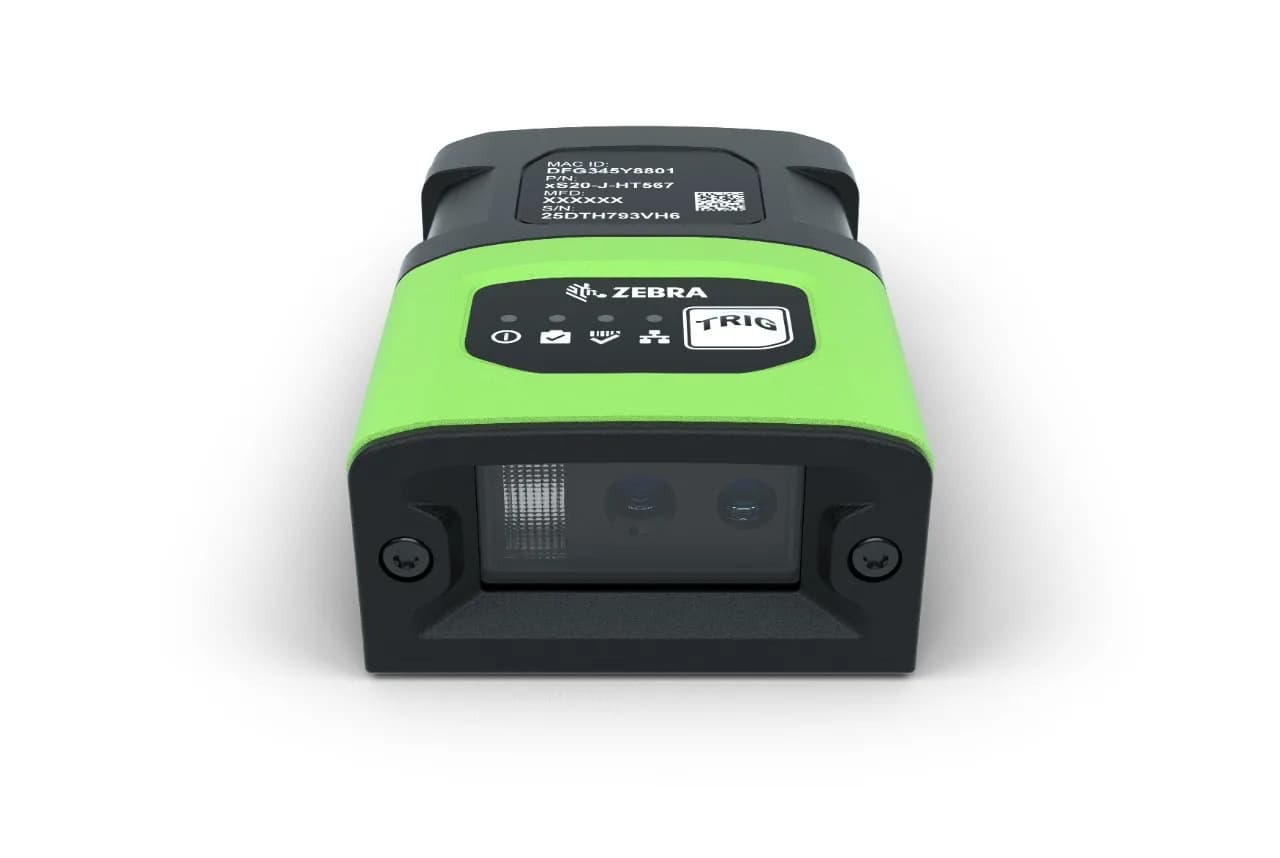

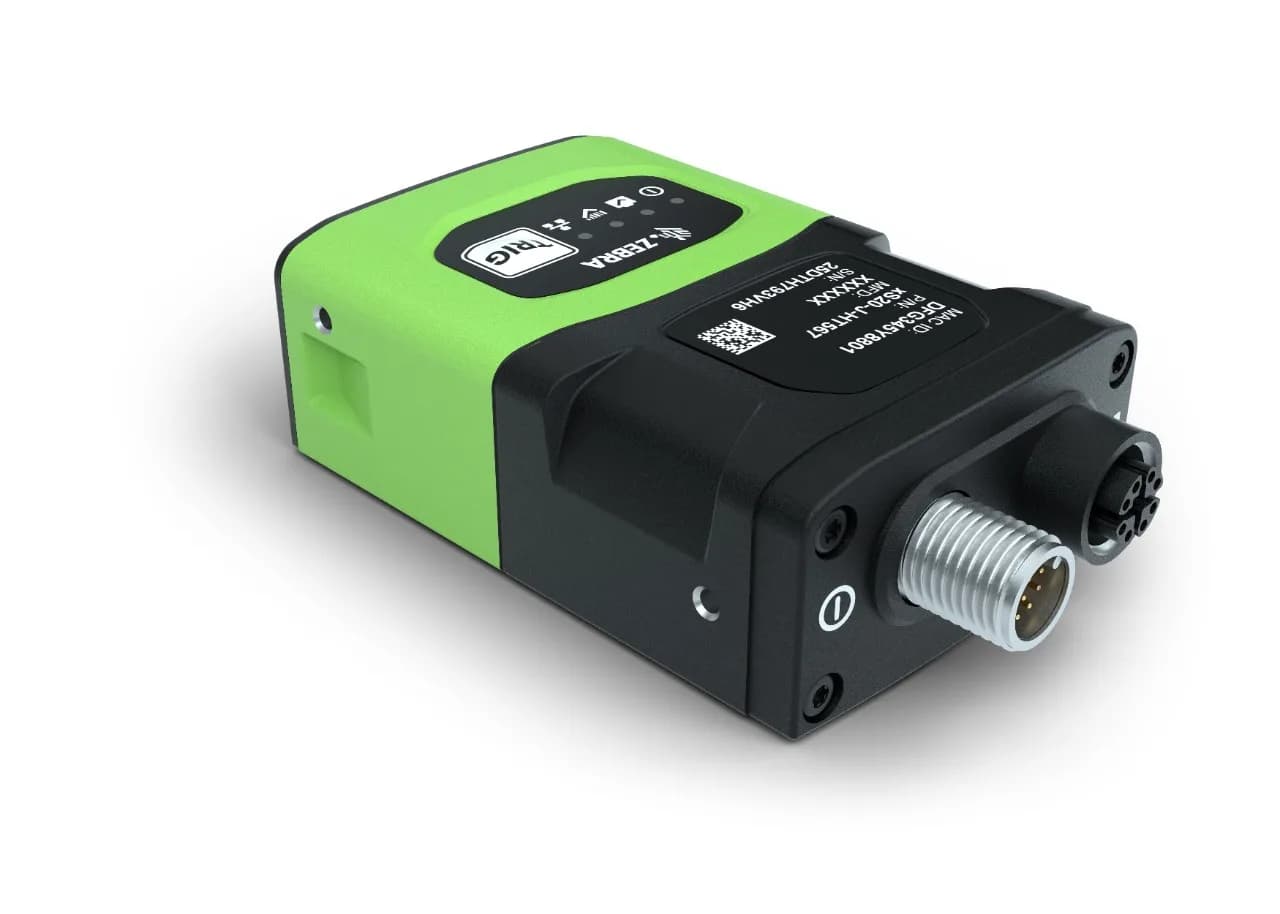

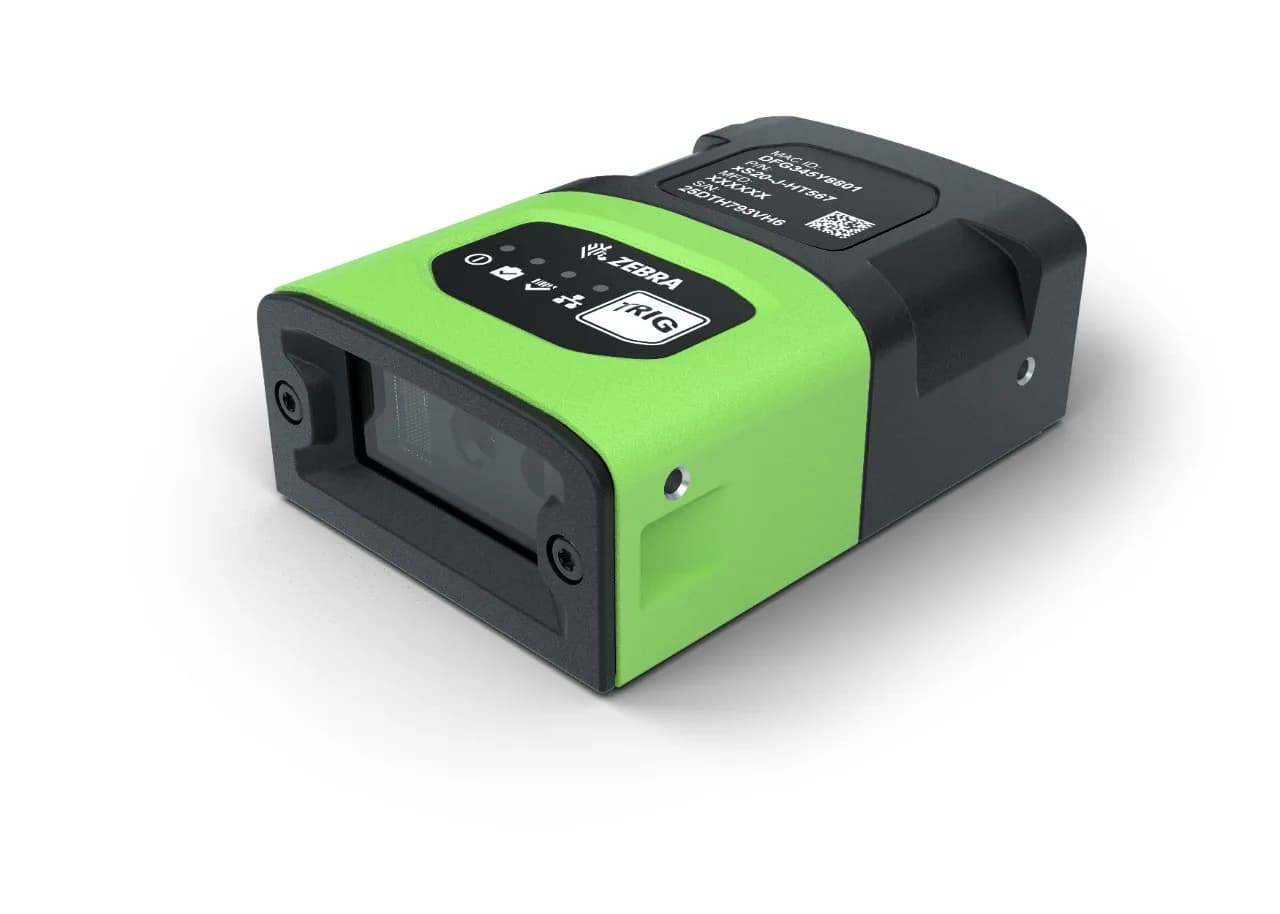

VS20
Smart sensor for entry-level machine vision inspection that also supports industrial barcode and DPM reading for PLC-controlled track and trace.
VS20 is a smart sensor designed for entry-level machine vision inspection that also supports industrial barcode and DPM reading for PLC-controlled track and trace. Multiple connectivity options integrate it easily with a PLC or host network for basic quality inspections. Zebra Aurora makes setup easy. New symbologies, speed or advanced machine vision tools are added with a software license.
Variants
- Machine vision toolset by SKU: Sensor, Standard or Advanced
- Sensor
- 1/4 inch CMOS global shutter, 3.0 µm pixel, monochrome; up to 60 fps
- Resolution
- 1280 x 800
- Optics
- VS20-SR: 6 mm Liquid Lens, 35° H x 26° V field of view
- Illumination
- Two 660 nm red LEDs or two 2700 K white LEDs; amber LED aimer
- Inspection features
- All toolsets: locate object, pixel counter, brightness, contrast, edge, distance; Standard and Advanced: advanced pattern, blob, OCV, circle find, diameter measurement, filters, 1D/2D/DPM reading; Advanced only: DL-OCR; DL-OCR with license
- Read range
- 20 mil Code 128: up to 61 cm
- Interfaces
- M12 X-coded Ethernet; M12 12-pin power/GPIO/RS-232; Ethernet/IP, PROFINET, Modbus TCP, TCP/IP, RS-232; 2 opto-isolated inputs, 2 opto-isolated outputs
- Power
- 10–30 V DC (7.5 W) or PoE Class 2
- Software
- Zebra Aurora
- Protection
- IP65 and IP67
- Operating temperature
- 0 °C to 45 °C (external power); 0 °C to 40 °C (PoE)
- Dimensions and weight
- 28.3 x 94.2 x 54.6 mm; 195 g
- Warranty
- 2 years
- Accessories
- Brackets, cables, power supplies
More views
Pricing
For enterprise hardware, price depends on quantity, configuration and service package. Add it to your quote list and we'll price it the same business day.
Use cases
- Entry-level machine vision inspection
- Basic quality checks
- PLC-controlled track and trace
- Industrial barcode reading
- DPM reading
Not the right fit for
- Not suited to inspections that need high resolution; the sensor resolution is 1280 x 800.
- Not suited to long-distance reading; range for 20 mil Code 128 is up to 61 cm.
- Not suited to environments below 0 °C or above 45 °C.
