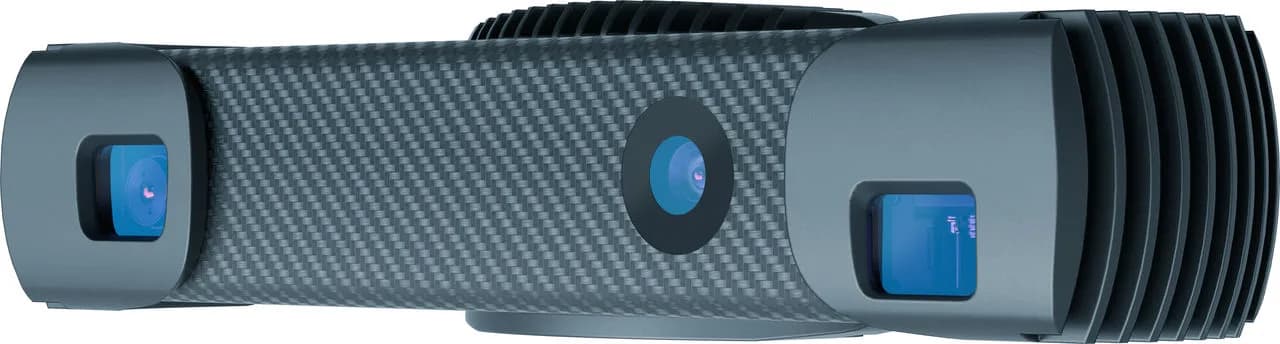

PhoXi 3D Scanner
3D scanner that captures static scenes at high speed and resolution, producing precise structured-light point clouds for fast product localization.
The Photoneo PhoXi 3D Scanner Gen3 is a structured-light 3D sensor that scans static scenes at high speed and high resolution. It comes in 6 models: S, M and L sizes, each with a red or blue laser. Scanning volume ranges from 38 cm to 2.15 m, and each scan delivers 3 million 3D points with 25–200 µm accuracy depending on the model. It suppresses ambient light up to 20,000 lux and takes power and data over a single PoE cable.
Variants
- S Gen3 (red or blue laser): scanning range 384–442–520 mm (near–sweet spot–far); scanning area 364 x 305 mm (red) / 364 x 317 mm (blue); point-to-point distance 0.13–0.18 mm; baseline 230 mm; 319 x 68 x 86 mm; 900 g

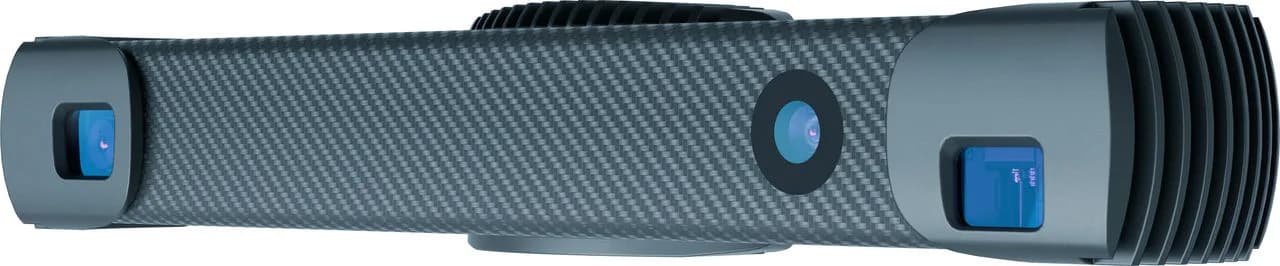

- M Gen3 (red or blue laser): range 458–655–1118 mm; area 623 x 443 mm (red) / 623 x 467 mm (blue); point-to-point 0.16–0.39 mm; baseline 350 mm; 439 x 68 x 86 mm; 950 g

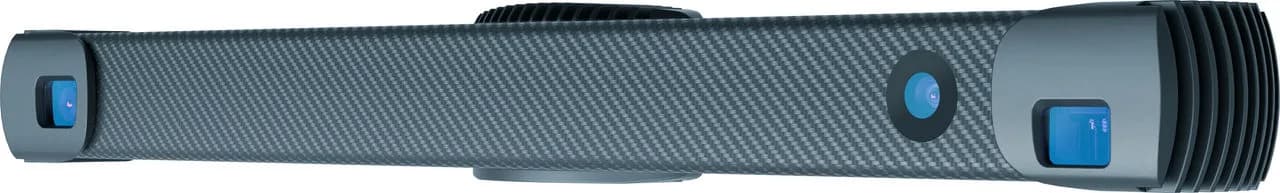

- L Gen3 (red or blue laser): range 870–1244–2150 mm; area 1112 x 822 mm (red) / 1112 x 883 mm (blue); point-to-point 0.31–0.76 mm; baseline 550 mm; 639 x 68 x 86 mm; 1100 g
- Sensor
- Structured light; red or blue laser
- Resolution
- Depth map 5.1 Mpix (2472 x 2064); color image up to 8 Mpix (L blue: 7 Mpix)
- Scanning range
- S: 384–520 mm; M: 458–1118 mm; L: 870–2150 mm
- Accuracy
- Relative distance accuracy 0.125% (1.25 ‰); temporal noise 0.02–0.13 mm (by model and distance)
- Speed
- Acquisition time from 190 ms, scanning time from 250 ms
- Output
- 3D points, normals, depth map, color image, texture, confidence
- Processor
- NVIDIA Jetson TX2
- Interfaces
- 1 Gbit Ethernet
- Power
- PoE or 24 V
- Protection
- IP65
- Operating temperature
- 0 °C to 40 °C (optimal 22–25 °C)
- Dimensions and weight
- S: 319 x 68 x 86 mm, 900 g; M: 439 x 68 x 86 mm, 950 g; L: 639 x 68 x 86 mm, 1100 g
More views
Pricing
For enterprise hardware, price depends on quantity, configuration and service package. Add it to your quote list and we'll price it the same business day.
Use cases
- 3D scanning of static scenes
- Fast product localization
- Scanning large objects
- Scanning very small objects
Not the right fit for
- Not suited to scanning moving objects; PhoXi is designed for static scenes.
- Not suited to environments with unstable temperatures; the operating range is 0–40 °C, optimal 22–25 °C, and accuracy can drop by up to 0.15% for every 10 °C deviation from standard.
- Not suited to scanning beyond 2150 mm or closer than 384 mm; the model ranges fall within these limits.
