Zebra ZD series · Mid range

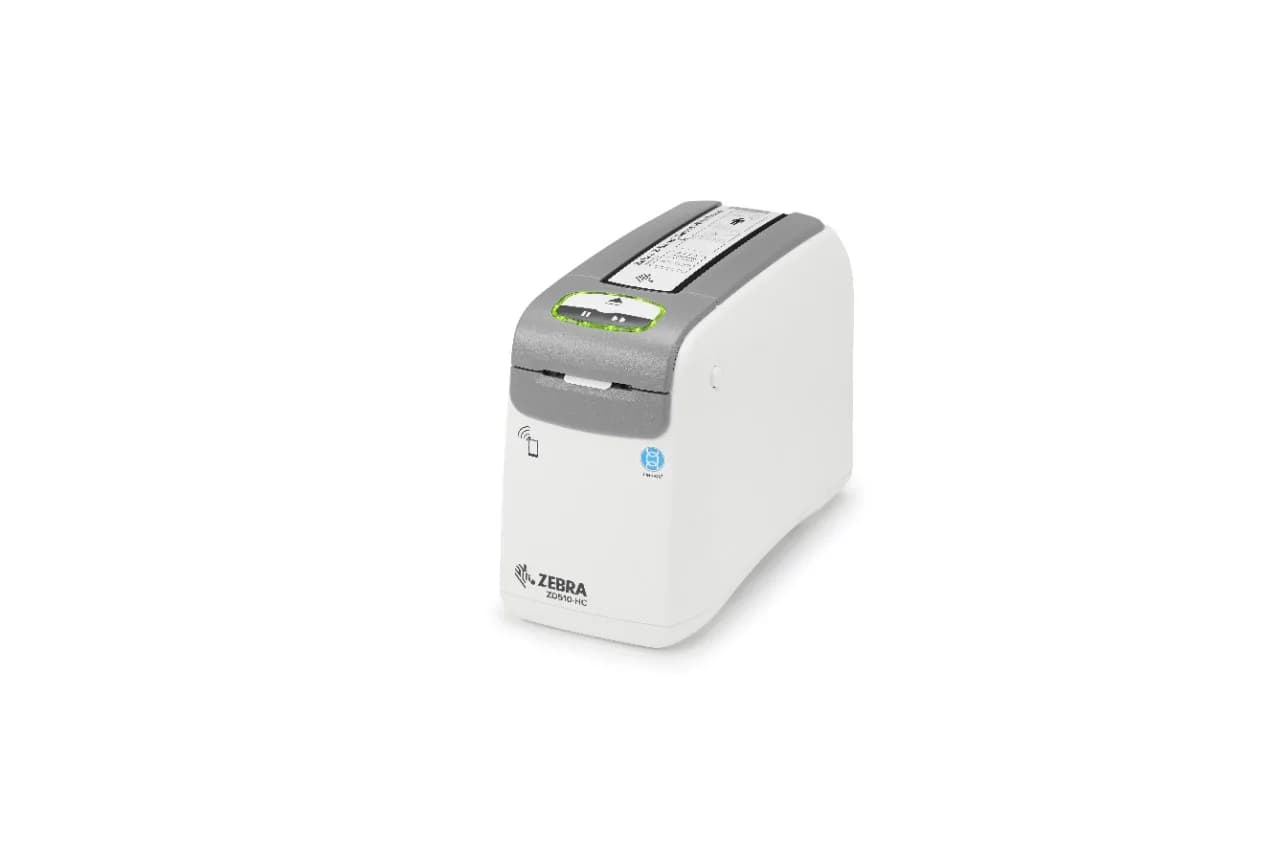

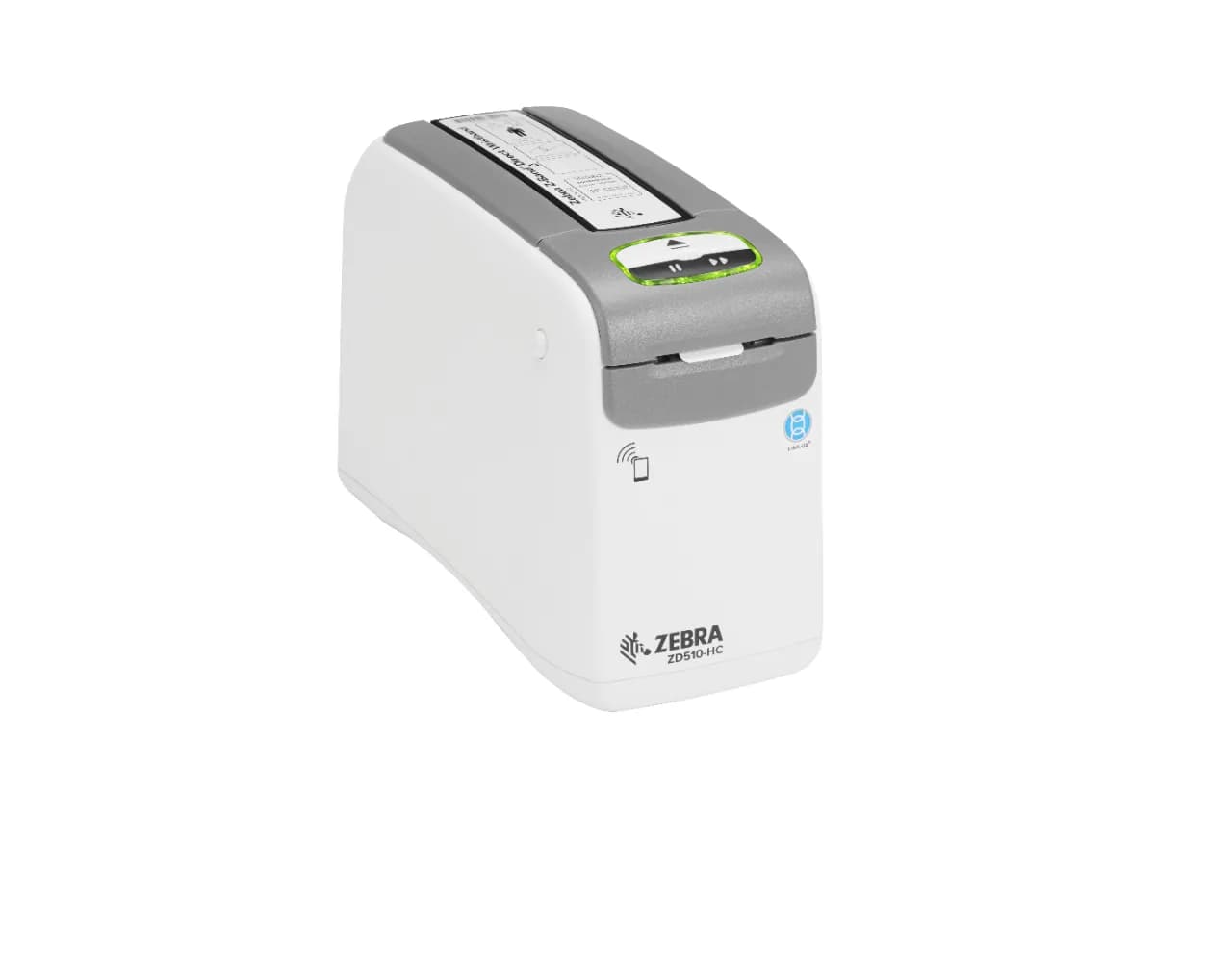

ZD510-HC

Wristband printing solution combining the direct thermal ZD510-HC printer with easy-load cartridges of antimicrobial-coated Z-Band wristbands.

Just load the cartridge and print. A smart chip in the cartridge enables automatic calibration; the printer recognises the wristband size and sets darkness and speed itself. It prints infant to adult, adhesive or clip-closure, white and coloured Z-Band wristbands.

Print method

Direct thermal, with wristband cartridge

Resolution

300 dpi

Print speed

Healthcare wristbands 51 mm/s; Z-Band Fun and Splash 102 mm/s; speed adjusts automatically to the loaded cartridge

Print width

19.05 mm, 25.4 mm, 30.16 mm; print length 76–558 mm

Media

Z-Band wristband cartridges; automatic calibration via the cartridge smart chip

Connectivity

USB, USB Host, 10/100 Ethernet (EMEA configuration; no Bluetooth LE or Print Touch NFC)

Printer languages

ZPL, ZPL II, XML; optional ZBI 2.0

Memory

512 MB flash, 256 MB SDRAM; real-time clock

Healthcare features

Wipeable plastics resistant to disinfectants and cleaning solutions; IEC 60601-1:2012 power supply; tool-free printhead and platen replacement

Options

ZBI 2.0; Asian and international font kits

Operating temperature

4.4 °C to 40 °C; humidity 20–85%

Dimensions and weight

127 x 178 x 242 mm (W x H x D); 153 mm clearance above needed to load cartridges

Warranty

At least 2 years

Accessories

Z-Band wristband cartridges: healthcare (adult, pediatric, infant); hospitality (single and multi-day, 7 colours)
