Zebra ZD600 series · Premium
ZD611 Healthcare
Premium 2-inch desktop printer purpose-built for healthcare, with a disinfectant-ready housing.
It has disinfectant-ready white plastics, a UV-resistant enclosure, a sealed button interface, an IEC 60601-1 compliant power supply and a colour touch LCD. The movable media sensor supports almost any media type. Optional 300 dpi delivers high-resolution printing.
Variants

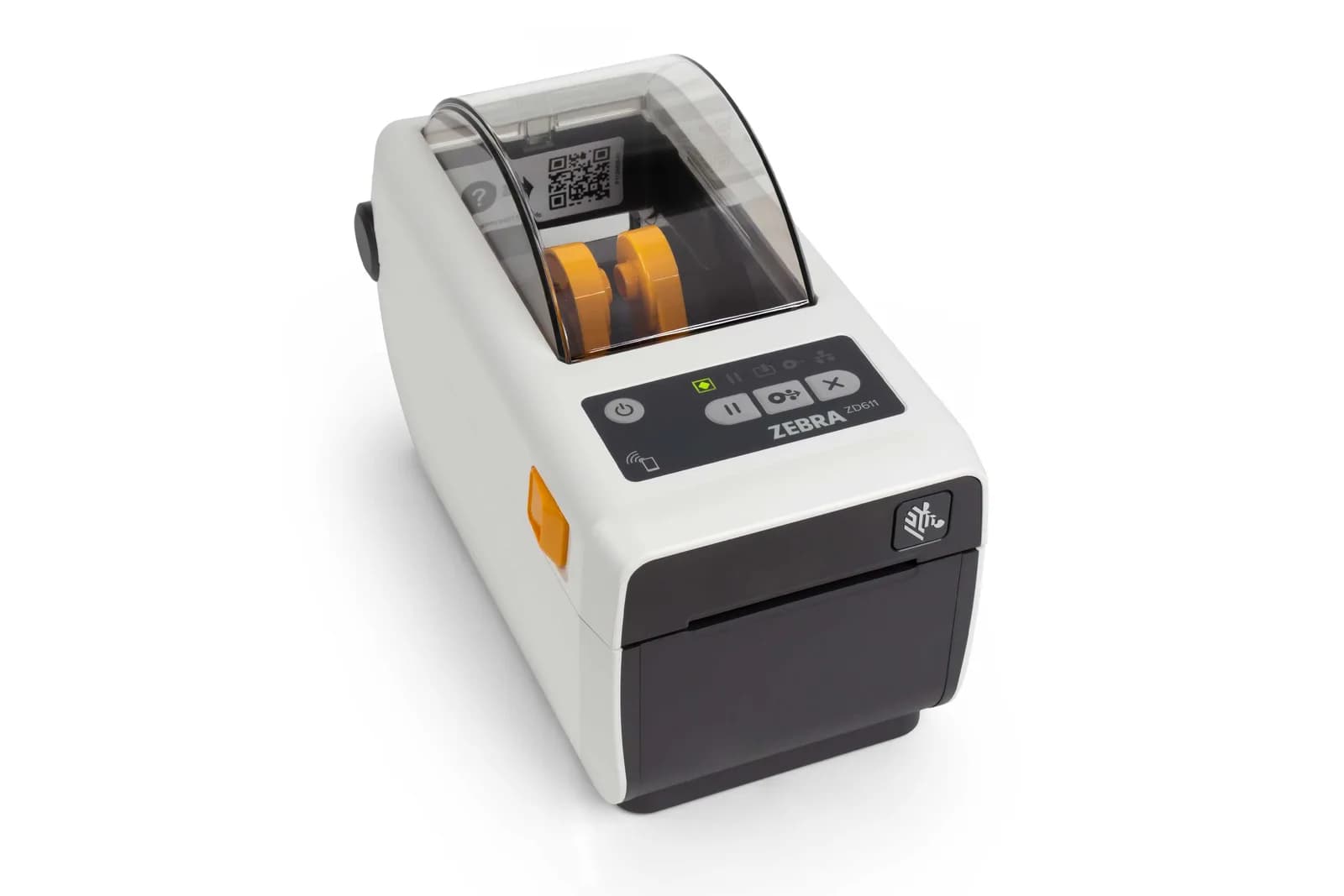

- ZD611 DT HC: Direct thermal; 5 status icons + 3 buttons; linerless with cutter available on this model only; 220 x 115 x 151 mm (L x W x H), 1 kg.

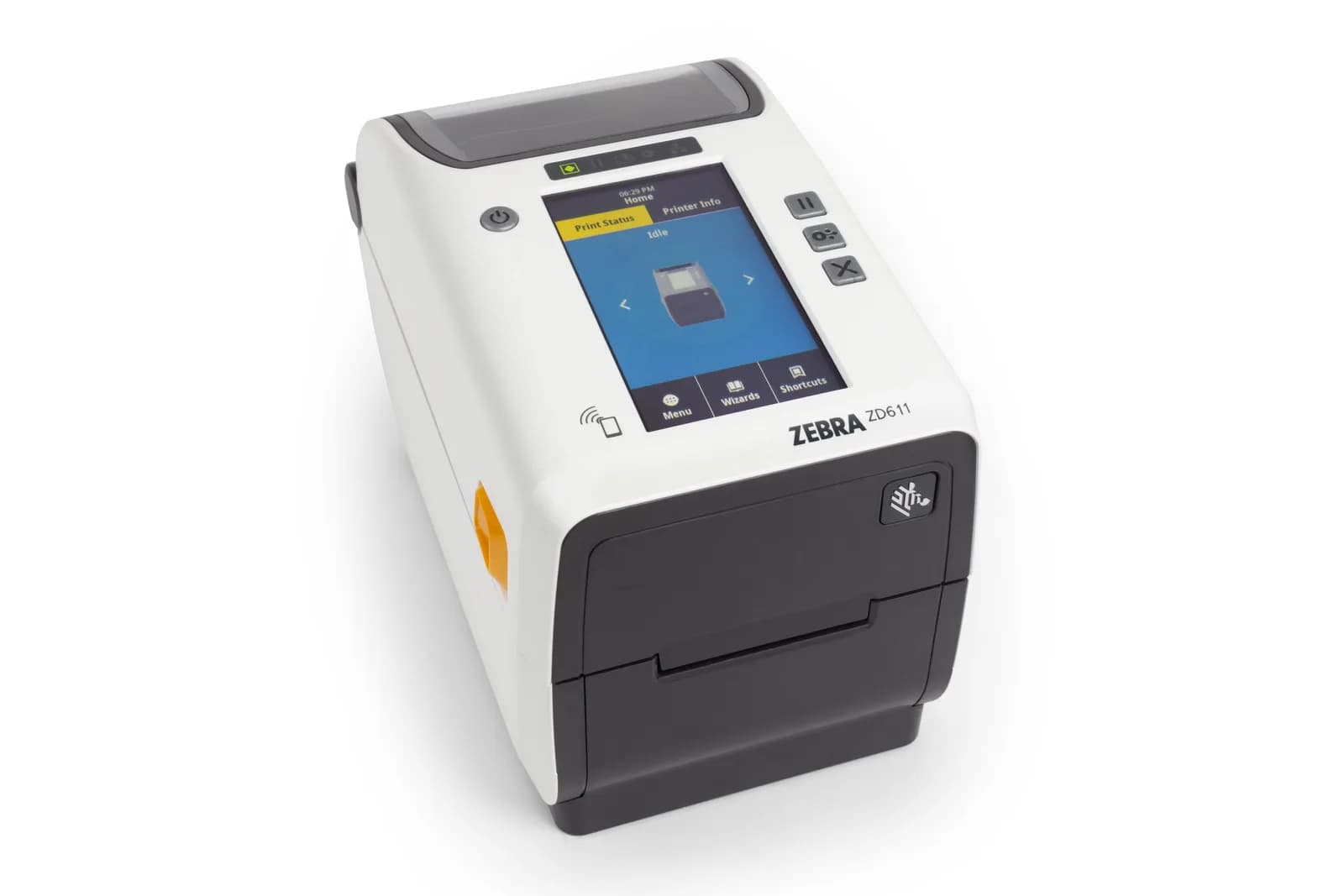

- ZD611 TT HC: Thermal transfer; 4.3-inch full-colour touch LCD (480 x 272) + 3 buttons; 74 m ribbon (1:1), width 33–58 mm; movable media arm; 242.9 x 138.7 x 169.2 mm, 1.63 kg.
- Print method
- Direct thermal (DT HC) or thermal transfer (TT HC)
- Resolution
- 203 dpi; optional 300 dpi
- Print speed
- Up to 203 mm/s (203 dpi) and 152 mm/s (300 dpi)
- Print width
- Up to 56 mm (203 dpi) / 54 mm (300 dpi)
- Media
- Width 15–60 mm; label length 6.35–991 mm; thickness 0.06–0.19 mm; roll OD up to 127 mm; core 12.7 mm and 25.4 mm (38.1, 50.8, 76.2 mm with adapters)
- Ribbon
- 74 m (1:1); width 33–58 mm (TT HC)
- Connectivity
- Standard Ethernet, USB 2.0, USB Host, BLE 5 for setup; field serial RS-232; factory or field 802.11ac Wi-Fi + Bluetooth Classic 4.2
- Printer languages
- ZPL II, EPL 2, XML, ZBI, PDF Direct
- Memory
- 512 MB flash, 256 MB SDRAM; real-time clock
- Healthcare features
- White colour; IEC 60601-1 approved power supply; disinfectant-resistant plastics and sealed buttons; UV-resistant enclosure
- Options
- Linerless with cutter (DT HC only); dispenser/peeler and cutter (factory or field)
- Operating temperature
- 4.4 °C to 41 °C
- Dimensions and weight
- DT HC: 220 x 115 x 151 mm, 1 kg; TT HC: 242.9 x 138.7 x 169.2 mm, 1.63 kg
- Warranty
- At least 2 years
- Accessories
- Battery, ZKDU, mounting adapter bracket (to replace LP/TLP2824 Plus)
More views
Pricing
For enterprise hardware, price depends on quantity, configuration and service package. Add it to your quote list and we'll price it the same business day.
Use cases
- Specimen collection labels
- Prescription labels
- Laboratory management
- Patient ID wristbands
- Asset labelling
- Patient record labels
Not the right fit for
- Media wider than 60 mm: the 2-inch printer takes media up to 60 mm wide.
- High-volume thermal transfer printing that needs long ribbon life: the TT HC takes 74 m ribbons only.
- Environments below 4.4 °C or above 41 °C: they fall outside the operating temperature range.
