Zebra ZT400 series · Premium

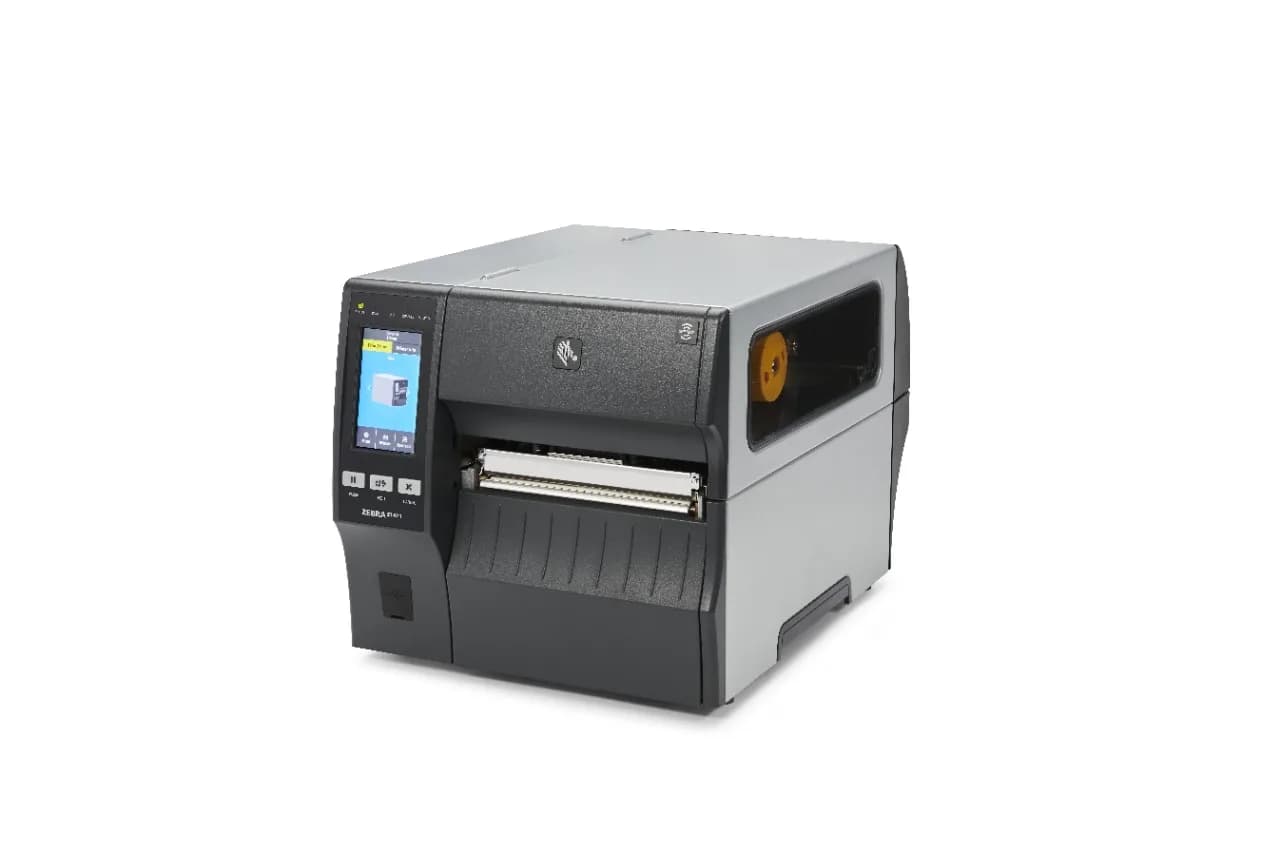

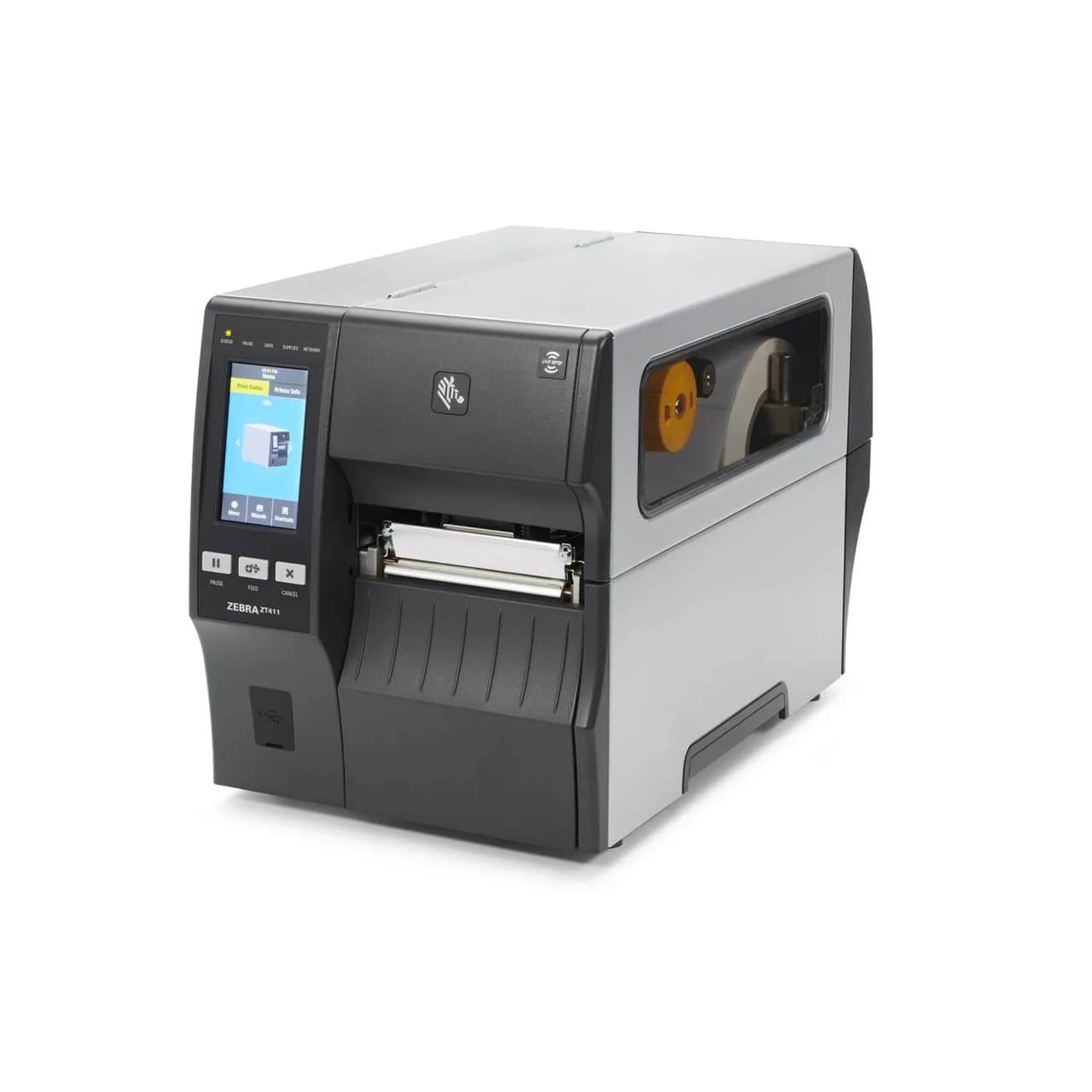

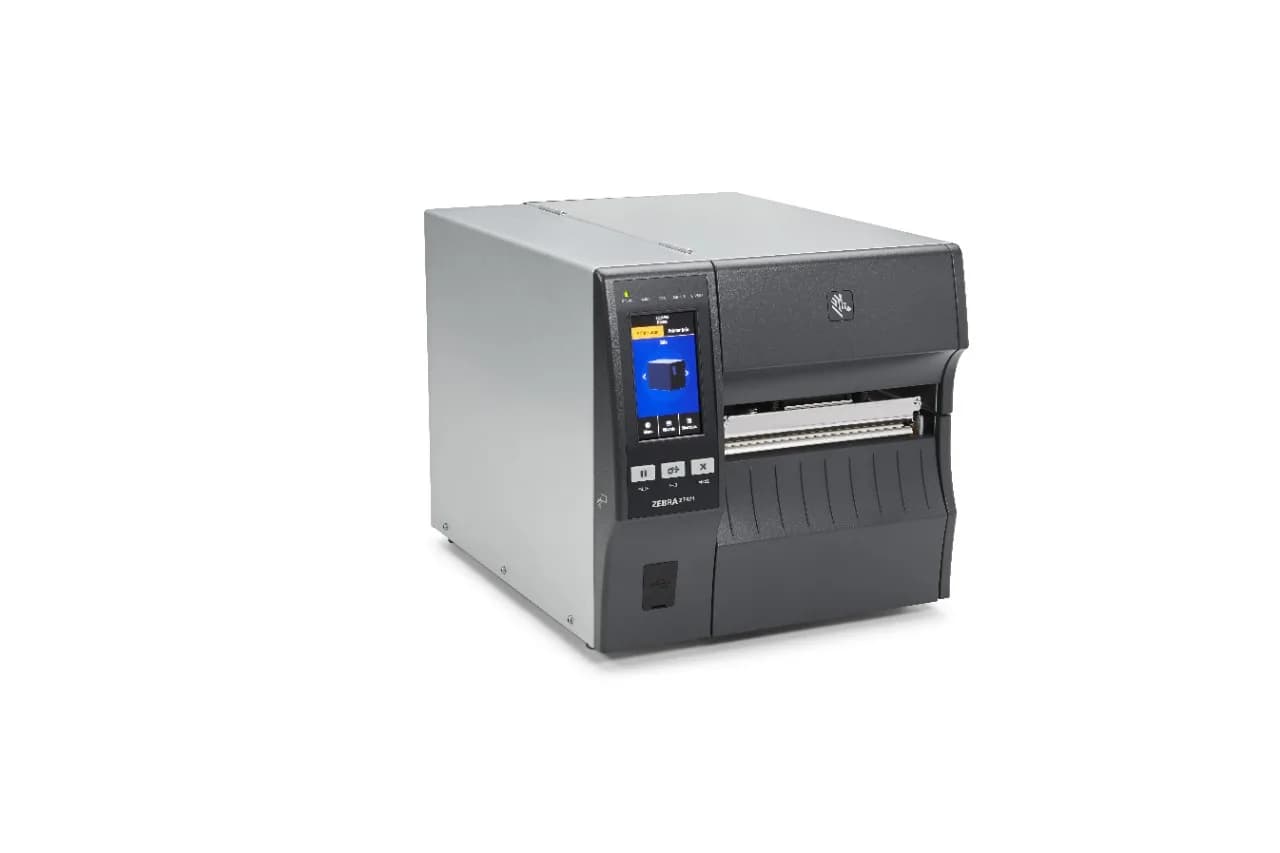

ZT411 / ZT421 RFID
4- and 6-inch RFID industrial printers built on the proven reliability of the Z Series, taking versatility, ease of use and performance further.
Ethernet, USB, USB Host and Bluetooth are standard, and optional dual-band Wi-Fi can be added. A side-loading, colour-coded and illuminated media path makes loading easy. The RFID encoder can be installed at the factory or in the field. The On-Metal model prints and encodes RFID tags that work on all surfaces, including metal.
Variants
- ZT411 RFID: 4-inch; print width 104 mm; up to 356 mm/s (14 ips); 203/300 dpi, 600 dpi optional; media 25.4–114 mm; 495 x 269 x 324 mm, 16.33 kg.
- ZT411 On-Metal RFID: on-metal RFID version of the ZT411; optimised for Silverline tags up to 1.5 mm thick; an adjustable sensor array supports standard and thick media; the on-metal kit is not available on the 600 dpi model.
- ZT421 RFID: 6-inch; print width 168 mm; up to 305 mm/s (12 ips); 203/300 dpi; media 51–178 mm; 495 x 336 x 324 mm, 18.14 kg.
- Print method
- Thermal transfer and direct thermal
- Resolution
- 203/300 dpi; 600 dpi optional on ZT411
- Print speed
- ZT411: up to 356 mm/s (14 ips); ZT421: up to 305 mm/s (12 ips)
- Print width
- ZT411: 104 mm; ZT421: 168 mm; print length up to 3,988 mm on ZT411 (203 dpi) and 2,591 mm on ZT421
- Media
- Width ZT411 25.4–114 mm, ZT421 51–178 mm; roll 203 mm OD, 76 mm core; thickness 0.058–0.25 mm (up to 1.5 mm with the on-metal option)
- Ribbon
- 450 m
- Connectivity
- USB 2.0, RS-232 serial, 10/100 Ethernet, Bluetooth 4.1, dual USB Host; two open communication slots: dual-band Wi-Fi 6 + Bluetooth 5.3, Wi-Fi 5 + Bluetooth 4.2, parallel, 10/100 Ethernet, applicator interface
- RFID
- UHF EPC Gen 2 V2.1, ISO/IEC 18000-63 and RAIN RFID compliant; minimum 16 mm pitch; variable inlay position; ATA Spec 2000 user memory locking; MCS; integrated reader/encoder; field-installable on-metal kit (ZT411 only, not 600 dpi)
- Memory
- 256 MB SDRAM, 512 MB flash
- Display
- 4.3-inch colour touch display
- Options
- Rewind, peeler, cutter, automation kit for ZT411
- Operating temperature
- Thermal transfer 5 °C to 40 °C; direct thermal 0 °C to 40 °C
- Dimensions and weight
- ZT411 RFID: 495 x 269 x 324 mm, 16.33 kg; ZT421 RFID: 495 x 336 x 324 mm, 18.14 kg
- Accessories
- On-metal RFID kit, communication cards, automation kit, ZKDU
More views
Pricing
For enterprise hardware, price depends on quantity, configuration and service package. Add it to your quote list and we'll price it the same business day.
Use cases
- Item-level RFID tagging
- Asset and pallet labelling
- Work-in-progress, serial number and packaging labels
- Picking, shipping and cross-docking
- Distribution centres and back of store
- Lab, specimen and pharmacy labels
- RFID tags for metal surfaces (On-Metal)
Not the right fit for
- On-metal RFID with the 600 dpi ZT411: the on-metal kit is not available on this model.
- On-metal RFID with the ZT421: the on-metal kit is available on the ZT411 only.
- Environments below 0 °C or above 40 °C: they fall outside the operating temperature range (5 °C minimum for thermal transfer).
