Zebra ZD400 series · Mid range

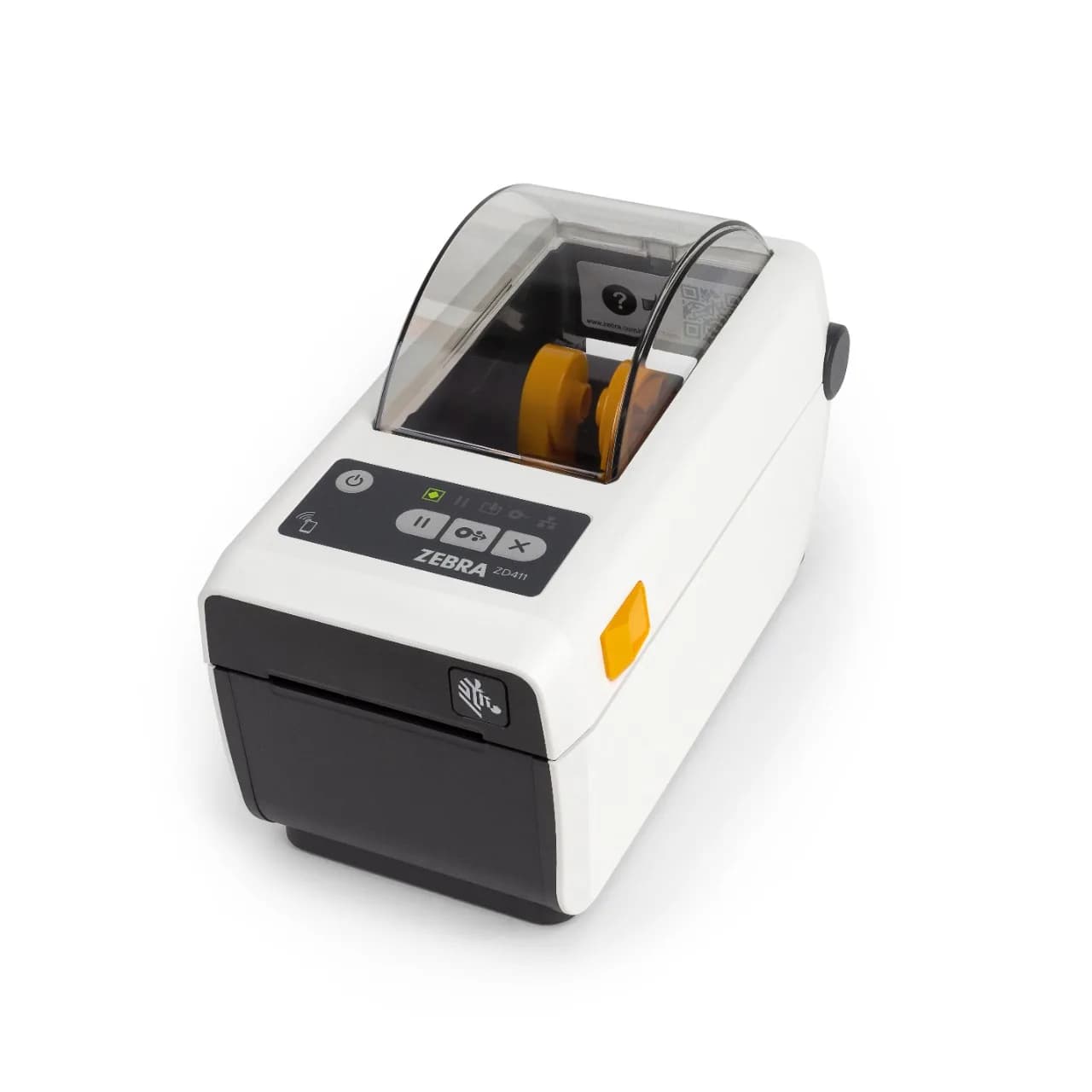

ZD411 Healthcare

Advanced 2-inch direct thermal desktop printer purpose-built for healthcare, with a disinfectant-ready housing.

It has disinfectant-ready white plastics, a UV-resistant enclosure, a sealed button interface and an IEC 60601-1 compliant power supply. It replaces the ZD410d healthcare printer. Five status icons and a three-button interface make it easy to use.

Print method

Direct thermal

Resolution

203 dpi; optional 300 dpi

Print speed

Up to 152 mm/s (203 dpi) and 102 mm/s (300 dpi)

Print width

Up to 56 mm (203 dpi) / 54 mm (300 dpi)

Media

Width 15–60 mm; label length 6.35–991 mm; thickness 0.08–0.19 mm; roll OD up to 127 mm; core 12.7 mm and 25.4 mm (38.1, 50.8, 76.2 mm with adapters)

Connectivity

Standard USB 2.0, USB Host, BLE 5 for setup; field-installable Ethernet 10/100, serial RS-232, dual radio 802.11ac Wi-Fi + Bluetooth Classic 4.2

Printer languages

ZPL II, EPL 2, XML, ZBI, PDF Direct

Memory

512 MB flash, 256 MB SDRAM; real-time clock

Healthcare features

White colour; IEC 60601-1 approved power supply; disinfectant-resistant, easy-to-clean plastics and sealed buttons; UV-resistant enclosure supporting UV cleaning protocols

Options

Dispenser/peeler (factory or field), cutter (field)

Operating temperature

4.4 °C to 41 °C

Dimensions and weight

220 x 115 x 151 mm (L x W x H); 1 kg

Warranty

At least 2 years

Accessories

2,750 mAh battery, ZKDU keyboard display unit, mounting adapter bracket (to replace LP2824 Plus)
