Zebra ZD200 series · Entry level

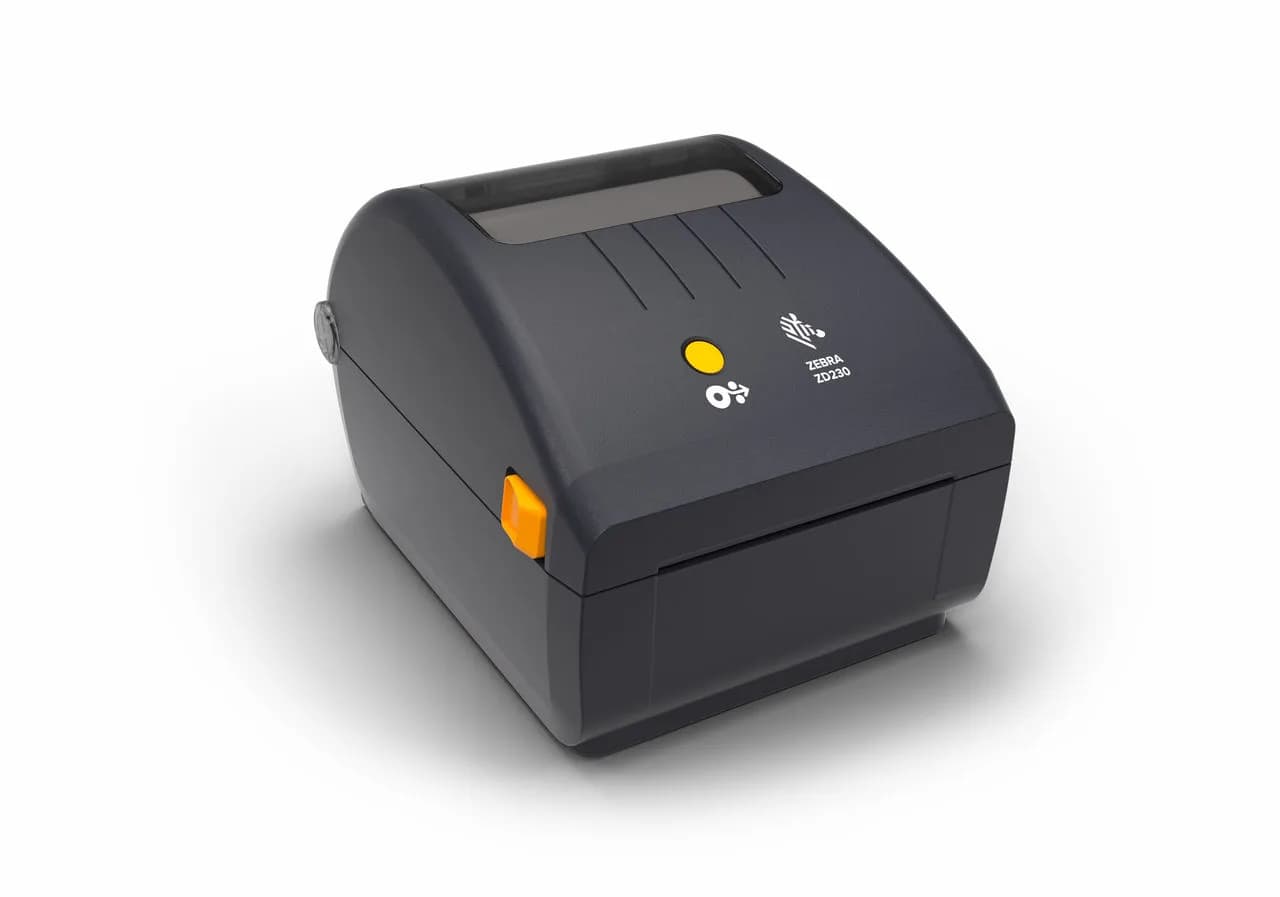

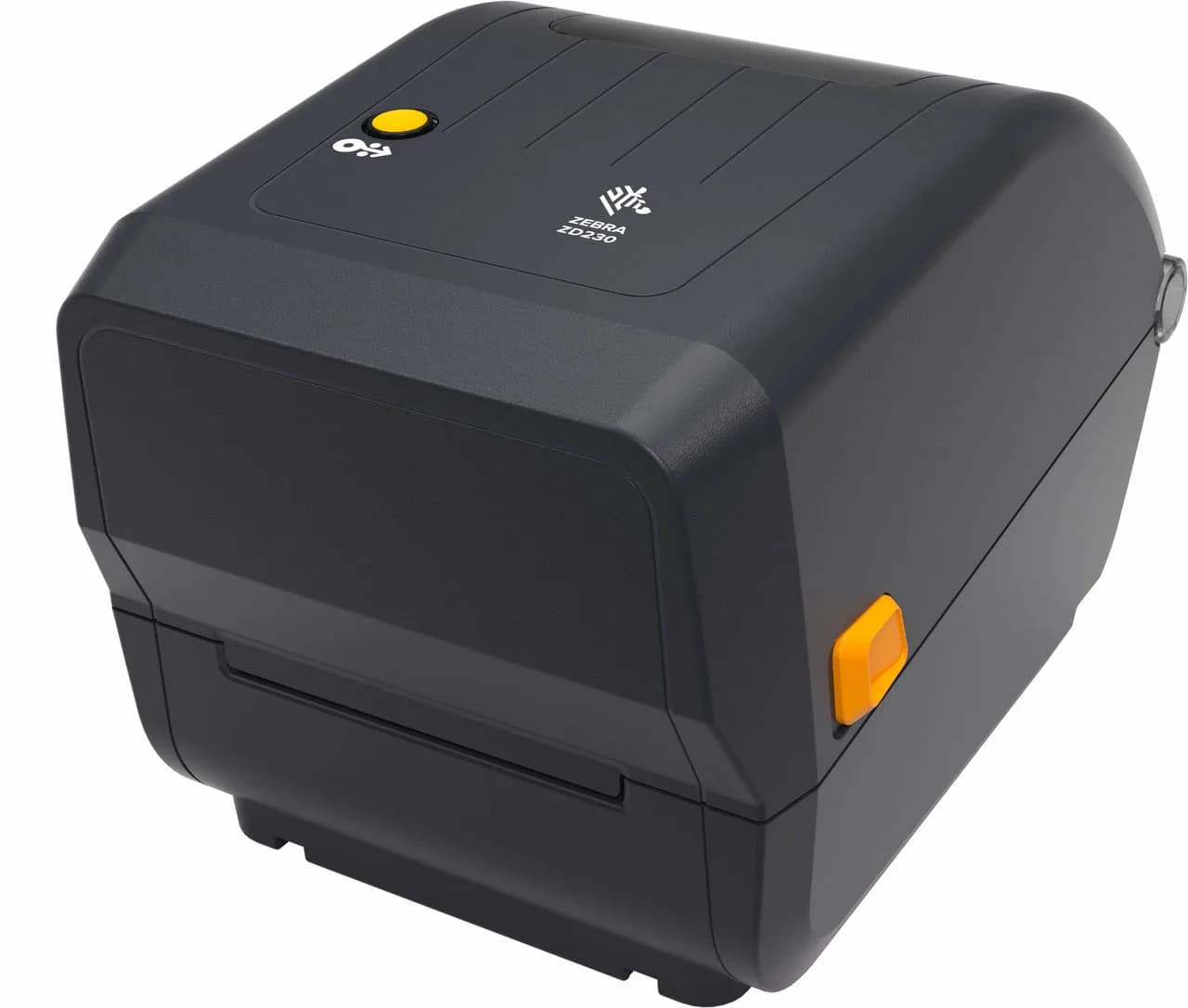

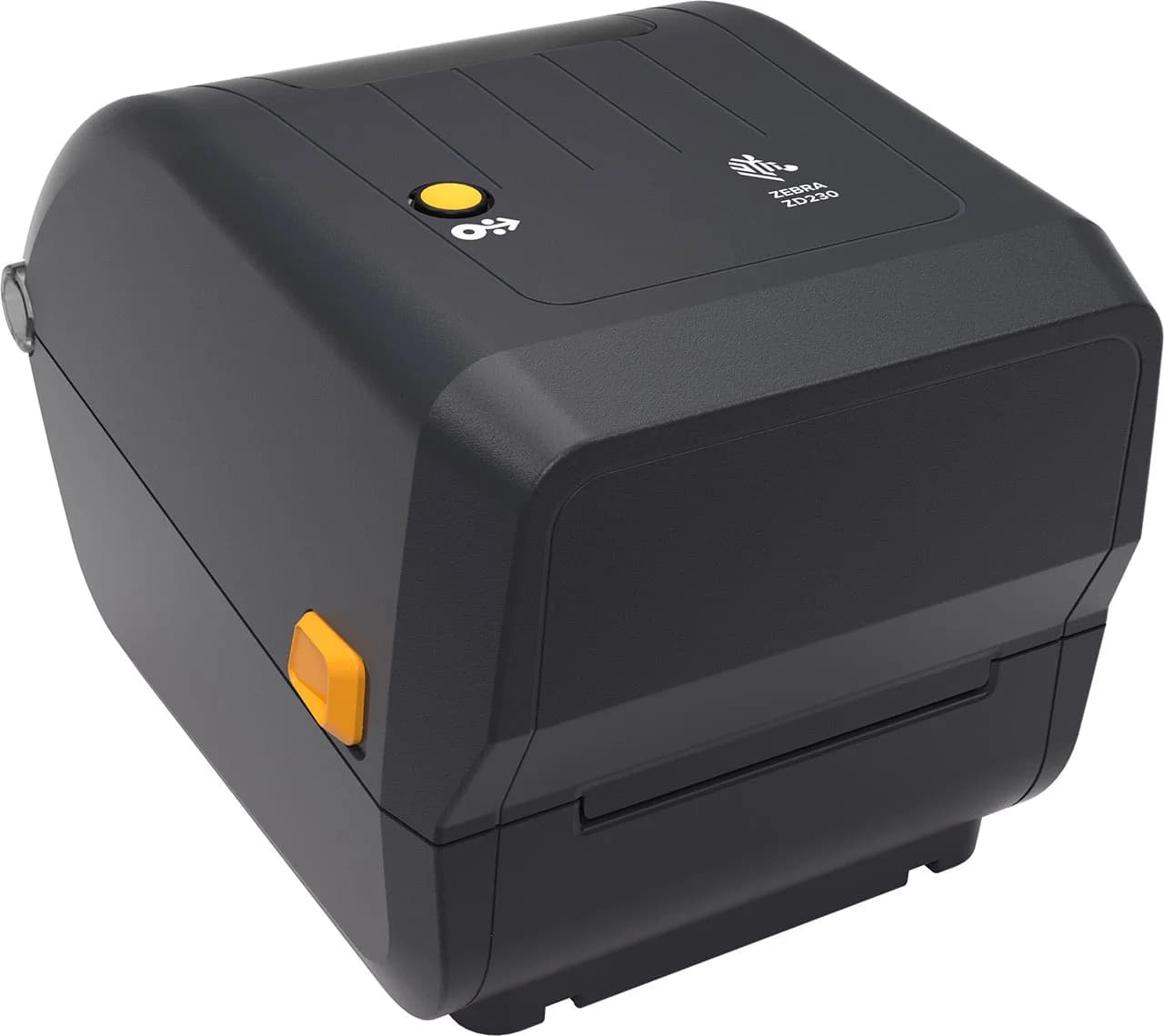

ZD230DA / ZD230TA

Cost-effective, USB-only 4-inch desktop printers with the features basic printing needs: DA is direct thermal, TA is thermal transfer.

Plug into USB straight out of the box and start printing. Support for ZPL, EPL and non-Zebra command languages lets it replace an existing printer, with 203 dpi or optional 300 dpi. A single feed/pause button, a three-colour status LED and colour-coded touch points mean no training is needed. It restarts automatically after a power outage and has a clear media window.

Print method

Direct thermal (ZD230DA) or thermal transfer (ZD230TA)

Resolution

203 dpi; optional 300 dpi

Print speed

152 mm/s (203 dpi); 127 mm/s (300 dpi)

Print width

Up to 104 mm (203 dpi) / 106 mm (300 dpi); label length 25.4–990 mm

Media

Width 25.4–112 mm; thickness 0.06–0.1905 mm; roll OD up to 127 mm; core 12.7 mm and 25.4 mm (38.1 mm with adapter)

Ribbon

74–300 m; width 33.02–110 mm; OD 34 mm (74 m) / 66 mm (300 m) (ZD230TA)

Connectivity

USB; optional USB-to-serial

Printer languages

ZPL II, EPL 2, XML, TSPL subset

Memory

8 MB flash, 16 MB SDRAM

Options

No media handling options (no peeler/cutter); no real-time clock

Operating temperature

5 °C to 40 °C; humidity 25%–85%

Dimensions and weight

ZD230DA: 220 x 180 x 150 mm (L x W x H), 1.2 kg; ZD230TA: 267 x 202 x 192 mm, 1.8 kg

Colour

Grey or white

Warranty

2 years

Accessories

USB-to-serial communication option; 38.1 mm core adapters
