Zebra 4Sight vision controllers · Mid range

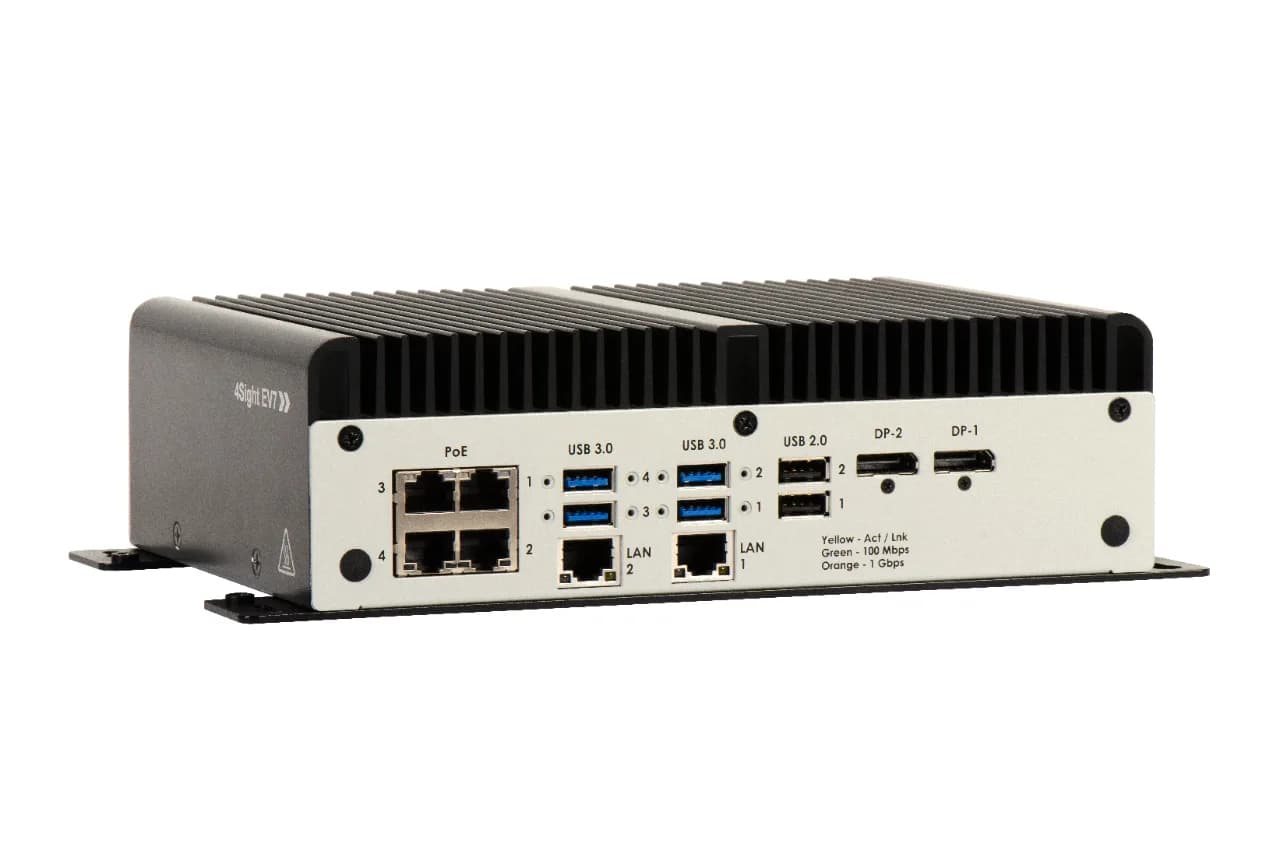

4Sight EV7
Fanless industrial PC with a 12th-gen 12-core Intel Core processor and deep learning inference acceleration for multi-camera machine vision.
Zebra 4Sight EV7 is an industrial PC with a 12th-generation 12-core Intel Core processor and deep learning inference acceleration, designed for multi-camera machine vision on the factory floor. The fanless design reduces service downtime. It supports four GigE Vision and four USB3 Vision cameras, and PoE ports simplify cabling. It runs deep learning and traditional machine vision applications, and two additional Gigabit Ethernet ports connect separately to factory and enterprise networks.
Variants
- EV7I3M8: Core i3-1220PE, 8 GB DDR5; partially licensed
- EV7I5M16: Core i5-1250PE, 16 GB DDR5; partially licensed
- EV7I5M16DA: Core i5, 16 GB; Aurora Design Assistant design and runtime environments; partially licensed
- EV7I5M16DAP: Core i5, 16 GB; fully licensed for Design Assistant and Imaging Library
- EV7I5M16AVS: Core i5, 16 GB; Aurora Vision Studio Professional and Runtime
- Processor and memory
- Intel Core i5-1250PE or i3-1220PE; 2 x DDR5-4800 SODIMM (8 or 16 GB); 256 GB M.2 NVMe SSD
- Camera ports
- 6 Ethernet: 4 x 2.5 GbE with PoE (up to 15.4 W per port) + 2 standard GbE; 4 USB 3.2 + 2 USB 2.0
- Interfaces
- 2 x DisplayPort DP++ (up to 4096 x 2304 at 60 Hz); RS-232, RS-232/RS-485; 16 digital I/O (8 inputs, 8 open-collector outputs); M.2 slots; audio in/out
- Power
- 9–27 V DC (nominal 24 V DC)
- Software
- Windows 10 IoT Enterprise (64-bit); Aurora Imaging Library and Design Assistant runtime environments; Aurora Vision Studio on EV7I5M16AVS
- Protection
- Fanless enclosure
- Operating temperature
- 0 °C to 50 °C
- Dimensions and weight
- 22.5 x 15.0 x 6.8 cm; horizontal or vertical mounting
- Accessories
- EVPS 150 W AC/DC power adapter
Pricing
For enterprise hardware, price depends on quantity, configuration and service package. Add it to your quote list and we'll price it the same business day.
Use cases
- Multi-camera machine vision on the factory floor
- Deep learning-based inspection
- Traditional machine vision applications
- Vision systems built with 3S40, 3S80, AltiZ 4200 and CV60
- GigE Vision and USB3 Vision camera systems
Not the right fit for
- Not suited to installations that need more than 4 PoE cameras; the unit has 4 PoE ports.
- Not suited to environments above 50 °C; the operating range is 0 °C to 50 °C.
- Not suited to CXP or Camera Link cameras that need a PCIe frame grabber; there is no PCIe expansion slot.
