Zebra 4Sight vision controllers · Mid range

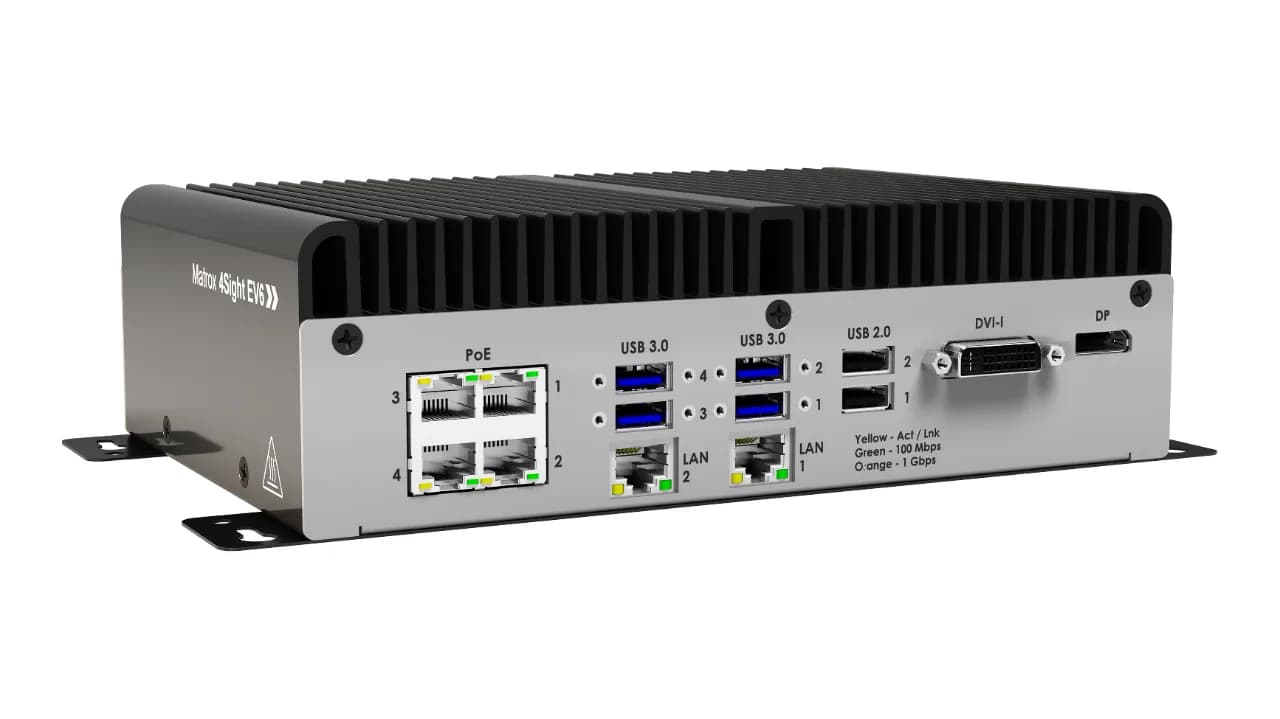

4Sight EV6
Fanless industrial PC with a 7th-generation quad-core Intel Core processor for demanding multi-camera machine vision on the factory floor.
Zebra 4Sight EV6 is a fanless industrial PC with a 7th-generation quad-core Intel Core processor, designed for machine vision on the factory floor. The fanless design reduces service downtime. It supports four GigE Vision and four USB3 Vision cameras, and PoE ports simplify GigE cabling. Two additional Gigabit Ethernet ports connect separately to factory and enterprise networks.
Variants
- EV6I5M16: Aurora Imaging Library and Aurora Design Assistant runtime environments; partially licensed
- EV6I5M16DA: Aurora Design Assistant design and runtime environments; partially licensed
- EV6I5M16DA+: fully licensed for Aurora Design Assistant and Aurora Imaging Library
- Processor and memory
- Intel Core i5-7442EQ; HM175 PCH; 16 GB DDR4 (2 x SODIMM slots); 64 GB M.2 2280 SATA SSD
- Camera ports
- 6 Gigabit Ethernet: 4 PoE ports (max. 15.4 W per port) + 2 standard ports; 4 USB 3.0 + 2 USB 2.0
- Interfaces
- DisplayPort (up to 4096 x 2304 at 60 Hz), DVI-I; RS-232, RS-232/RS-485; 16 digital I/O: 8 inputs (up to 24 V), 8 open-collector outputs (max. 100 mA at 24 V DC); audio in/out
- Power
- 9–27 V DC (nominal 24 V DC, 4.2 A)
- Software
- Windows 10 IoT Enterprise 2019 (64-bit); Aurora Imaging Library and Aurora Design Assistant runtime environments preinstalled; optional Design Assistant development environment
- Protection
- Fanless enclosure
- Operating temperature
- 0 °C to 50 °C
- Dimensions and weight
- 22.5 x 15.0 x 6.8 cm; horizontal or vertical mounting
- Accessories
- EV6PS 150 W AC/DC power adapter (100–240 V AC / 24 V DC)
Pricing
For enterprise hardware, price depends on quantity, configuration and service package. Add it to your quote list and we'll price it the same business day.
Use cases
- Multi-camera machine vision on the factory floor
- Inspection at multiple points
- GigE Vision and USB3 Vision camera systems
- Vision stations connected separately to factory and enterprise networks
Not the right fit for
- Not suited to installations that need more than 4 PoE GigE cameras; the unit has 4 PoE ports.
- Not suited to environments above 50 °C; the operating range is 0 °C to 50 °C.
- Not suited to CXP or Camera Link cameras that need a PCIe frame grabber; there is no PCIe expansion slot.
