Zebra ZT series · Premium

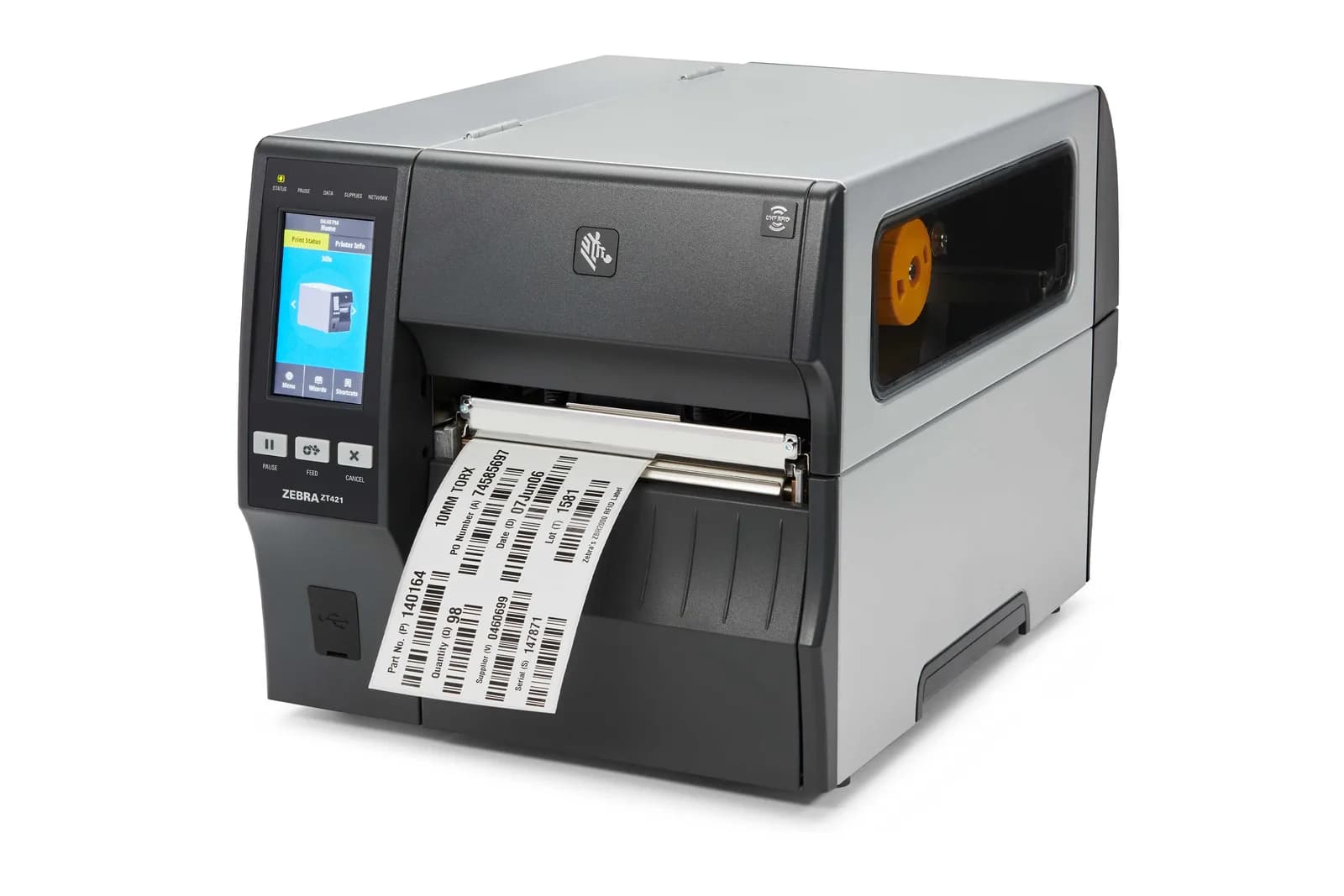

ZT411 / ZT421

4- and 6-inch industrial printers with an all-metal frame and bi-fold door, delivering advances in print speed, positioning and connectivity.

A side-loading, colour-coded and illuminated media path makes loading easy. A 4.3-inch colour touch display speeds up settings. It can print on a wide range of label formats and media types. The linerless model is part of the ZeroLiner solution, delivering up to 50% more labels per roll and less waste.

Print method

Thermal transfer and direct thermal (linerless direct thermal only)

Resolution

203/300 dpi; 600 dpi optional on ZT411

Print speed

ZT411: up to 356 mm/s (14 ips); ZT421: up to 305 mm/s (12 ips)

Print width

ZT411: 104 mm; ZT421: 168 mm; print length up to 3,988 mm on ZT411 (203 dpi) and 2,591 mm on ZT421

Media

Width ZT411 25.4–114 mm, ZT421 51–178 mm; roll 203 mm OD, 76 mm core; thickness 0.058–0.25 mm; continuous, die-cut, notched, black mark, linerless (linerless model only)

Ribbon

450 m; width ZT411 51–110 mm, ZT421 51–174 mm

Connectivity

USB 2.0, RS-232 serial, 10/100 Ethernet, Bluetooth 4.2, dual USB Host; two open communication slots: Wi-Fi 6 + Bluetooth 5.3, Wi-Fi 5 + Bluetooth 4.2, parallel, 10/100 Ethernet, applicator interface

RFID

Field-upgradable UHF RFID option

Memory

256 MB SDRAM, 512 MB flash

Display

4.3-inch colour touch display

Options

Rewind, peeler, cutter, automation kit for ZT411

Operating temperature

Thermal transfer 5 °C to 40 °C; direct thermal 0 °C to 40 °C

Dimensions and weight

ZT411: 495 x 269 x 324 mm, 16.33 kg; ZT421: 495 x 336 x 324 mm, 18.14 kg

Accessories

Communication cards, linerless upgrade kit, automation kit, ZKDU
