Zebra ZQ series · Premium

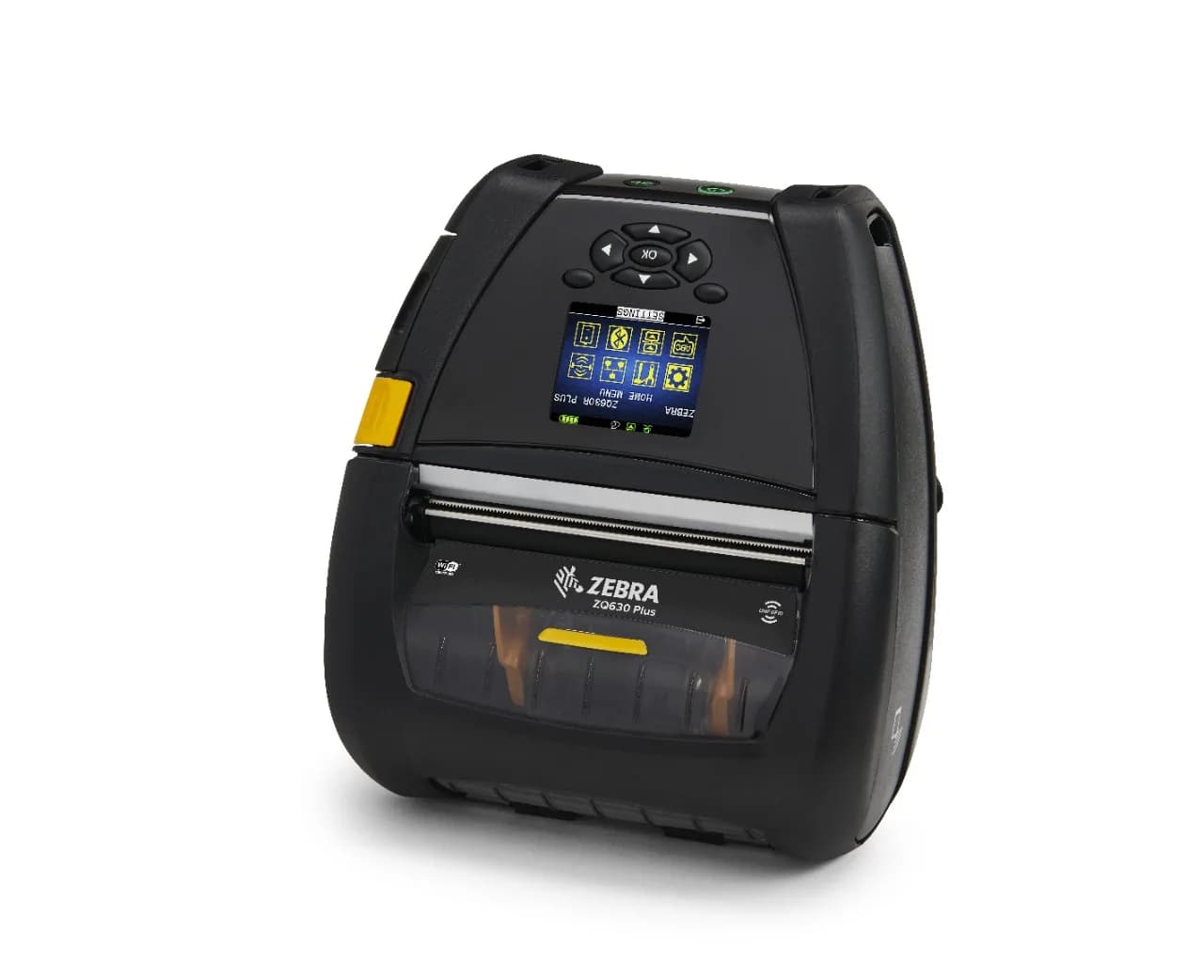

ZQ630 Plus RFID
4-inch RFID mobile printer that saves time and reduces errors by printing and encoding RFID labels and tags on the spot.
A dual-radio 802.11ax (Wi-Fi 6) + Bluetooth 5.3 option with 802.11r fast roaming is available, as is a Wi-Fi 5 + Bluetooth 4.2 model. Automatic calibration eliminates complex RFID placement rules. The PowerPrecision+ battery is among the highest capacity in its class. It uses different firmware and drivers from the previous ZQ630 RFID.
- Print method
- Direct thermal
- Resolution
- 203 dpi
- Print speed
- Up to 115 mm/s (4.5 ips)
- Print width
- Up to 104 mm; print length 12.7–813 mm
- Media
- Die-cut labels, receipt paper, RFID, black bar; width 51–112 mm (lined); roll OD up to 66 mm (core 19 mm or 34.9 mm); RFID requires black-mark media, no gap sensing
- Connectivity
- Wi-Fi 6 (802.11ax) + simultaneous Bluetooth 5.3 (MIMO) or Bluetooth 4.2 (Classic + BLE); USB 2.0 (mini-B); 14-pin RS-232C serial; 10/100 Ethernet via cradle; NFC (Print Touch)
- RFID
- UHF EPC Gen 2 V2, ISO/IEC 18000-63 and RAIN RFID compliant; Gen2X supported; minimum 16 mm pitch; SGTIN-96, DSGTIN+, GS1 TDS 2.0, RAIN ISO CIN encoding; MCS serialisation; integrated reader/encoder
- Memory
- 256 MB RAM, 512 MB flash
- Printer languages
- CPCL, EPL, ZPL
- Battery
- 6,600 mAh (47.5 Wh) PowerPrecision+
- Durability
- 1.83 m drops to concrete; IP54
- Display
- Colour display (288 x 240)
- Operating temperature
- -20 °C to 50 °C
- Dimensions and weight
- 187 x 165 x 82.5 mm; 1.1 kg with battery
- Warranty
- 1 year
Pricing
For enterprise hardware, price depends on quantity, configuration and service package. Add it to your quote list and we'll price it the same business day.
Use cases
- Markdown, price change and return labels in retail
- RFID case and pallet labels
- Shipping and receiving labels
- Forklift-mounted use
- Airline baggage tags and freight management
- Specimen, pharmacy and asset labels in healthcare
- Medical device labelling
Not the right fit for
- Gap RFID labels: RFID encoding requires black-mark media.
- Thermal transfer (ribbon) printing: the printer prints direct thermal only.
- Environments below -20 °C or above 50 °C: they fall outside the operating temperature range.
