Zebra ZQ500 series · Premium

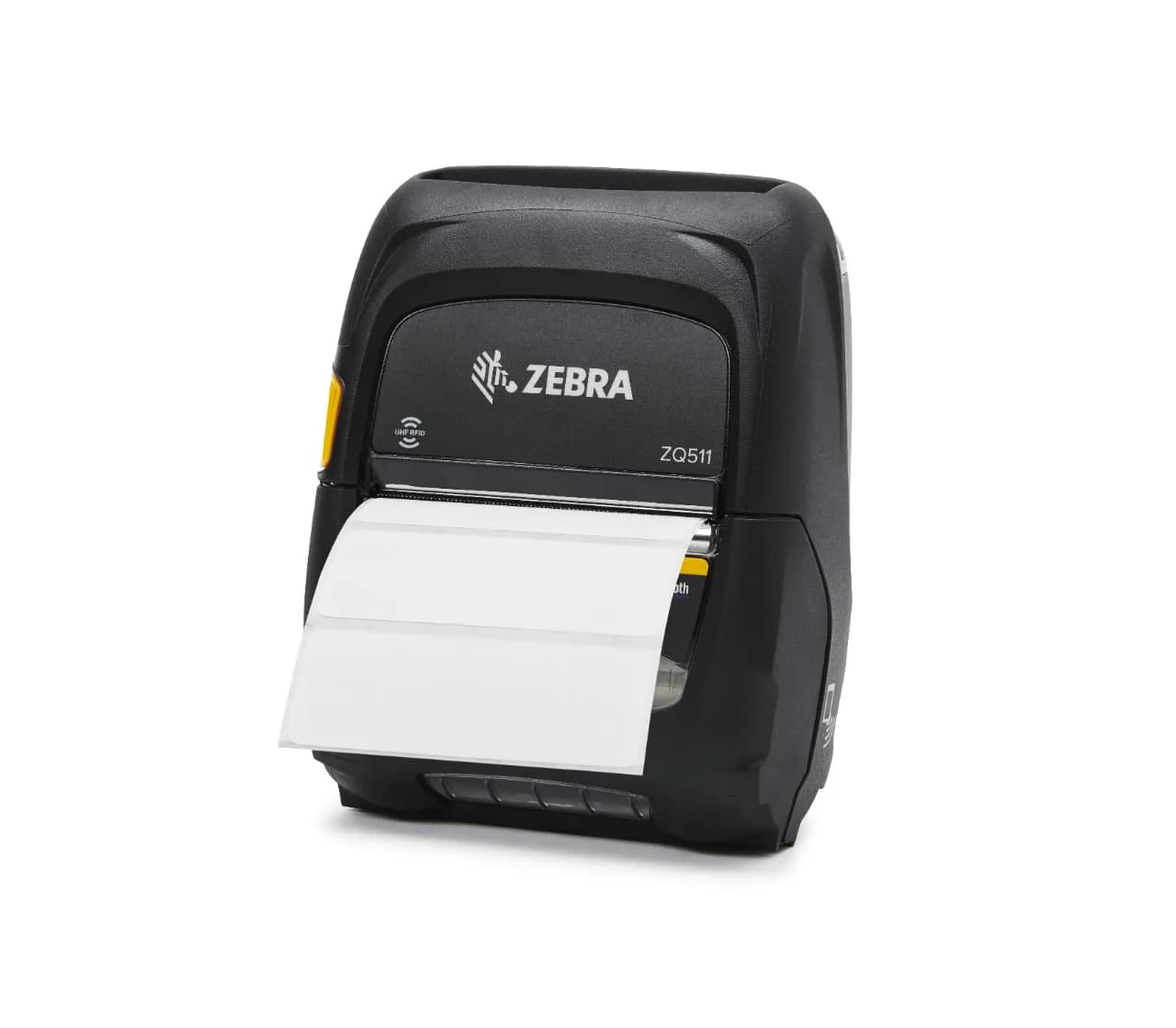

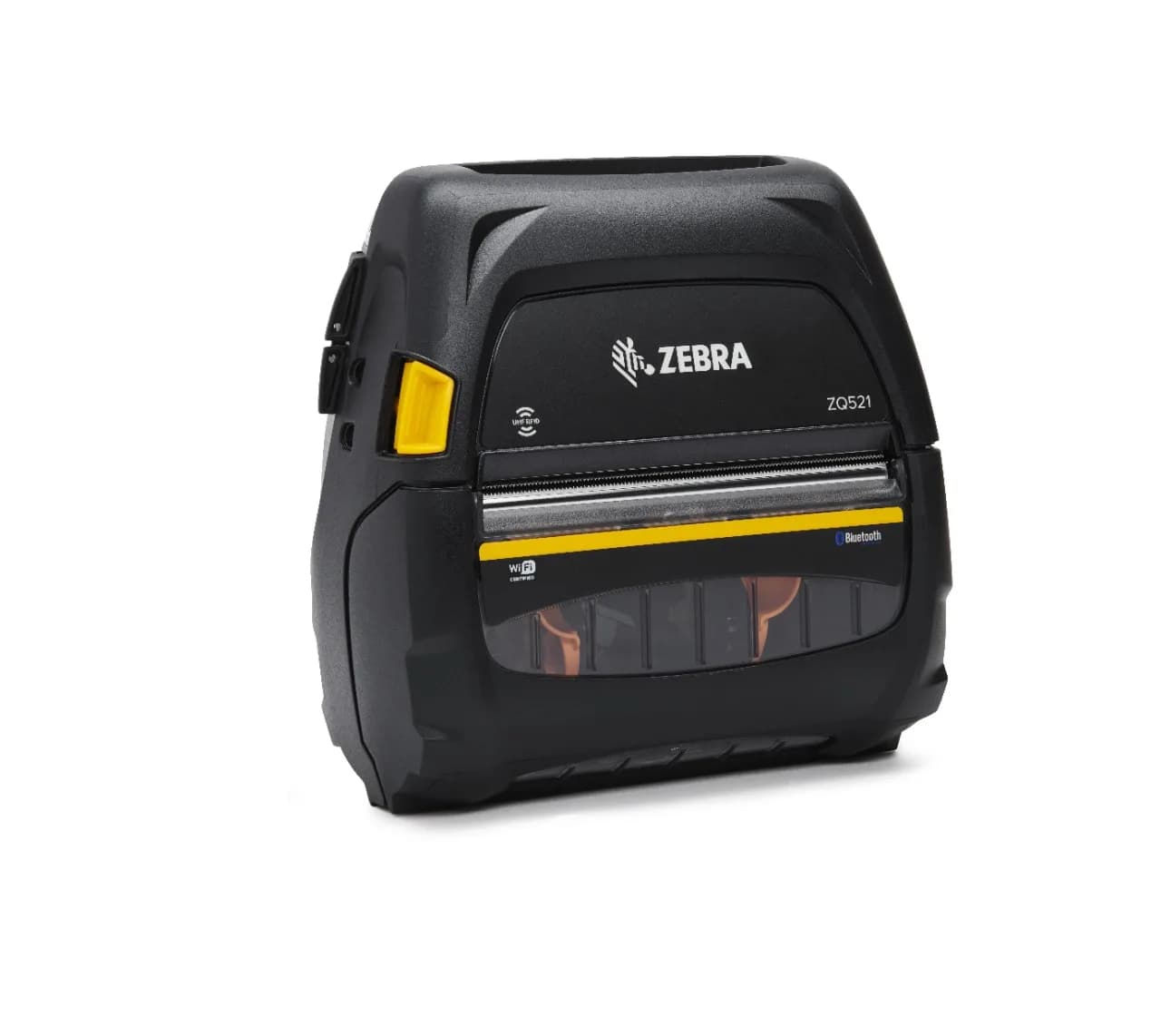

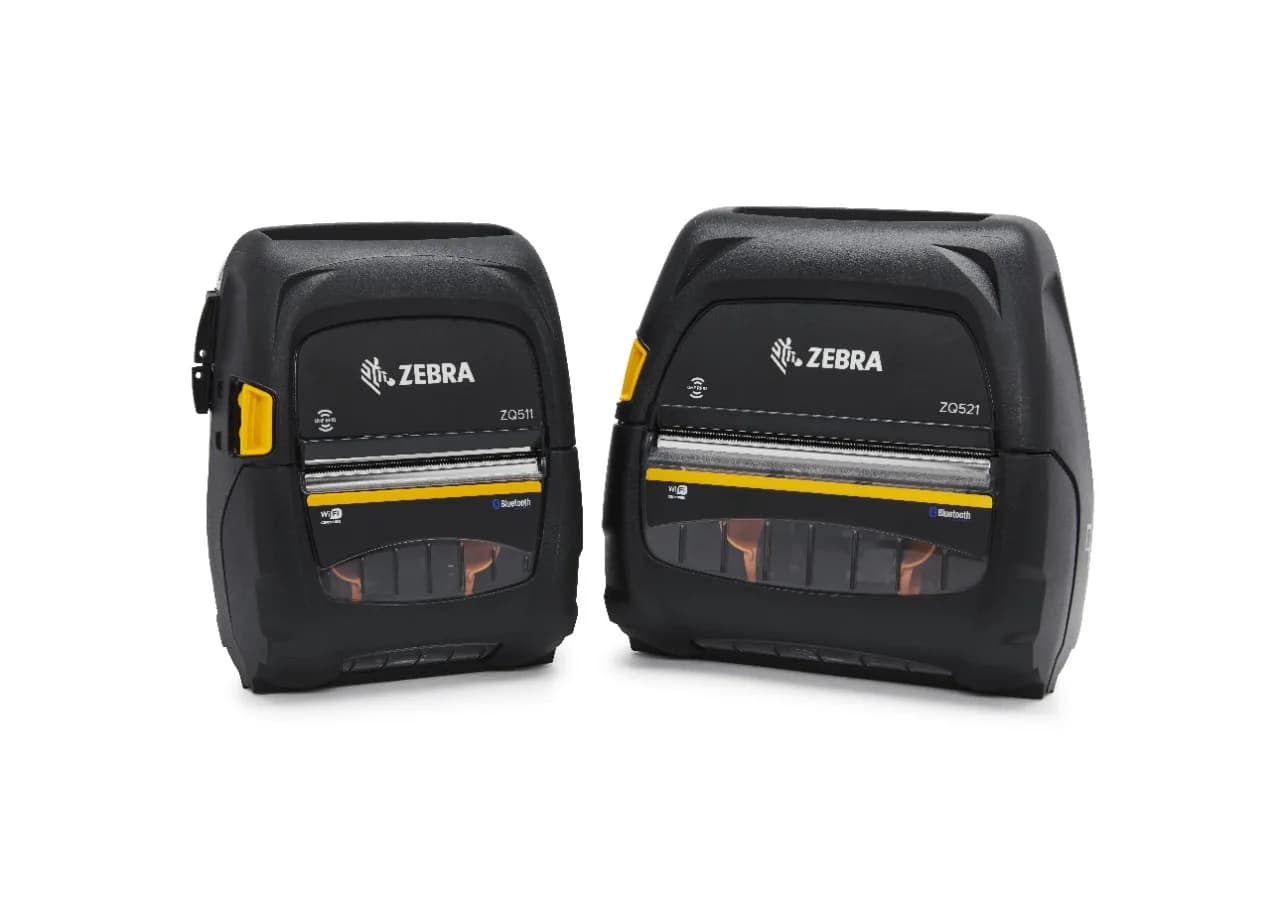

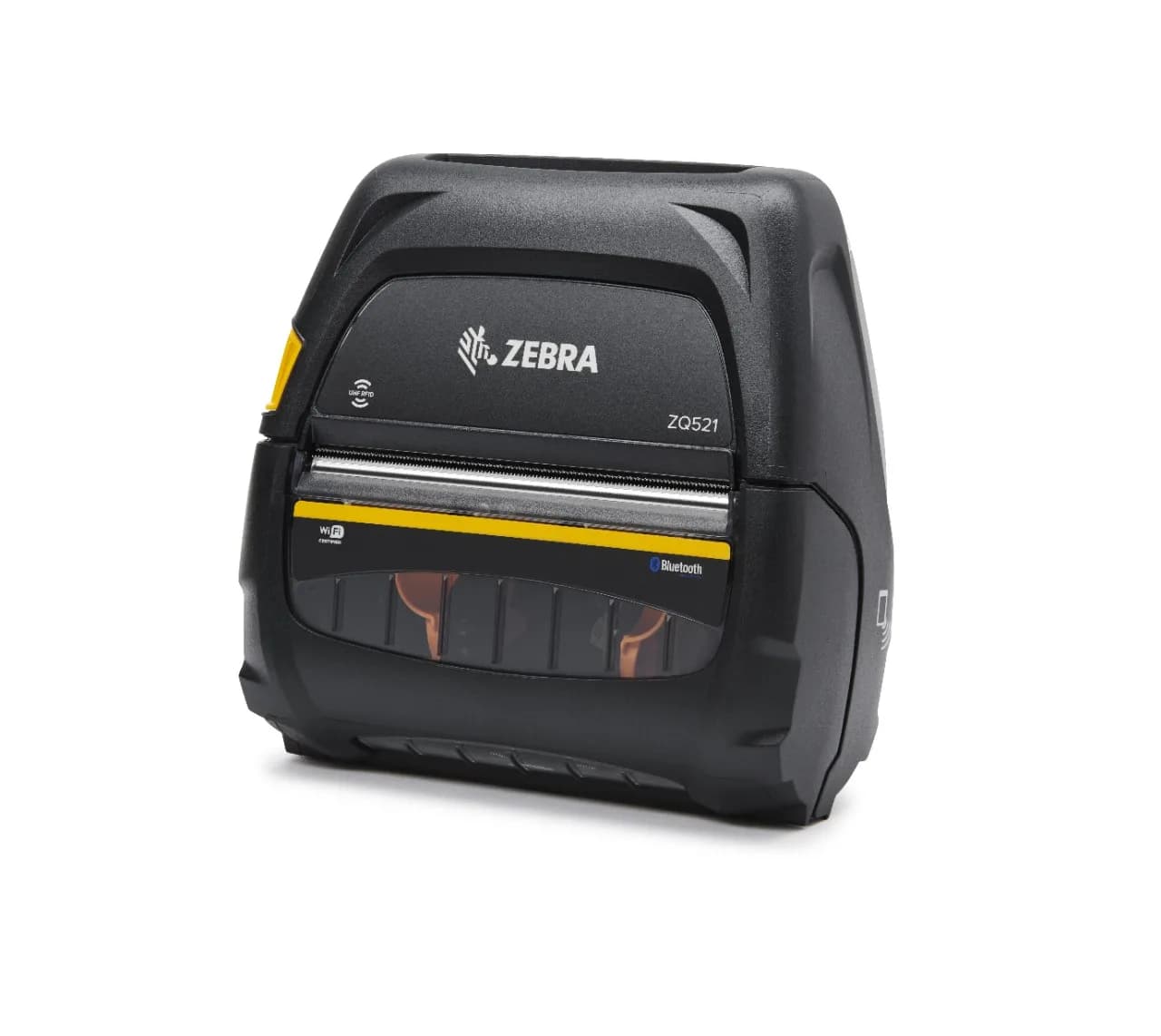

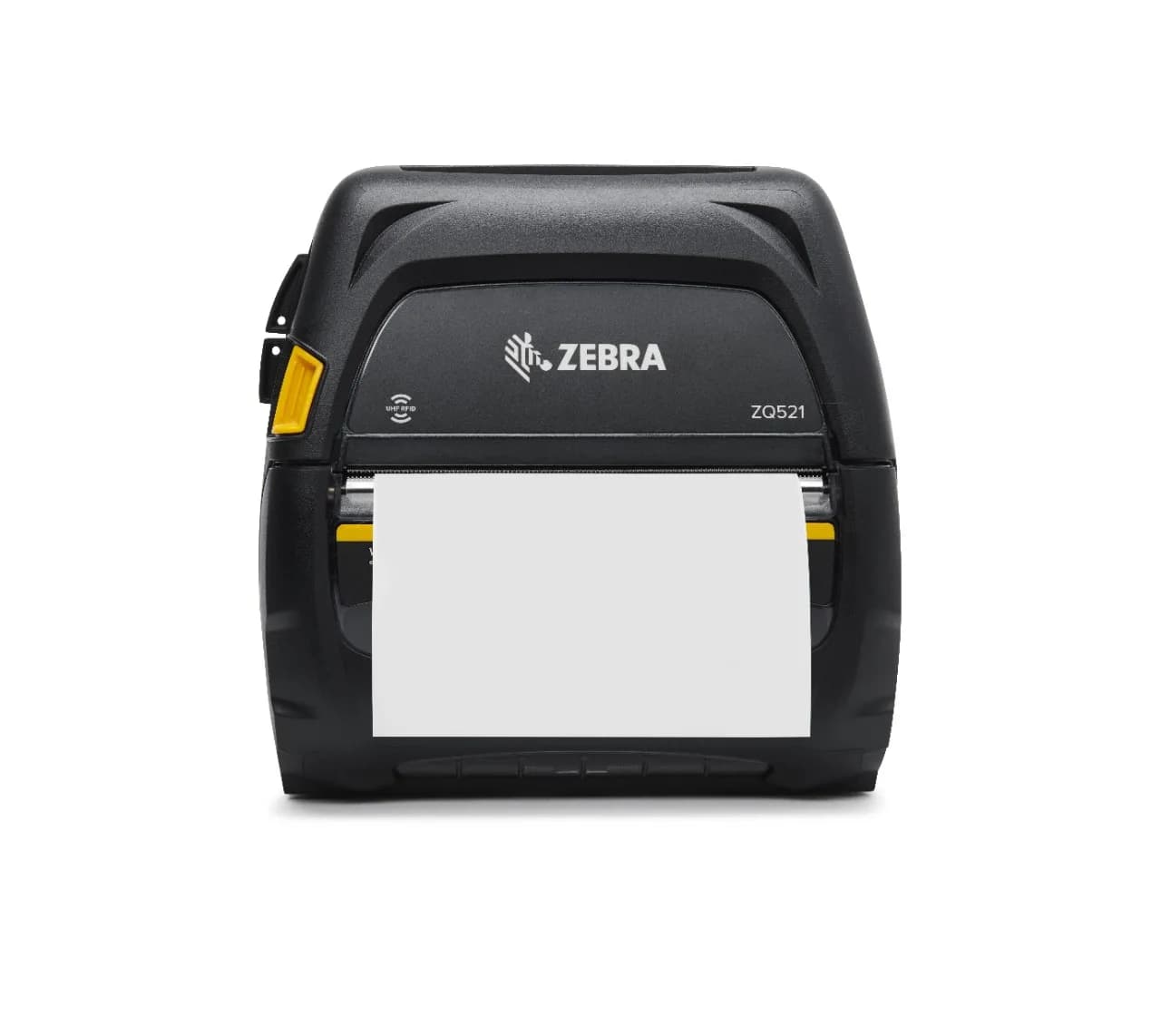

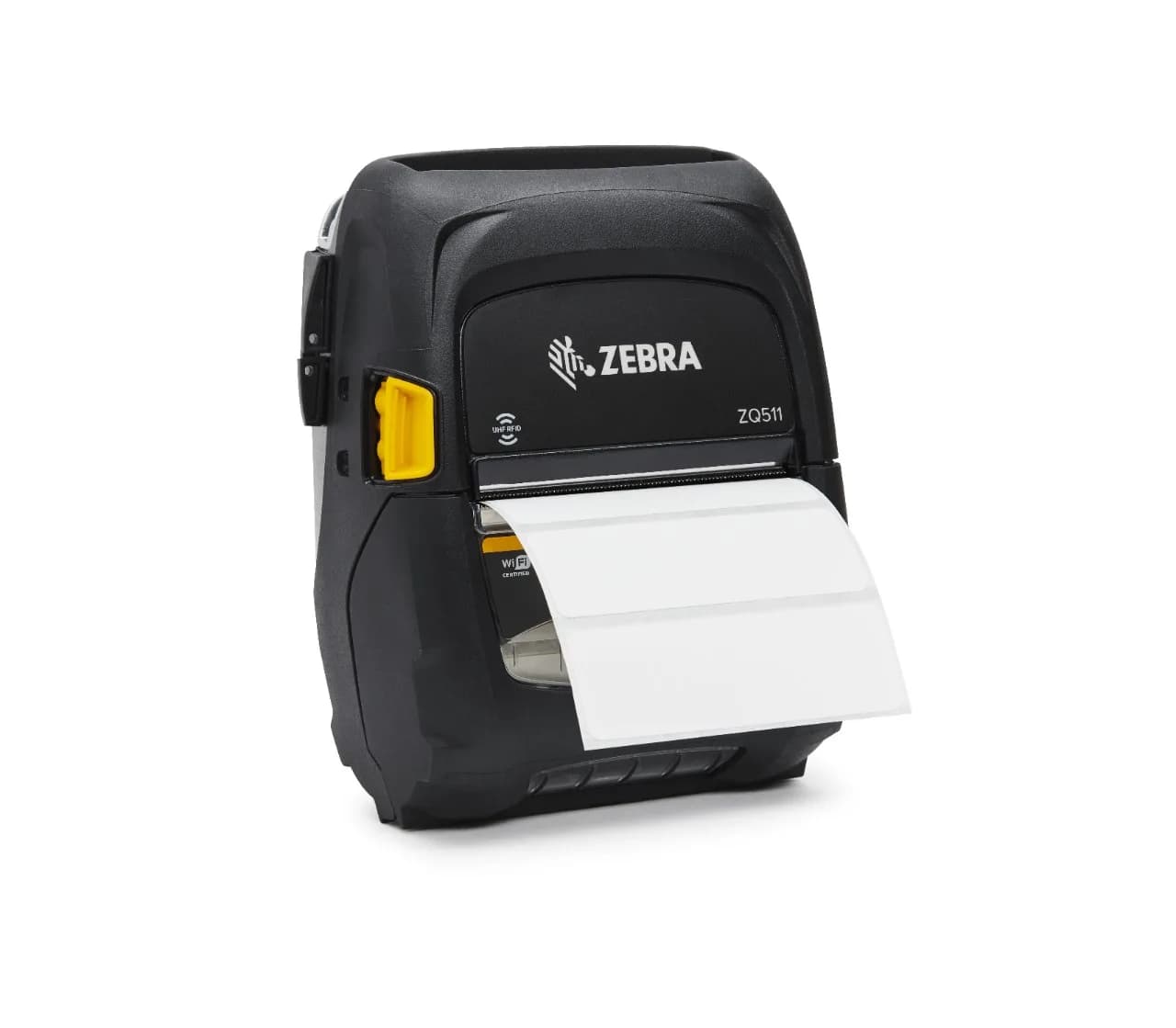

ZQ511R / ZQ521R
Military-grade rugged mobile printers that print and encode 3-inch (ZQ511R) and 4-inch (ZQ521R) UHF RFID labels on demand.
Adaptive encoding technology provides automatic RFID calibration. They are designed and certified to MIL-STD 810G for drops and shocks and have IP54 protection. 802.11ac Wi-Fi and Bluetooth 4.1 connectivity are included.
Variants
- ZQ511R: 3-inch; print width 72 mm; media 35–80 mm; 150 x 120 x 62 mm; 0.63 kg with standard battery, 0.72 kg with extended battery.
- ZQ521R: 4-inch; print width 104 mm; media 50.8–113 mm; 158 x 155 x 67 mm; 0.79 kg with standard battery, 0.89 kg with extended battery.
- Print method
- Direct thermal
- Resolution
- 203 dpi
- Print speed
- Up to 127 mm/s (draft mode)
- Print width
- ZQ511R: 72 mm; ZQ521R: 104 mm; print length up to 99 cm
- Media
- Black-mark RFID labels, receipts, labels; RFID requires black-mark media, no gap sensing; width ZQ511R 35–80 mm, ZQ521R 50.8–113 mm; roll up to 51 mm (ZQ511R) / 57 mm (ZQ521R)
- Connectivity
- 802.11ac (2.4 and 5 GHz), Bluetooth 4.1 (Classic + BLE), USB 2.0 (mini-AB), NFC (Print Touch)
- RFID
- UHF EPC Gen 2 V2, ISO/IEC 18000-63 and RAIN RFID compliant tags; minimum 16 mm pitch; SGTIN-96, GS1 TDS 2.0, RAIN ISO CIN encoding; MCS serialisation; integrated reader/encoder; optional standard printing without RFID
- Battery
- 3,250 mAh PowerPrecision+ (optional 6,500 mAh)
- Durability
- 2 m drops to concrete; 1,300 tumbles from 1 m; IP54; MIL-STD 810G
- Operating temperature
- -20 °C to 55 °C; charging 0 °C to 40 °C
- Dimensions and weight
- ZQ511R: 150 x 120 x 62 mm, 0.63–0.72 kg; ZQ521R: 158 x 155 x 67 mm, 0.79–0.89 kg
- Warranty
- 2 years (battery 1 year, printhead 6 months)
- Accessories
- 6,500 mAh extended battery
More views
Pricing
For enterprise hardware, price depends on quantity, configuration and service package. Add it to your quote list and we'll price it the same business day.
Use cases
- Pallet labelling and cross-docking
- Field services and direct store delivery
- Airline baggage tags, postal and courier
- Asset management, specimen tracking and pharmacy inventory in healthcare
- Parts and asset tracking in government
- In-store RFID exception labels and click-and-collect
- Food supply chain traceability
Not the right fit for
- Gap RFID labels: RFID encoding requires black-mark media.
- Thermal transfer (ribbon) printing: the printers print direct thermal only.
- RFID encoding on labels with less than 16 mm pitch: the printers encode tags with a minimum 16 mm pitch.
