Zebra RFID antennas · Mid range

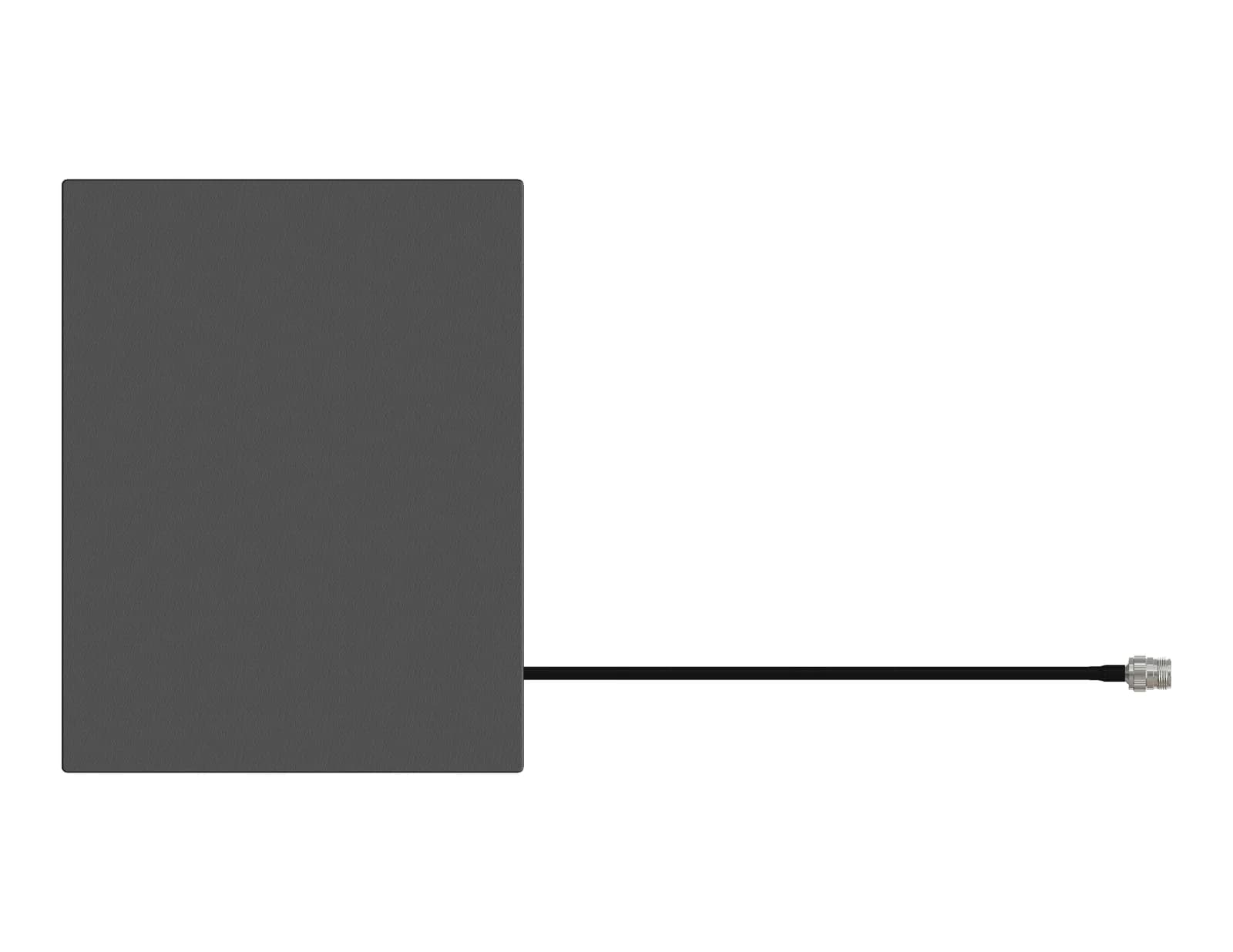

AN610
Space-saving, ultra-low-profile slimline RFID antenna with integrated mounting holes.
With its integrated mounting system it sits just under 12 mm from a horizontal or vertical surface. The sleek housing suits any business setting and withstands enclosed industrial environments. It is ideal for tight spaces such as wall mounts, doorways, under and on counters (RFID pad), shelves, point of sale, end-cap displays and jewelry counters.
- Type
- Ultra-low-profile UHF RFID antenna; indoor
- Frequency
- EU 865–868 MHz; US 902–928 MHz
- Gain
- 5.0 dBic
- Polarization
- Left-hand circular
- Beamwidth
- 3 dB, 80° in both planes; front-to-back ratio 18 dB; axial ratio below 2 dB
- Antenna / ports
- N-type female connector, side pigtail
- Power
- Max. 6 W; VSWR 1.4:1
- Protection
- IP54; aluminum housing, Kydex cover
- Operating temperature
- -20 °C to +55 °C
- Dimensions and weight
- 275 x 214 x 12 mm; 0.6 kg
- Mounting
- Flush mount; integrated mounting holes
Pricing
For enterprise hardware, price depends on quantity, configuration and service package. Add it to your quote list and we'll price it the same business day.
Use cases
- Point of sale and RFID pad applications
- Under-counter and in-shelf reading
- End-cap displays and jewelry counters
- Doorways and loading dock doors
- Server cabinets
- Inside medical cabinets
Not the right fit for
- Outdoor installation: designed for indoor use, protection rating is IP54.
- Input power above 6 W: maximum power is 6 W.
- Operation below -20 °C or above 55 °C: the operating range is -20 °C to +55 °C.
