Zebra TC series · Mid range

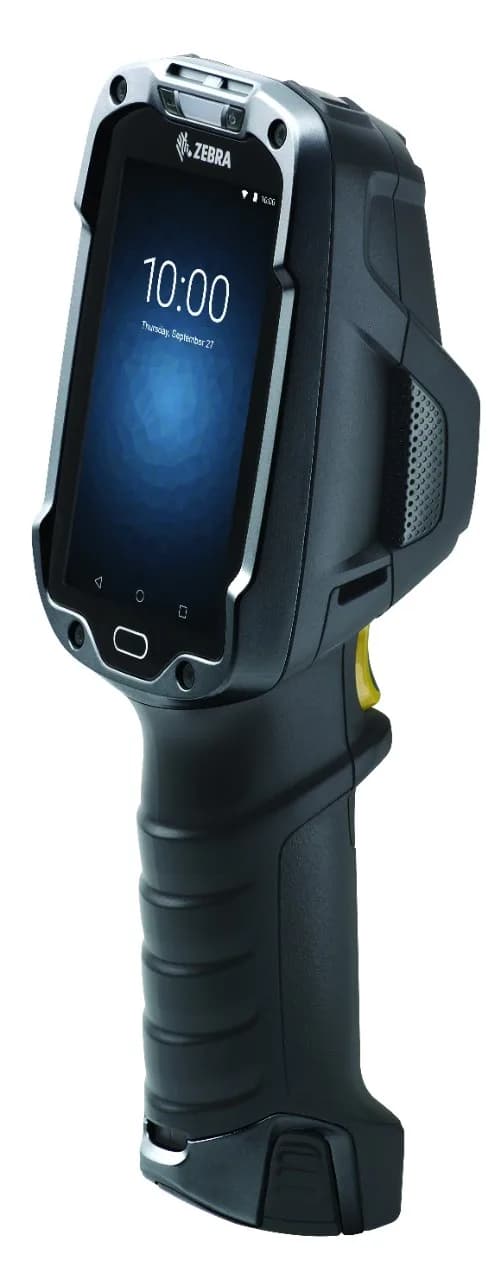

TC8300

A touch computer that aligns the scanner and display on the same axis, eliminating the need to tilt the device after every scan.

The TC8300 delivers fast application performance, ease of use, broad data capture options, new Wi-Fi and Bluetooth technology and strong battery power. It increases productivity by 14% compared with a typical handheld and reduces wrist motion by 55% and muscle effort by 15% compared with a gun-style device. All-Touch TE comes preloaded and licensed, easing the move from green screens to a modern interface.

Display

4.0" transflective LCD, 800 x 480, 400 nits, Corning Gorilla Glass; projected capacitive touch for bare or gloved hands or a conductive stylus (sold separately)

Operating system

Upgradable to Android 14

Processor and memory

Qualcomm Snapdragon 660, octa-core, 2.2 GHz; 4 GB RAM / 32 GB flash (pSLC); microSD (SDXC) slot

Scanner

SE4750 mid range, SE4770 standard range, SE4750 DPM (direct part marking) or SE4850 extended range; all 1D/2D; proximity sensor for hands-free scanning

Camera

Optional 13 MP rear camera, f/2.4

Connectivity

802.11 a/b/g/n/ac, 2x2 MU-MIMO; Bluetooth 5.0, BLE; optional NFC (ISO 14443 A/B, FeliCa, ISO 15693, HCE); USB 2.0 OTG

Battery

PowerPrecision+ Li-Ion, 7000 mAh; hot swap backup

Durability

IP65; multiple drops to concrete from 2.4 m at room temperature and 1.8 m across the operating temperature range (MIL-STD-810G); 2,000 tumbles from 1 m; optional condensation resistance

Operating temperature

-20 °C to +50 °C (storage -40 °C to +70 °C)

Dimensions and weight

233 x 76 x 64 mm; Base 490 g, Package 1 500 g

Accessories

Special conductive stylus (sold separately), shopping cart mount / holster attachment (detected by magnetic sensor), Bluetooth headset
