Zebra SP72 series · Mid range
SP72-H / SP72-V
Horizontal and vertical single-plane checkout scanners that improve the customer experience, reduce shrink and speed up checkout.
The SP72 series delivers best-in-class scanning performance with PRZM. It supports interlock EAS. Upward-facing good-read LEDs work with video-based loss prevention systems. It raises an alert for items that are not decoded (non-decode event).
Variants

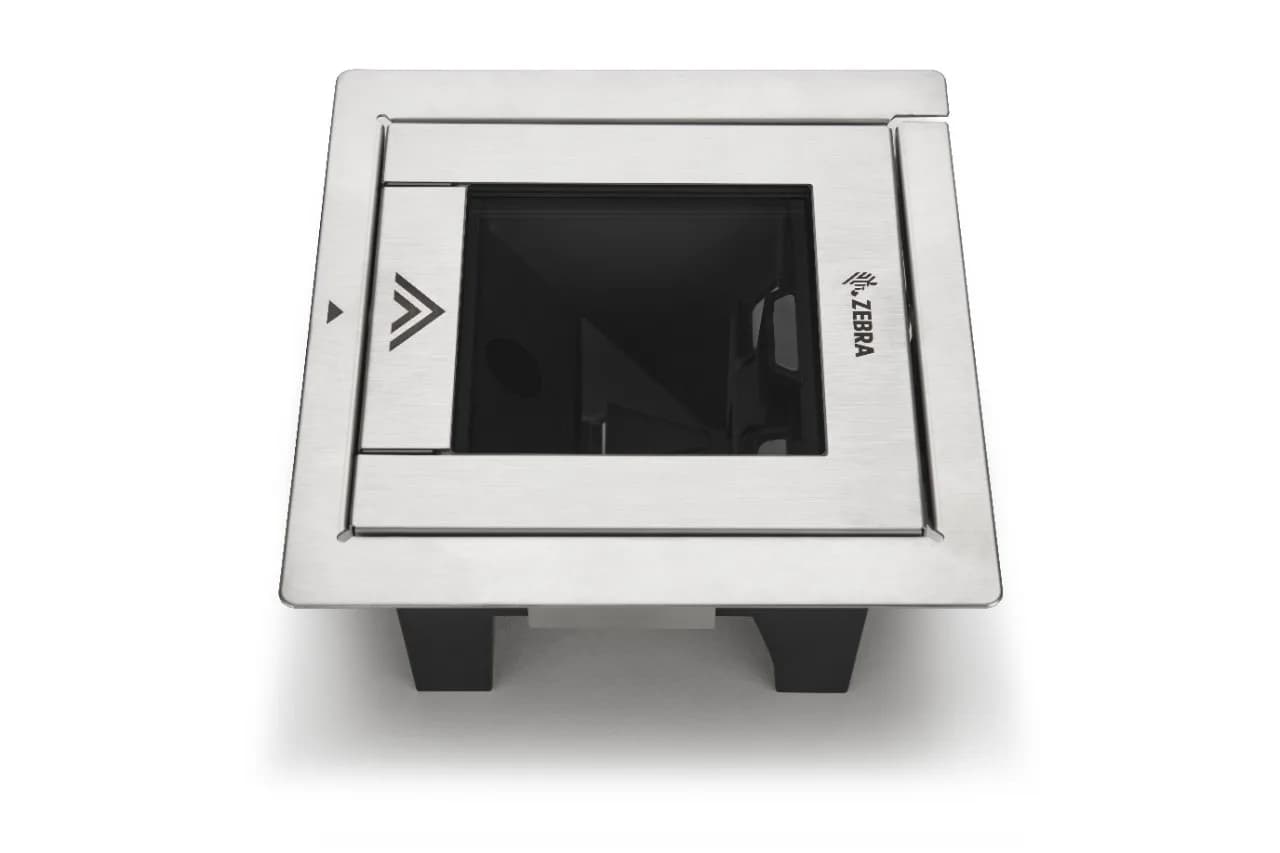

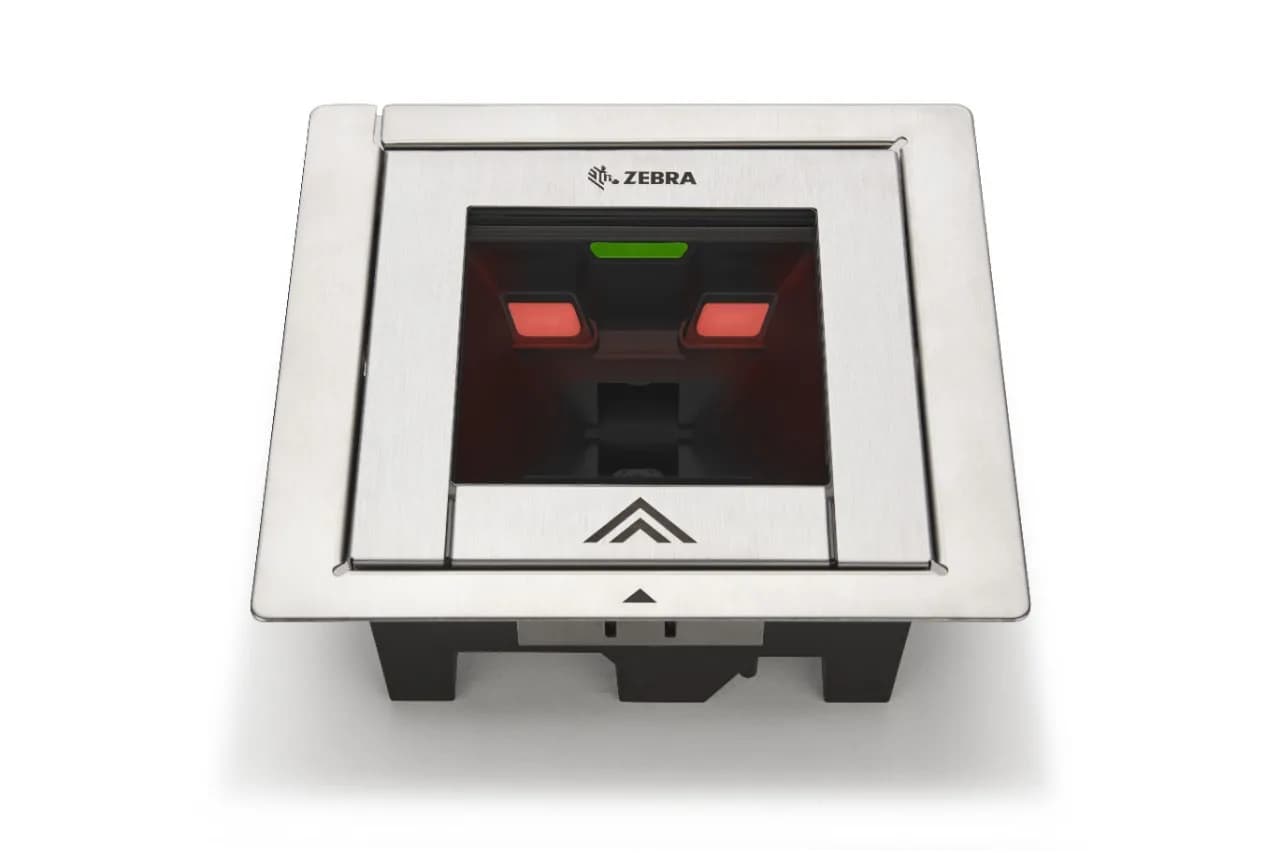

- SP72-H: Horizontal; sapphire glass (864 g) or DLC glass (834 g); 15.2 x 15.2 x 8.6 cm; bucket mount; external speaker port.

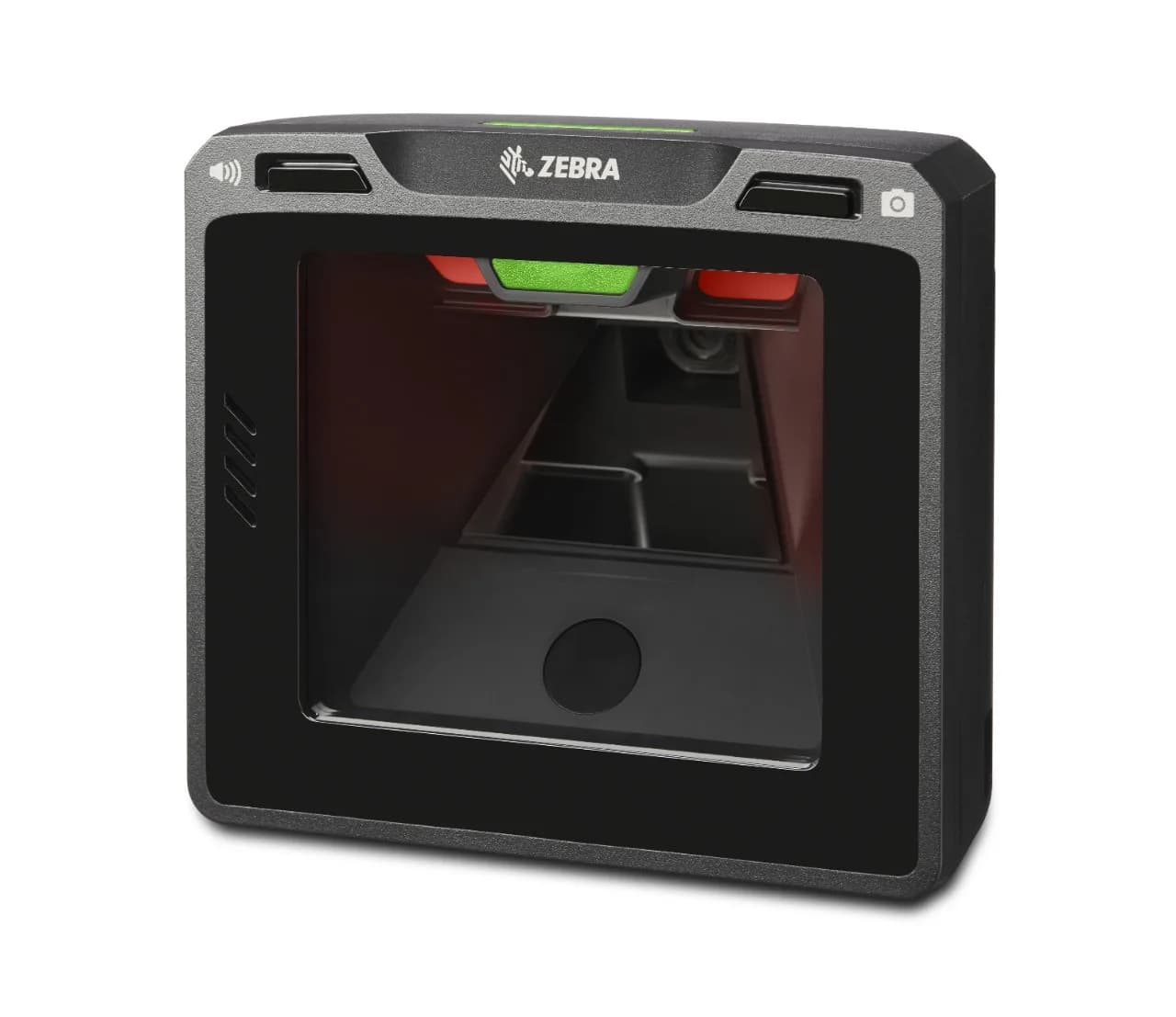

- SP72-V: Vertical; 577 g, 602 g with color camera; 13.7 x 15.2 x 8.4 cm; optional 2.3 MP color camera (SP7208-V); front and top LEDs.
- Type
- Checkout, single-plane (horizontal / vertical)
- Connectivity
- Corded
- Symbologies
- 1D, 2D (SecurPharm), Digimarc; 2.3 MP sensor
- Read range
- SP72-V / SP72-H: UPC-A 13 mil: 0–21.8 cm / 0–18.2 cm; QR 20 mil: 0–19.1 cm / 0–16.0 cm
- Swipe speed
- Up to 305 cm/s
- Interfaces
- USB, RS232, keyboard wedge, TGCS (IBM) 46XX over RS485; Checkpoint and Sensormatic EAS
- Durability
- IP52
- Operating temperature
- 0 °C to 50 °C
- Dimensions and weight
- SP72-H: 15.2 x 15.2 x 8.6 cm, 834–864 g; SP72-V: 13.7 x 15.2 x 8.4 cm, 577–602 g
- Accessories
- SP72-V: table and raised mounting bracket; SP72-H: bucket mount, DLC and sapphire glass plates
More views
Pricing
For enterprise hardware, price depends on quantity, configuration and service package. Add it to your quote list and we'll price it the same business day.
Use cases
- Grocery, supermarket and hypermarket checkouts
- Specialty retail
- Pharmacy
- Staffed and self-checkout POS
- EAS integration
- Vision-based loss prevention
Not the right fit for
- Not suited to long-distance scanning; the maximum range is about 22.9 cm.
- Not suited to mobile use; it is a fixed scanner mounted in the checkout.
- Not suited to checkouts that need a scale; the SP72 series has no scale.
