Zebra MP72 series · Premium

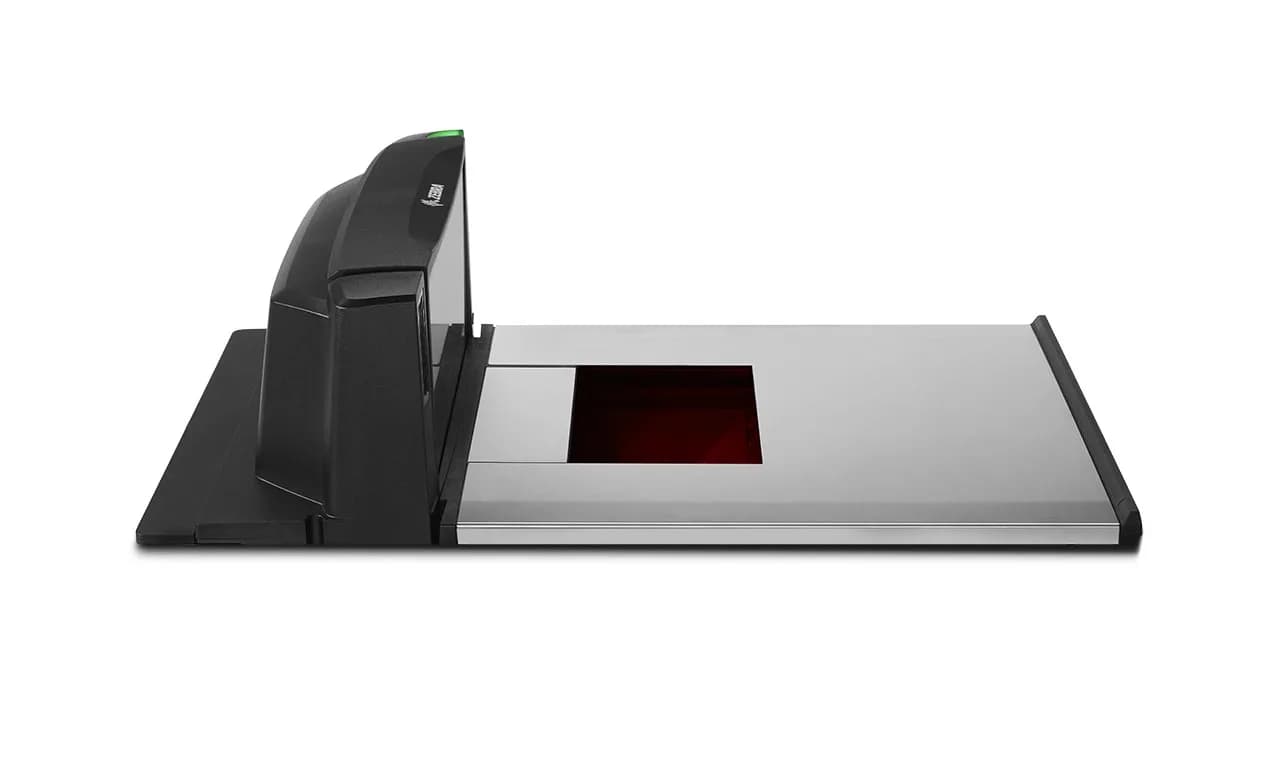

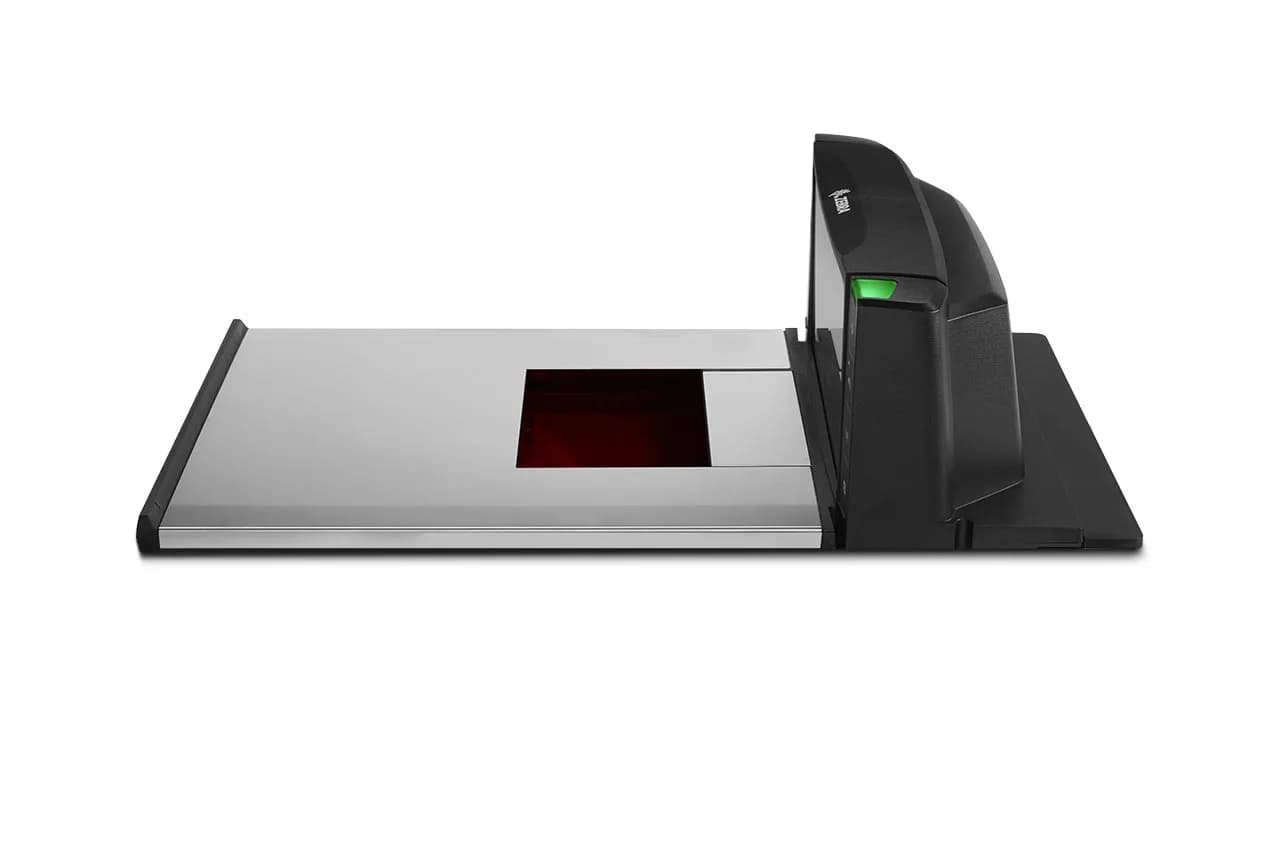

MP72
A multi-plane (bioptic) barcode scanner/scale delivering the fastest checkout performance yet.
The MP72 offers a high swipe speed and the largest scan volume in its class. An optional HD color camera supports loss prevention and product recognition. It is ready for 2D and GS1 Digital Link. Smart illumination uses up to 50% less energy than other bioptics.

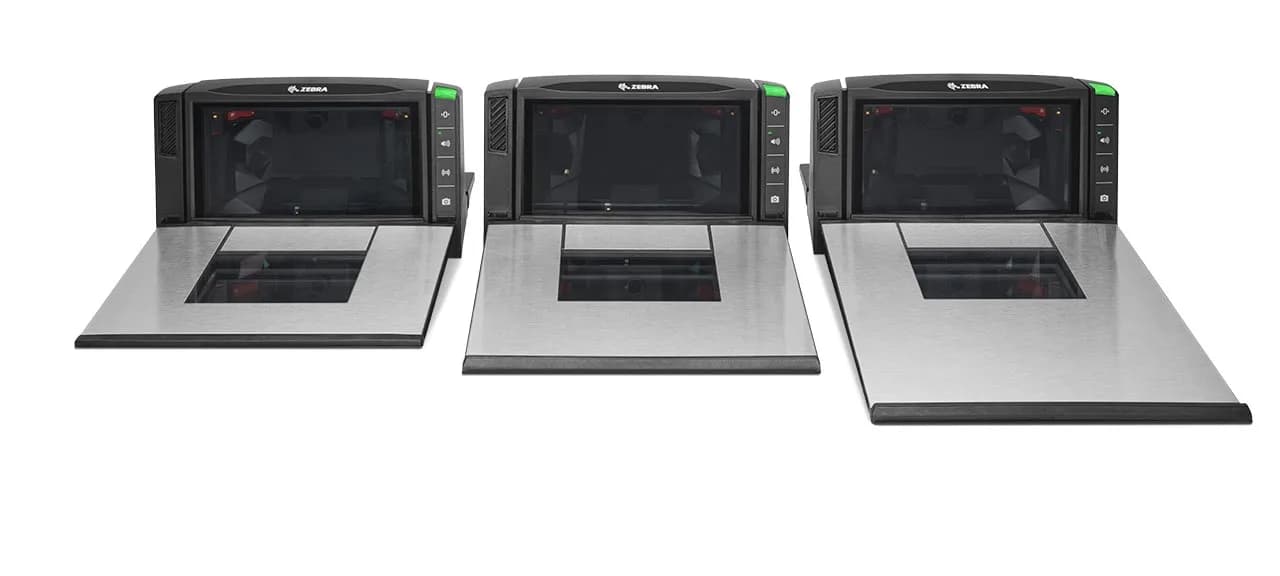

Variants
- Long: 506 mm; scanner 5.94 kg, with scale 8.10 kg.
- Medium: 398 mm; scanner 5.06 kg, with scale 7.22 kg.
- Short: 351 mm; scanner 5.22 kg (no scale).
- Optional HD color camera (USB 3 Type-C).
- Type
- Checkout bioptic (multi-plane), optional scale
- Connectivity
- Corded
- Symbologies
- 1D, 2D (SecurPharm, GS1 Digital Link), Digimarc; CMOS array imager; 1D and 2D reading on all planes
- Interfaces
- USB, RS232, IBM 46XX over RS485, SNAPI; single common POS port; 3 USB peripheral ports; 2 powered RS-232 ports; Checkpoint interlock port; remote scale display port; USB 3 Type-C for color camera
- EAS
- Compatible with Checkpoint and Sensormatic EAS deactivation
- Scale
- 15 kg in 5 g increments (30 lb in 0.01 lb increments); maximum static load 136 kg; compatible with Mettler price-computing scales; single/dual-head remote scale display
- Durability
- IP5X
- Operating temperature
- 0 °C to 40 °C
- Dimensions and weight
- Width 292 mm, depth 101 mm, height 128 mm; length 351 / 398 / 506 mm; weight 5.06–8.10 kg (by length and scale)
- Accessories
- Customer-facing scanner, pole displays, single- and dual-head remote scale display
More views
Pricing
For enterprise hardware, price depends on quantity, configuration and service package. Add it to your quote list and we'll price it the same business day.
Use cases
- Grocery, supermarket and hypermarket checkouts
- Mass merchandise, discount stores and warehouse clubs
- Pharmacy
- Staffed and self-checkout lanes
- Paper and mobile barcode scanning
- Product identification and loss prevention
- Age verification, EAS and loyalty cards
- Vision-based applications
Not the right fit for
- Not suited to ambient temperatures above 40 °C; the operating range is 0–40 °C.
- Not suited to environments that need full protection against dust and water; the rating is IP5X, with no water rating.
- Not suited to weighing above 15 kg; scale capacity is 15 kg.
