Zebra DS3600 series · Premium

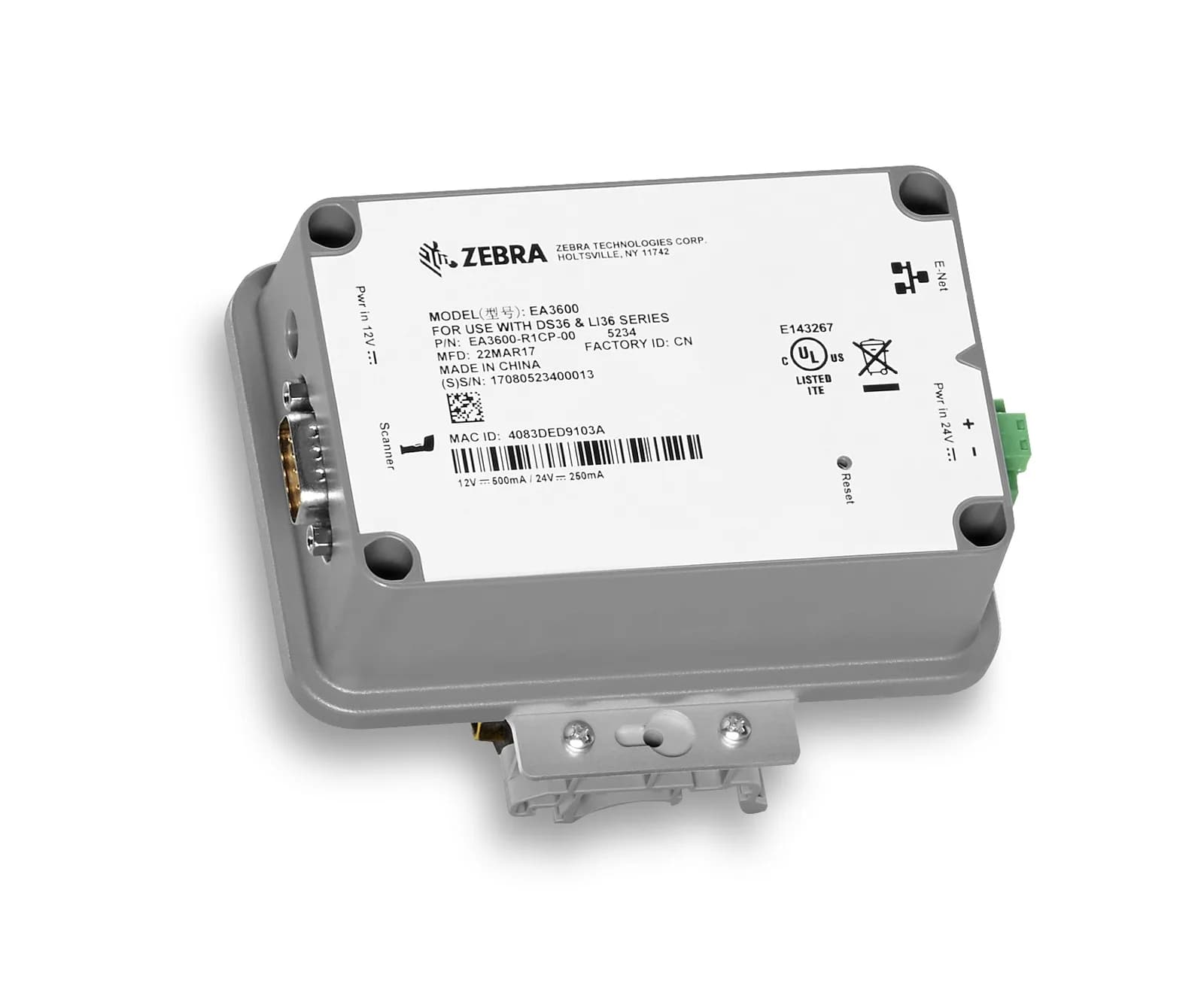

EA3600
A network module that connects 3600 Series scanners directly to a PLC and industrial Ethernet network without third-party converters.
EA3600 Network Connect removes converter boxes, eliminating a point of failure on the network and reducing the risk of unplanned downtime. It supports common industrial Ethernet protocols. It is purpose-built for the factory floor for all 3600 Series scanners.
- Type
- DIN-rail-mounted network connection module (not a scanner)
- Connectivity
- Wired (Ethernet)
- Interfaces
- EtherNet/IP, Profinet, Modbus TCP, TCP/IP; ODVA EtherNet/IP and PROFIBUS certifications; IEEE 802.3af compliant
- Power
- 12 VDC or 24 VDC, 1 A
- Mounting
- Wide (120 mm) and narrow (35 mm) DIN rail
- Accessories
- DIN rail brackets
Pricing
For enterprise hardware, price depends on quantity, configuration and service package. Add it to your quote list and we'll price it the same business day.
Use cases
- Connecting 3600 Series scanners directly to a PLC
- Industrial Ethernet integration on the factory floor
- Eliminating third-party converter boxes
- Scanner data on EtherNet/IP, Profinet and Modbus TCP networks
- DIN-rail-mounted installation
Not the right fit for
- Not suited to scanners outside the 3600 Series; the module is designed for 3600 Series scanners.
- Not suited to wireless network connections; it offers Ethernet only.
- Not suited to unlisted protocols such as EtherCAT; only EtherNet/IP, Profinet, Modbus TCP and TCP/IP are supported.
