Zebra DS55 series · Mid range

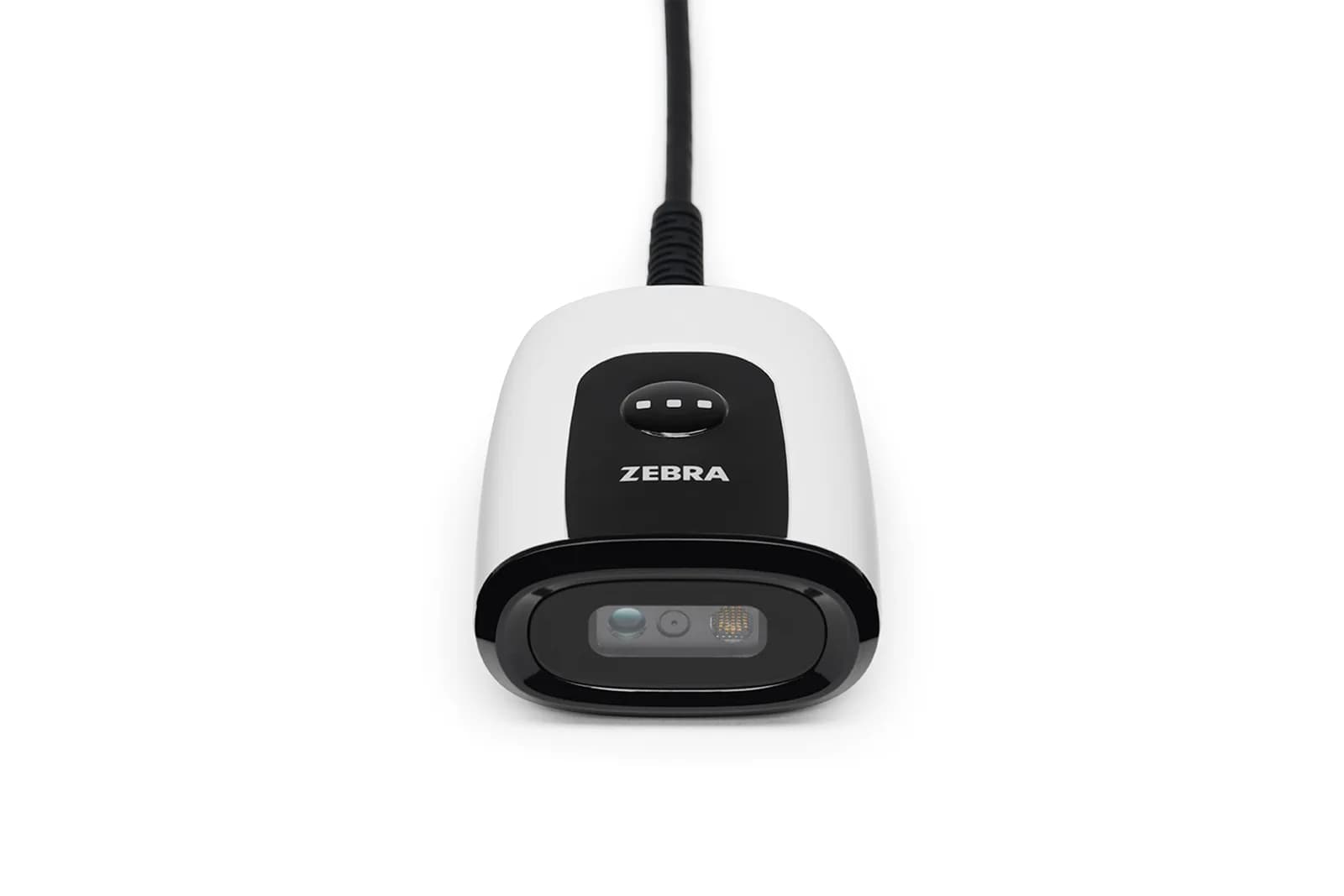

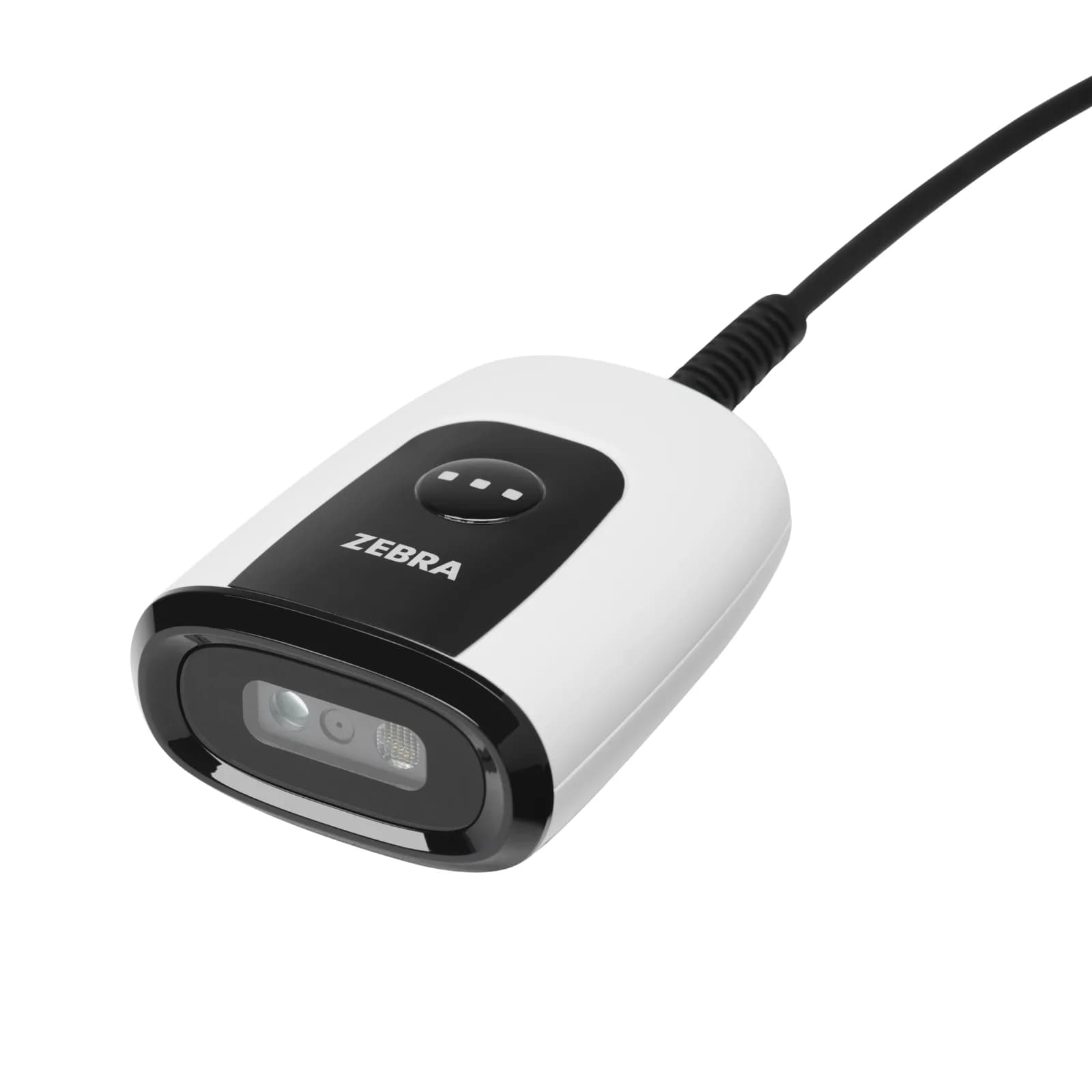

DS5502-LB
A purpose-built, compact fixed-mount scanner for medical labs, pharmacies and patient registration.
The DS5502-LB streamlines clinical workflows, reduces errors and improves patient safety. IP54 protection and a design with no exposed openings make it suitable for frequent wipe-downs. Blood Bag Parse+ parses blood bag data and UDI Scan+ parses medical device UDI information. White illumination makes it easier to read color-coded specimen trays and biopsy cassettes.
- Type
- Fixed mount / hands-free
- Connectivity
- Corded
- Symbologies
- 1D, 2D (incl. SecurPharm), OCR-A/B, MICR, US currency; 1280 x 800 sensor; 48° x 30° field of view; 525 nm green LED aimer; warm white LED
- Read range
- Presentation mode: UPC 13 mil: 4.1–35.6 cm; Code 39 20 mil: 5.1–45.7 cm; Code 128 5 mil: 5.3–21.6 cm; DataMatrix 10 mil: 4.8–24.1 cm; QR 20 mil: 2.3–35.6 cm
- Interfaces
- USB (certified), RS232
- Durability
- IP54; 1.5 m drop to concrete
- Operating temperature
- -20 °C to 50 °C
- Dimensions and weight
- 3.0 x 5.6 x 7.2 cm; 65.2 g
- Lab features
- Alpine White; wipeable housing with no openings; Blood Bag Parse+ and UDI Scan+; Gooseneck Intellistand
- Accessories

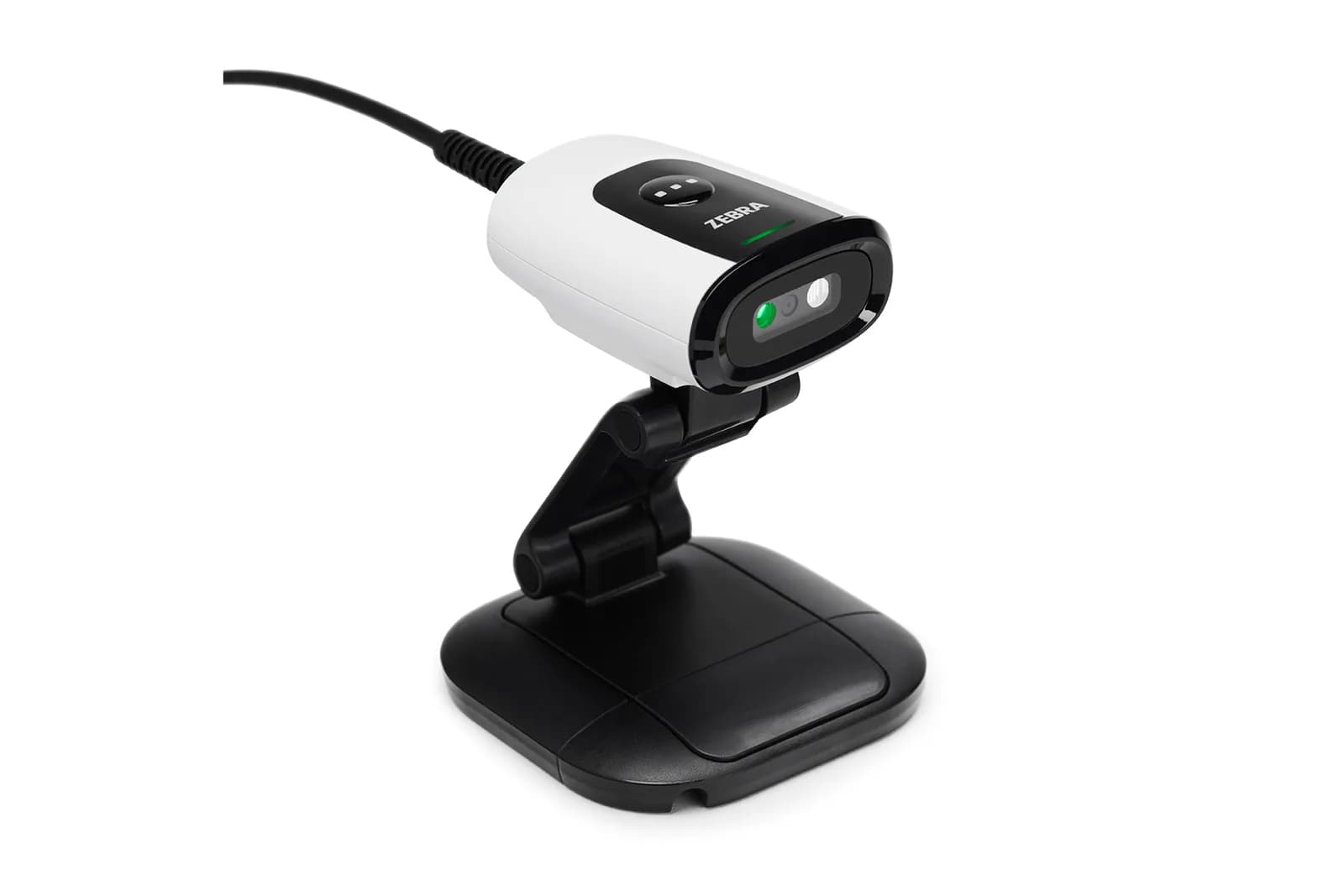

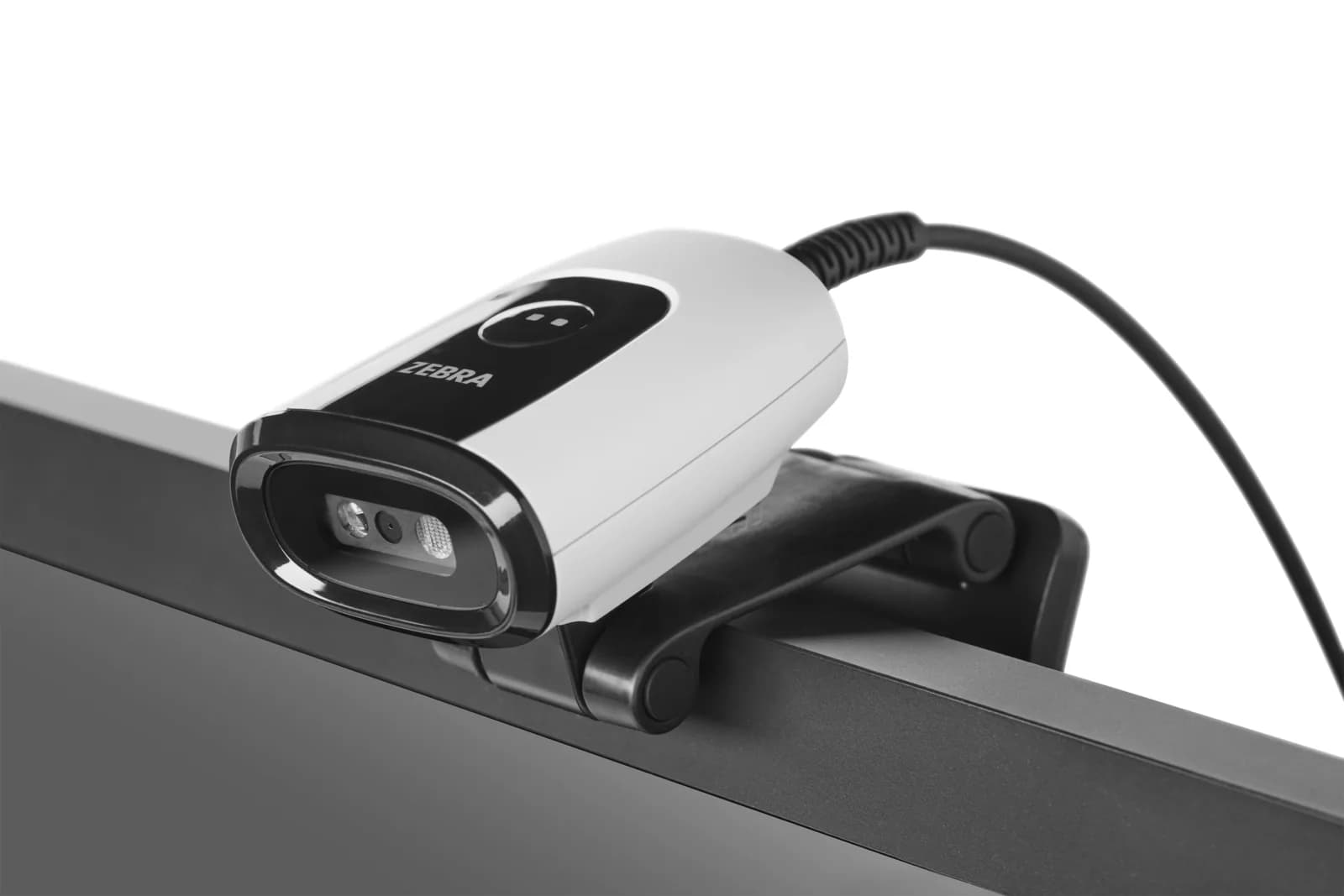

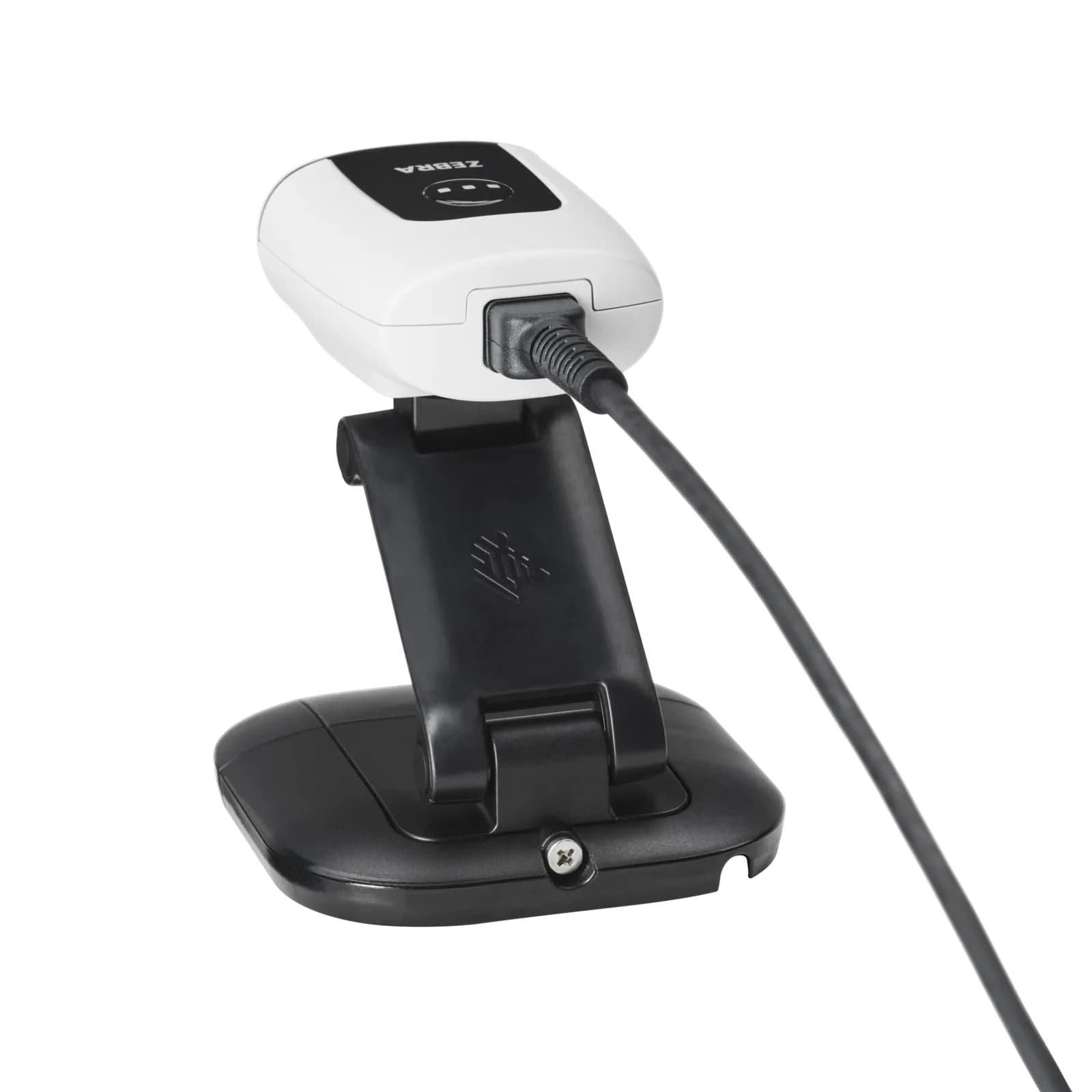

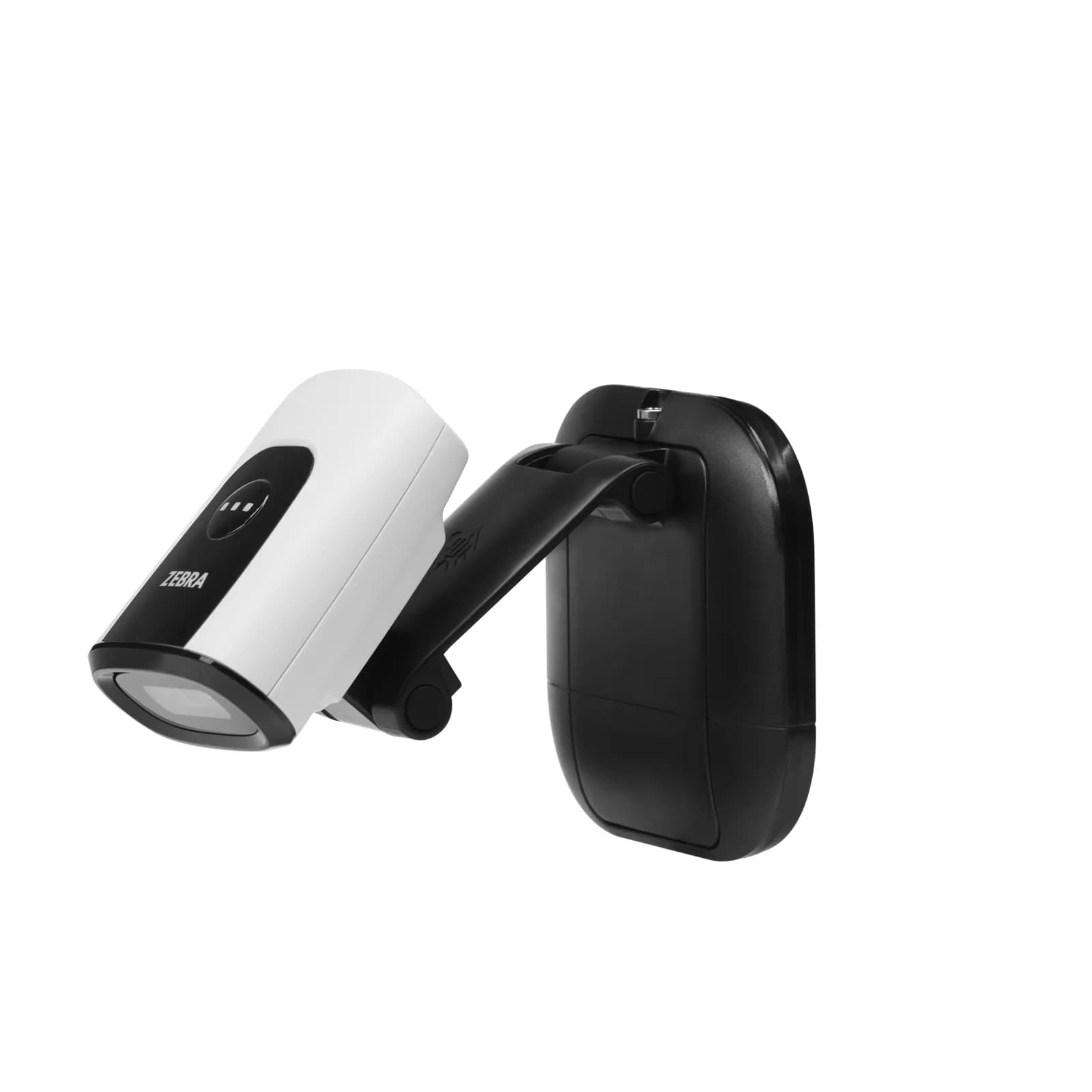

- Gooseneck Intellistand; 3-in-1 mount (PC monitor mount, presentation stand, wall mount); third-party accessories with standard ¼-20 screws
More views
Pricing
For enterprise hardware, price depends on quantity, configuration and service package. Add it to your quote list and we'll price it the same business day.
Use cases
- Medical laboratories
- Specimen tracking
- Pharmacy
- Patient registration
- Parsing blood bag data
- Color-coded specimen trays and biopsy cassettes
Not the right fit for
- Not suited to long-distance scanning; 13 mil UPC codes are read from up to 35.6 cm in presentation mode.
- Not suited to cordless or bedside mobile use; it is a fixed-mount, corded scanner.
- Not suited to liquid immersion or heavy liquid contact; protection is IP54.
